ifm efector StandardLine IO-Link Master

Name: ifm efector StandardLine IO-Link Master
Brand: ifm efector
Price: 383.6 USD
Availability: BackOrder

Starting at $383.60

Effective March 30th, 2026, ifm effector has added an 8% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By ifm efector

Includes

FREE Ground Shipping on orders of $2,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-3 business days

Product Manual Product Specs (8 Files)

Features

20 to 30VDC operating voltage
300 to 3900mA current consumption
Communication interfaces:
- IO-Link revision 1.1
- PROFINET or EtherNet/IP
4 or 8 configurable IO-Link ports:
- 8 or 16 digital inputs (IO-Link Port Class A)
- 4 or 8 digital outputs (IO-Link Port Class A)
Short-circuit protected inputs and outputs
Electrical connections:
- Ethernet: D-coded M12 connector with 4 contacts
- IO-Link: A-coded M12 connector with 4 contacts
- Voltage supply: A-coded M12 connector with 4 contacts
IP65, IP66, IP67 protection rating
IP69K with hygienic models

This product is an accessory for the following products:

ifm efector LI Series Capacitive Point Level Detection Sensor

Point level monitoring in tanks and containers in 132 - 737mm probe lengths .

Starting at $295.40

ifm efector LK Series Electronic Level Sensor

Suitable for water, oils and coolants.

Starting at $595.80

ifm efector LMC Series Point Level Sensor

Oil or water based media.

Starting at $250.00

ifm efector LMT Series Level Sensor

Hygienic design for the requirements of the food and beverage industry.

Starting at $381.50

ifm efector LR Series Guided Wave Radar Sensor

Probe lengths up to 200 cm.

Starting at $895.20

ifm efector LT Series Electronic Level and Temperature Sensor

Reliable level detection in containers and tanks.

Starting at $716.60

ifm efector LW Series Non-Contact Level Transmitter

80 GHz radar technology with accuracy of +/- 2mm (0.08 in) up to 10m (33 ft).

Starting at $1,991.20

ifm efector PA Series Pressure Transmitter

Stainless steel housing for use in harsh industrial environments.

Starting at $329.50

ifm efector PC Series Pressure Transmitter

Detection of the system pressure in mobile machines and industrial applications.

Starting at $170.50

ifm efector PE Series Pressure Sensor

Programmable red/green display.

Starting at $545.80

ifm efector PG Series Pressure Sensor

Manometer connection or flush process connection.

Starting at $645.30

ifm efector PI Series Pressure Sensor

Sanitary, high temp sanitary, and hazardous sensors.

Starting at $724.20

ifm efector PL Series Flush Pressure Transmitter

High shock and vibration resistance.

Starting at $342.30

ifm efector PM Series Flush Pressure Sensor

Offers 0.2% accuracy and is ideal for sanitary applications.

Starting at $622.30

ifm efector PN Series Pressure Sensor

Clearly indicate the acceptable ranges via programmable red/green display.

Starting at $433.10

ifm efector PS Series Hydrostatic Submersible Pressure Transmitter

Versions with ATEX, IECEx and GL approval.

Starting at $748.80

ifm efector PT Series Pressure Transmitter

Measuring accuracy < ± 0.5%, repeatability < ± 0.05%.

Starting at $167.90

ifm efector PU Series Pressure Transmitter

Stainless steel housing withstands high shock and vibration installations.

Starting at $163.40

ifm efector PV Series Pressure Transmitter

Stainless steel pressure sensor with vacuum ranges starting at -14.5 to 145psi, to gauge ranges from 0 to 8700psi. Variable process connections, with PNP/NPN and IO-Link output signaling.

Starting at $192.30

ifm efector PX Series Pressure Transmitter

Pressure sensor with ceramic capacitive measuring cell. Vacuum ranges starting at -14.5psi, to gauge ranges up to 5000psi. Analog signaling.

Starting at $332.70

ifm efector PY9 Series Pressure Transmitter

Pressure sensor for homogenizer processes, with pressure range up to 8700psi. Analog signaling and digital outputs, IO-Link and LED display.

Starting at $1,196.50

ifm efector SB Series Flow Sensor

Reliably detect the flow rate of water and oils.

Starting at $478.50

ifm efector SF Series Flow Sensor

Reliable monitoring of liquids and/or gases in pipes.

Starting at $666.20

ifm efector SP Series Flow Sensor

Monitoring of liquids and gases in pipes in hazardous areas.

$392.30

ifm efector TA2 Series Temperature Transmitter

Compact Pt1000 temperature sensor with IP69K hermetically sealed 316 SS construction. Analog signaling, IO-Link and status LED.

Starting at $243.40

ifm efector TCC Series Temperature Transmitter

Dual sensor temperature transmitter with IP69K hermetically sealed 316 SS construction. Analog signaling, IO-Link and LED digital display.

Starting at $495.80

ifm efector U4 Series Flow Sensor with Evaluation Unit

Complete set including SF6200 flow sensor and SN0150 control monitor, for flow, temperature and wire monitoring applications.

$596.70

ifm efector US Series Flow Sensor

With evaluation unit.

$629.90

ifm efector VTV Series Vibration Transmitter

MEMS Vibration transmitter with 1 analog output, 0 to 50mm/s measurement ranges, 10 to 1000Hz frequency range, and cULus or ATEX approvals.

Starting at $342.90

ifm efector VVB Series Vibration Sensor

1 or 3-axis monitoring with automated alerts.

Starting at $505.00

ifm efector VW Series Wireless Vibration Sensor

Reliable and intermittent monitoring of the total vibration according to DIN ISO 10816.

$331.60

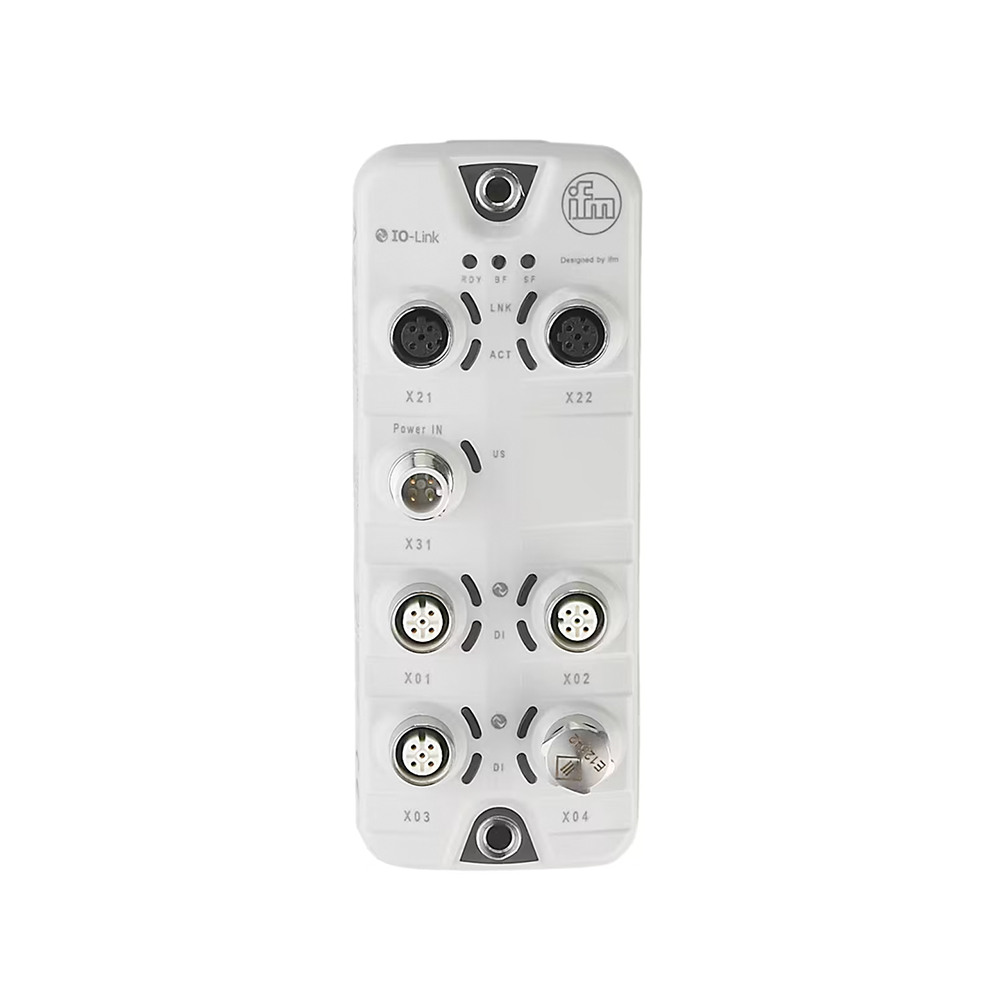

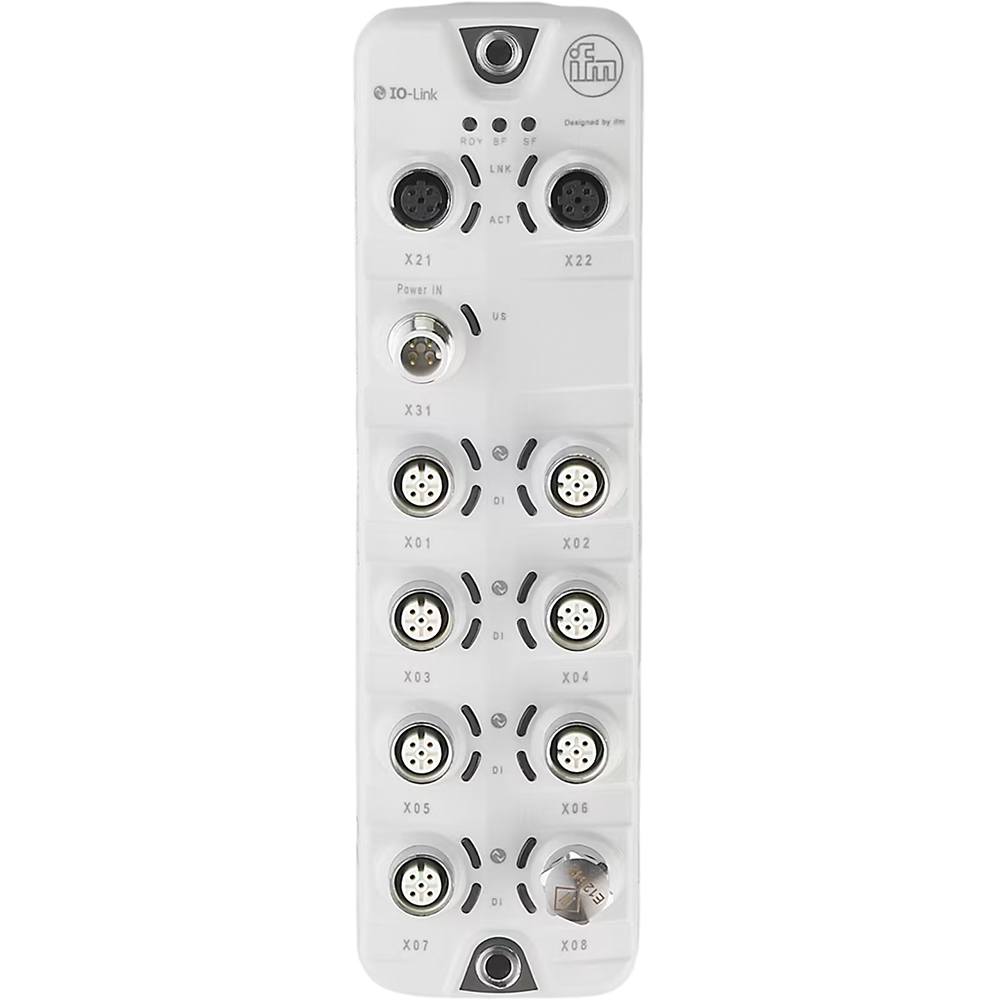

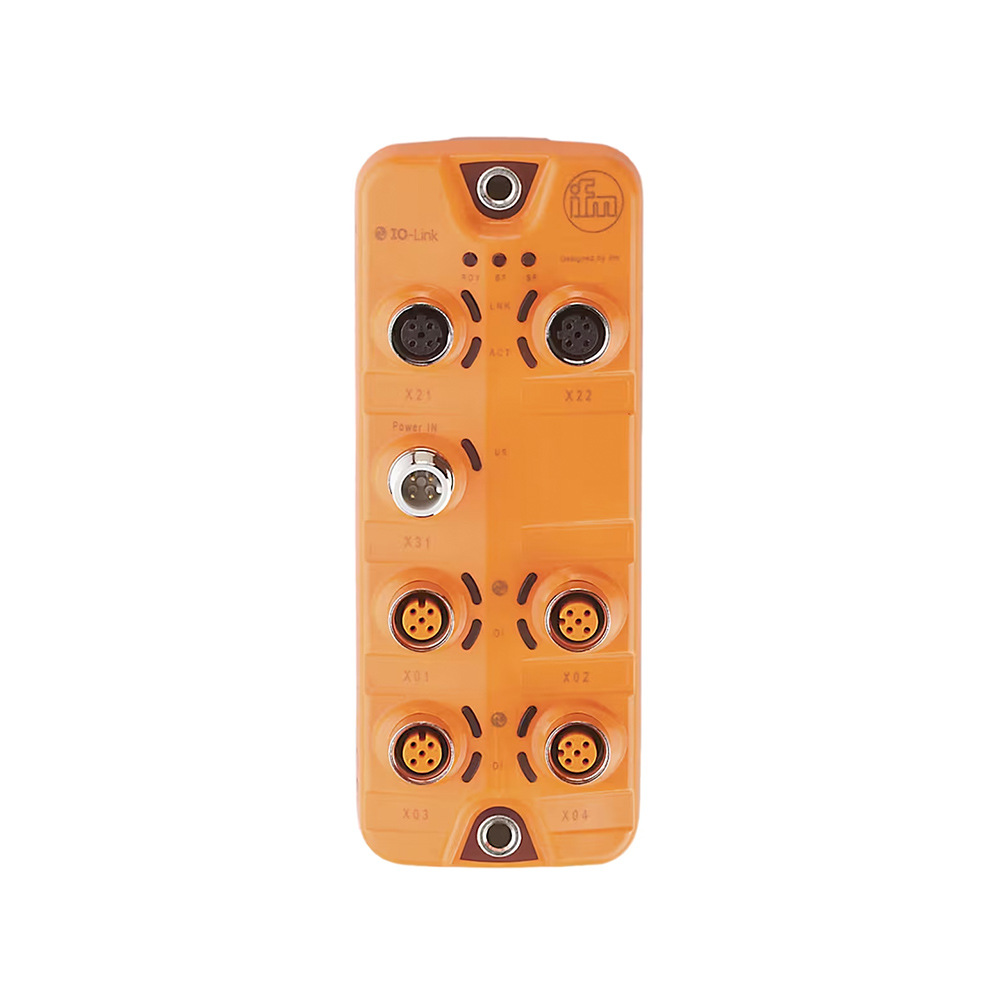

The ifm efector StandardLine IO-Link Master enables the connection of up to eight IO-Link devices, including sensors, valves, or binary input/output modules. It reliably transmits machine data, process parameters, and diagnostic data to the controller. The StandardLine models include an IO-Link interface, a PROFINET or EtherNet/IP interface, and have 4 or 8 configurable ports for connecting input and output devices. Select ports are designed as B ports and supply auxiliary energy, allowing the connection of IO-Link actuators.

The StandardLine IO-Link Master offers excellent electromagnetic stability, a wide temperature range, a high protection rating, and a robust housing, making it suitable for harsh industrial environments and the food industry. All models feature A-coded M12 IO-Link and voltage connections. The industrial model has a D-coded M12 Ethernet electrical connection with FKM seals; meanwhile, the hygienic model has an Ethernet connection with EPDM seals.

The IP69K StandardLine masters feature 316 stainless steel hardware to withstand the harsh environment. The housing of these hygienic models is convex, providing better cleaning angles and mounting offsets. This prevents particles and bacteria from becoming trapped during cleaning processes.
