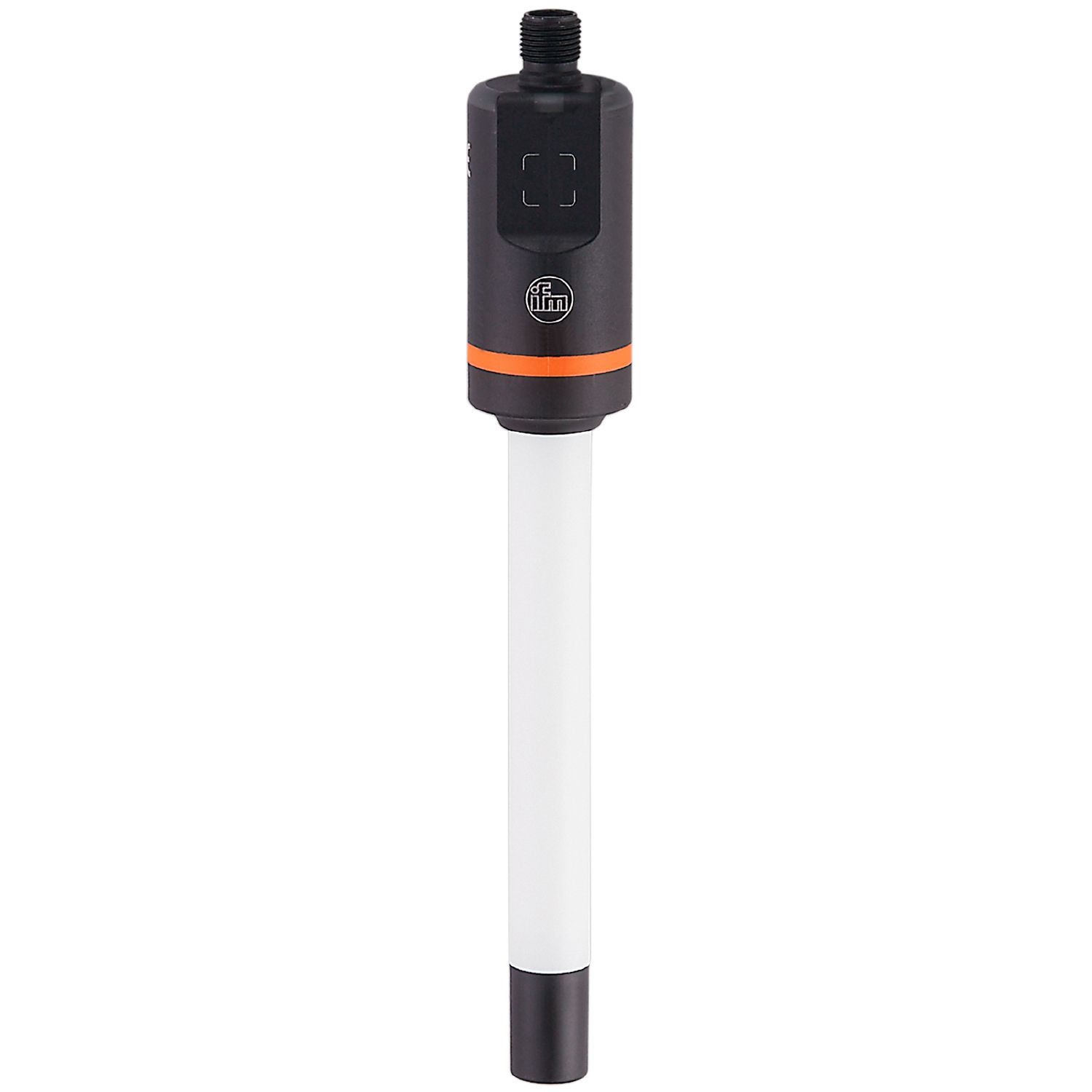

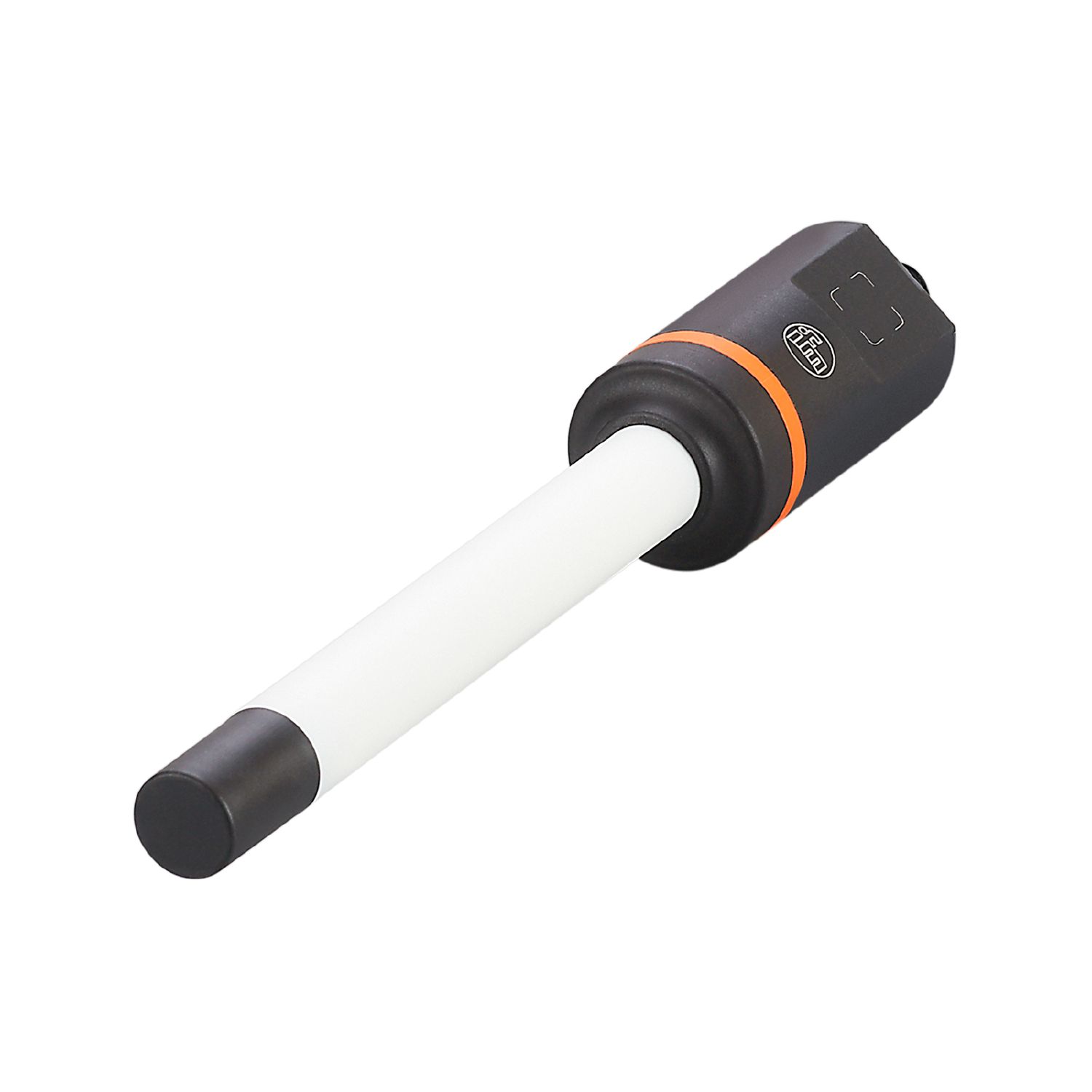

ifm efector LI Series Capacitive Point Level Detection Sensor

Point level monitoring in tanks and containers in 132 - 737mm probe lengths .

Starting at $289.50

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs (7 Files)

Features

  • 2 digital outputs
  • > 1.8 dielectric constant of the medium
  • -13 to 185°F medium temperature
  • 0.5 bar / 0.05MPa pressure rating
  • 9.6 - 35 DC; (IO-Link: 18 - 30 DC) operating voltage
  • < 15 mA current consumption
  • 28mm active range A
  • < 0.3 response time
  • Protects against overflow / run dry
  • Top down mounting
  • Visual output indication

The ifm efector LI Series Capacitive Point Level Detection Sensor is factory-configured for water-based media and suitable for oils and oil-based media applications. Constructed from fiber-reinforced polypropylene with wetted parts also in PP, the sensor offers robust environmental protection rated at IP68/IP69K, capable of withstanding 7 days at 3m water depth. It can handle pressures up to 0.5 bar and vacuum conditions down to -500 mbar.
