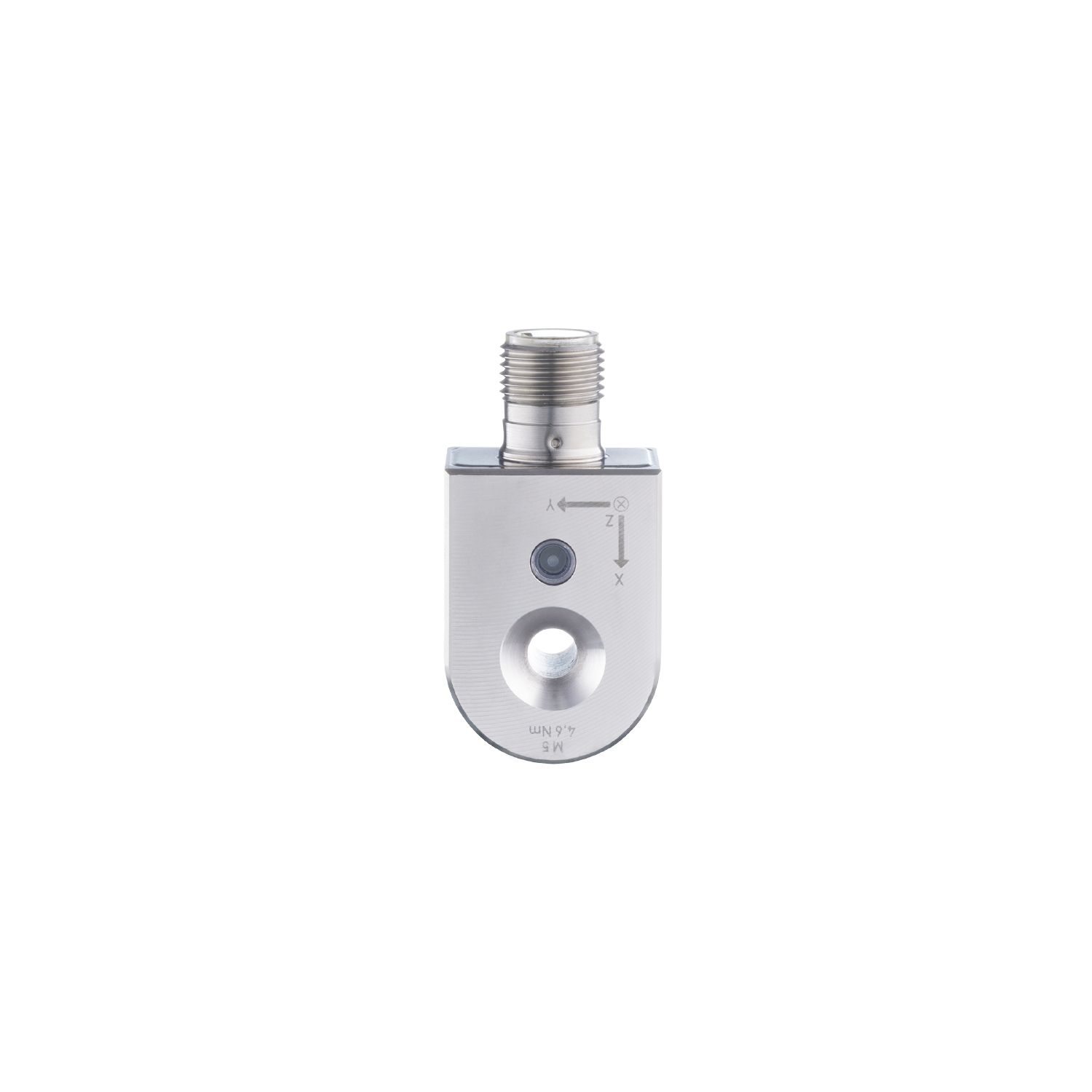

ifm efector VVB Series Vibration Sensor
1 or 3-axis monitoring with automated alerts.
Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By ifm efector
Overview
Features
- 2 to 10000 Hz frequency range (1-axis)
- 2 to 5600 Hz frequency range (3-axis)
- 0 to 45 mm/s, 0 to 0.3 m/s, and 0 to 300 mm/s vibration ranges
- Set (1-axis) or mounting screw (3-axis)
- Asynchronous transmission of raw data (BLOB)
- User-friendly communication and parameterization via IO-Link
Description
The ifm efector VVB Series Vibration Sensor 1-Axis offers industrial-grade machine protection that integrates directly into your existing control platform. Machine condition is continually monitored for common fault conditions of impacts, component fatigue, and friction. This allows timely and predictable scheduling of maintenance before major damage or failure and production downtime. Machines are continuously and permanently protected, unlike when using intermittent single measurement monitoring systems.
The ifm efector VVB Series Vibration Sensor 3-Axis continuously detects vibration in three axes and additionally measures the surface temperature of non-rotating components. From these values, the smart sensor continually monitors the operating condition of the machine. With its wide frequency range of 5,600 Hz, the sensor can detect anomalies, wear, bearing damage, insufficient lubrication or cavitation reliably and early.
