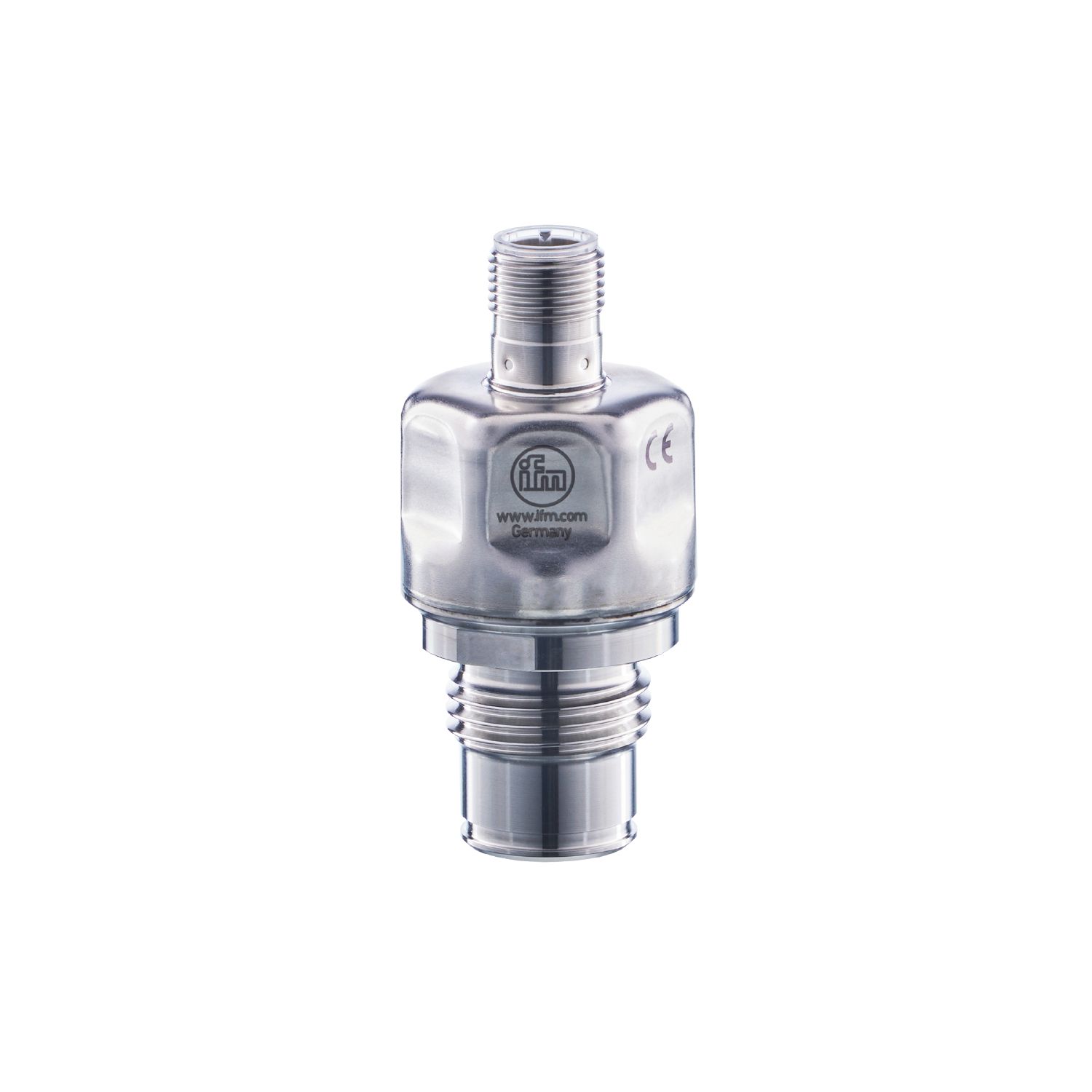

ifm efector PL Series Flush Pressure Transmitter
High shock and vibration resistance.
Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By ifm efector
Overview
Features
- 1 or 2 outputs
- -13 to 230°F medium temperature (PL1's)
- -4 to 194°F medium temperature (PL5's)
- Resistant to pressure peaks and vacuum
- Flush mount installation in containers, tanks and pipes
- Industry standard M12 connection
- Compact stainless steel housing
- FKM or EPDM seal
- Various measuring ranges
Description
The ifm efector PL Series Flush Pressure Transmitter offer a flush-mounting design to prevent clogging when used with high viscosity media and media with suspended solids. They provide a flexible sealing concept for new and existing installations.
The PL1's are suitable for pressure ranges under 2,320 psi and offer a G 1/2 external thread connection. IO-Link provides additional process data, including temperature. The ceramic measuring cell provides high overpressure rating and chemical compatibility for harsh environments and media.
The PL5's are only recommended for applications over 2,320 psi and when a 1/4in connection is required. Features a stainless steel measuring diaphragm for reliable performance in harsh media.
