ifm efector LT Series Electronic Level and Temperature Sensor
Reliable level detection in containers and tanks.
Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By ifm efector
Overview
Features
- 264, 472, and 728 mm probe lengths
- 4 digital outputs or 1 digital, one analog
- > 2 dielectric constant of the medium
- 18 to 30 DC operating voltage
- < 50 current consumption
- 32 to 158°F medium temperature - oil
- 32 to 95°F medium temperature - water
- For use in water, oils and coolants
- Clearly visible numerical display
Description

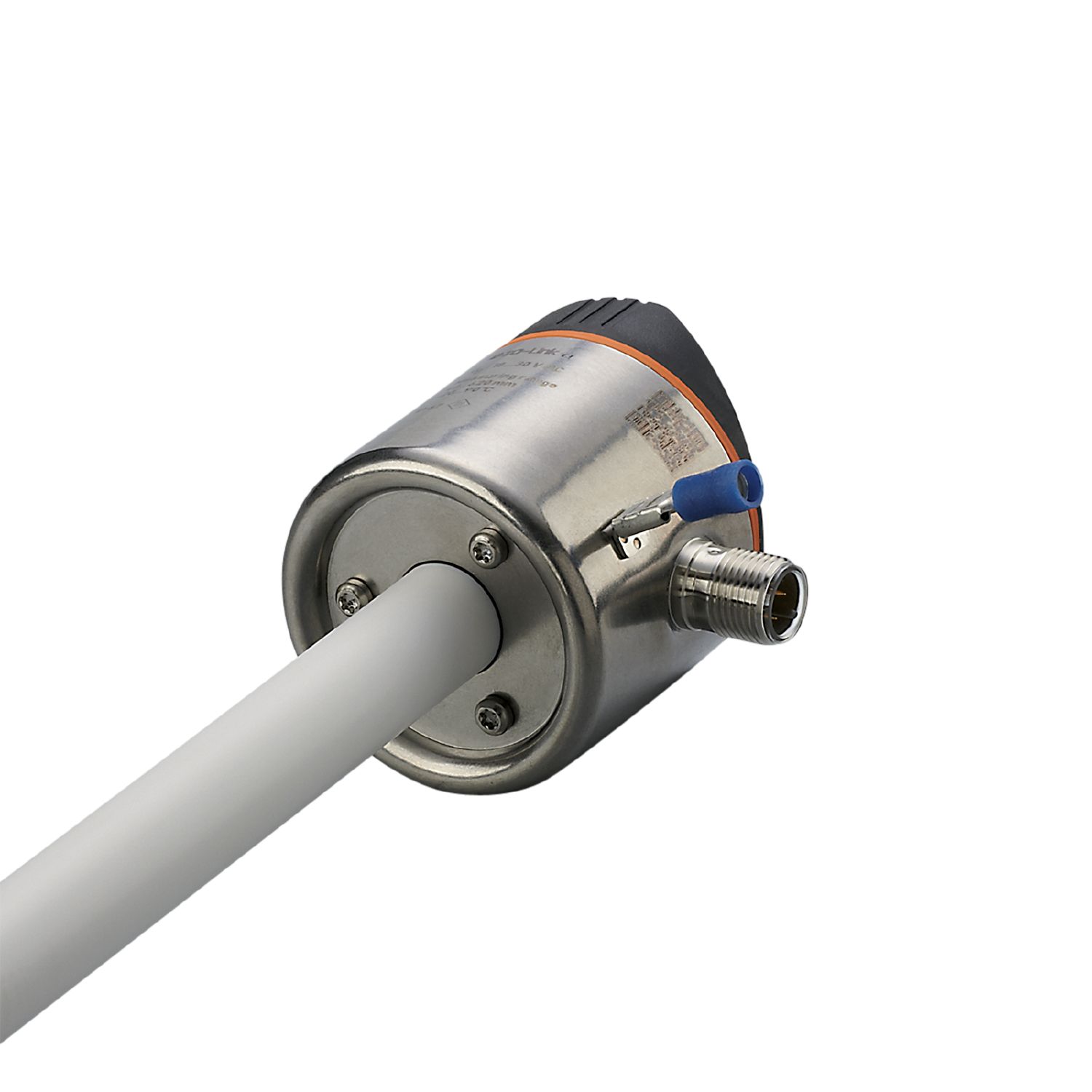

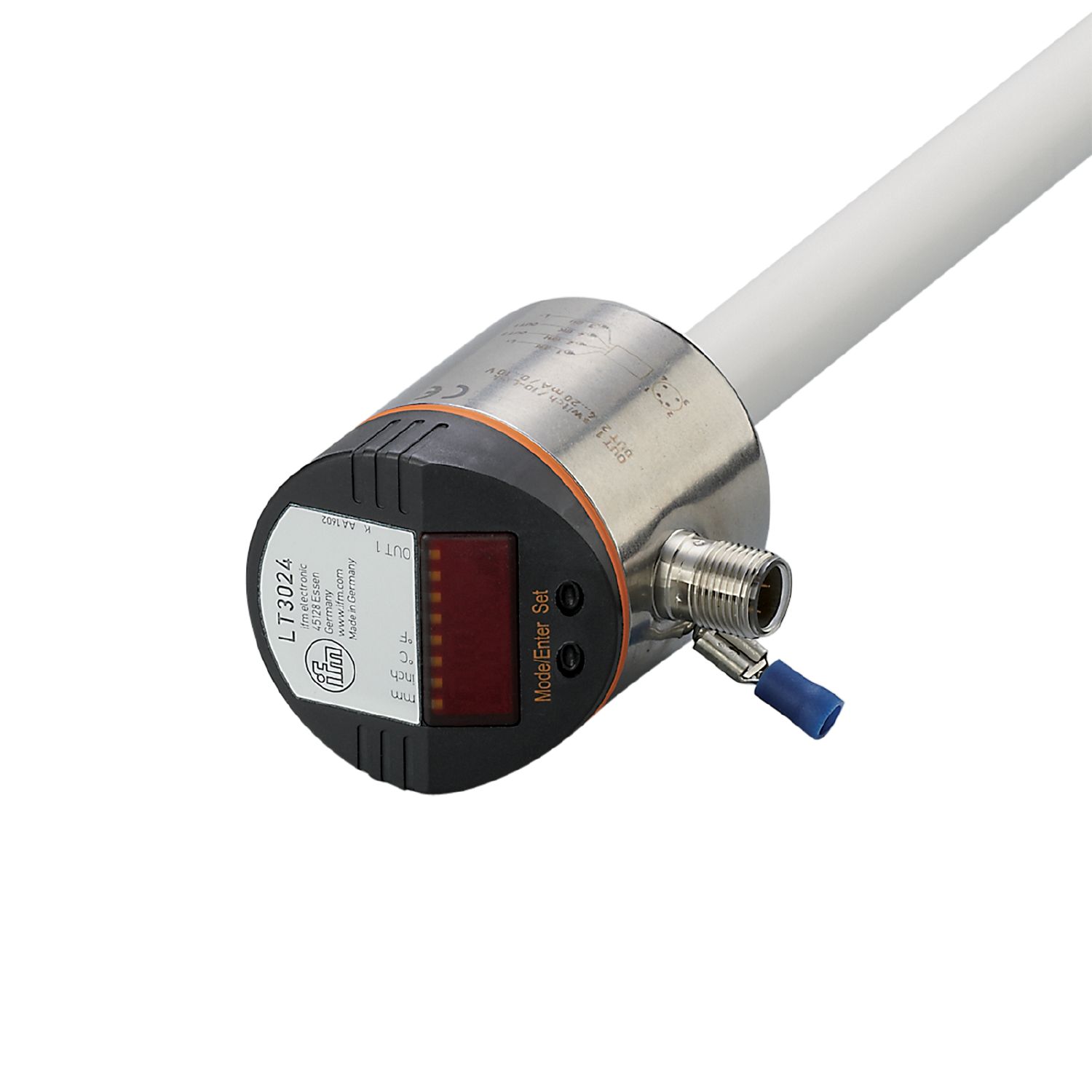

The ifm efector LT Series Electronic Level and Temperature Sensor features capacitive measuring technology housed in a stainless steel probe with a 16mm diameter, equipped with a 4-digit alphanumeric display and programmable buttons for on-site configuration. These sensors are suitable for monitoring hydrous coolants, oils, oil-based media, water, and similar fluids with a dielectric constant greater than 2, operating within a voltage range of 18 to 30 VDC with current consumption below 50 mA and reverse polarity protection. They also feature thermal and pulsed short-circuit protection with a power-on delay time of less than 3 seconds.
Documents
Spec Sheets
- LT Series Electronic Level and Temperature Sensor Datasheet LT3022 (347 KB)
- LT Series Electronic Level and Temperature Sensor LT3023 (347 KB)
- LT Series Electronic Level and Temperature Sensor LT3024 (347 KB)
- LT Series Electronic Level and Temperature Sensor LT8022 (348 KB)
- LT Series Electronic Level and Temperature Sensor LT8023 (348 KB)
- LT Series Electronic Level and Temperature Sensor LT8024 (348 KB)
