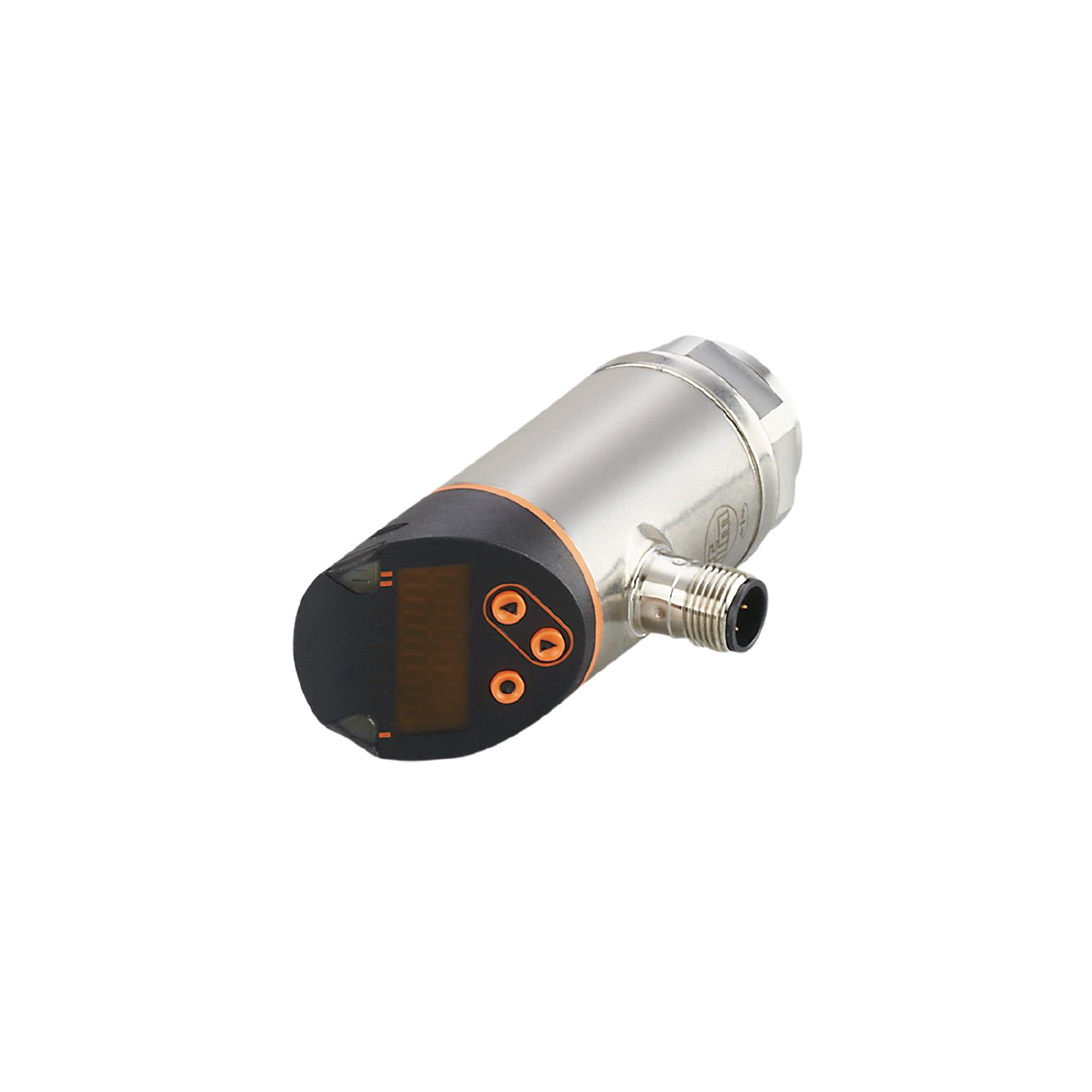

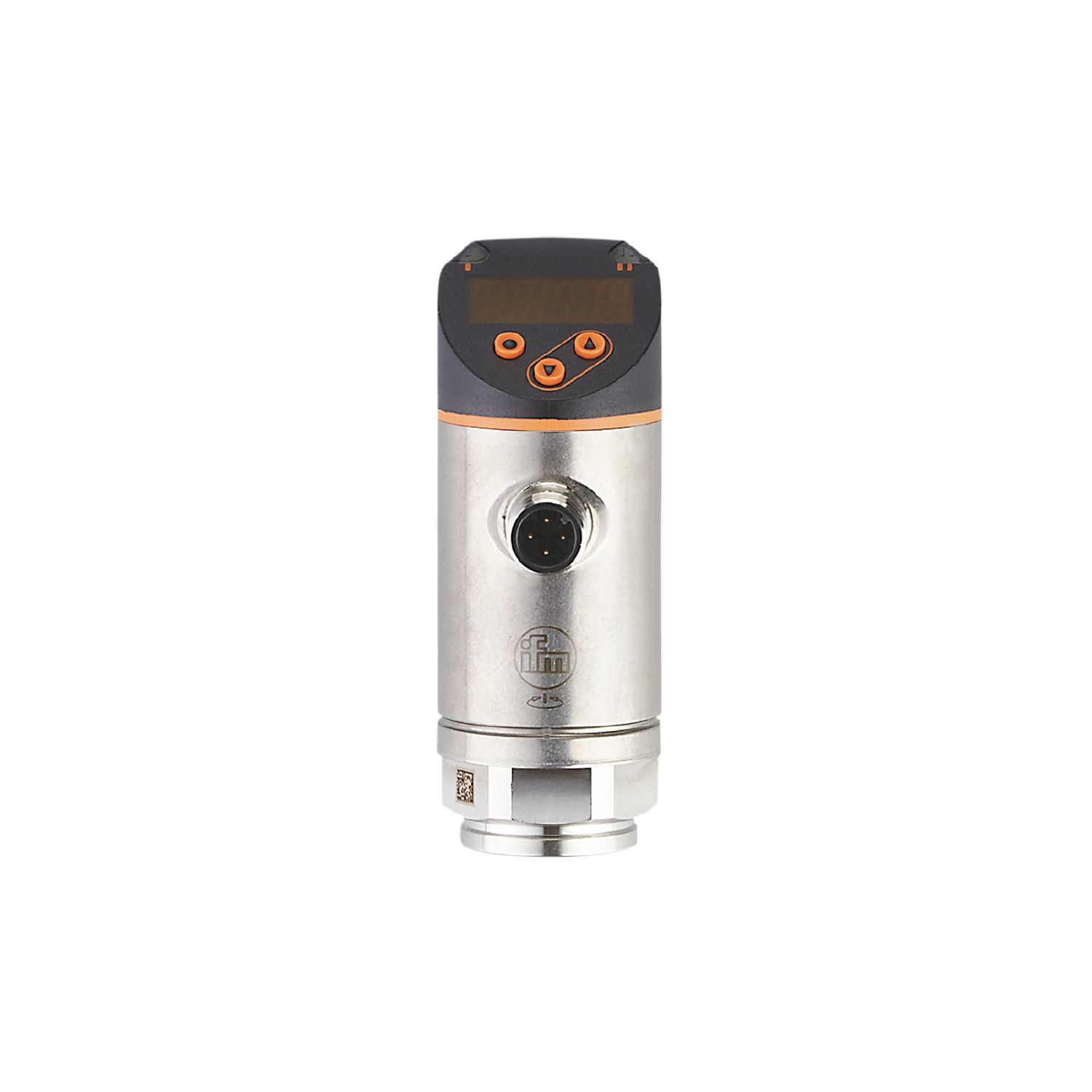

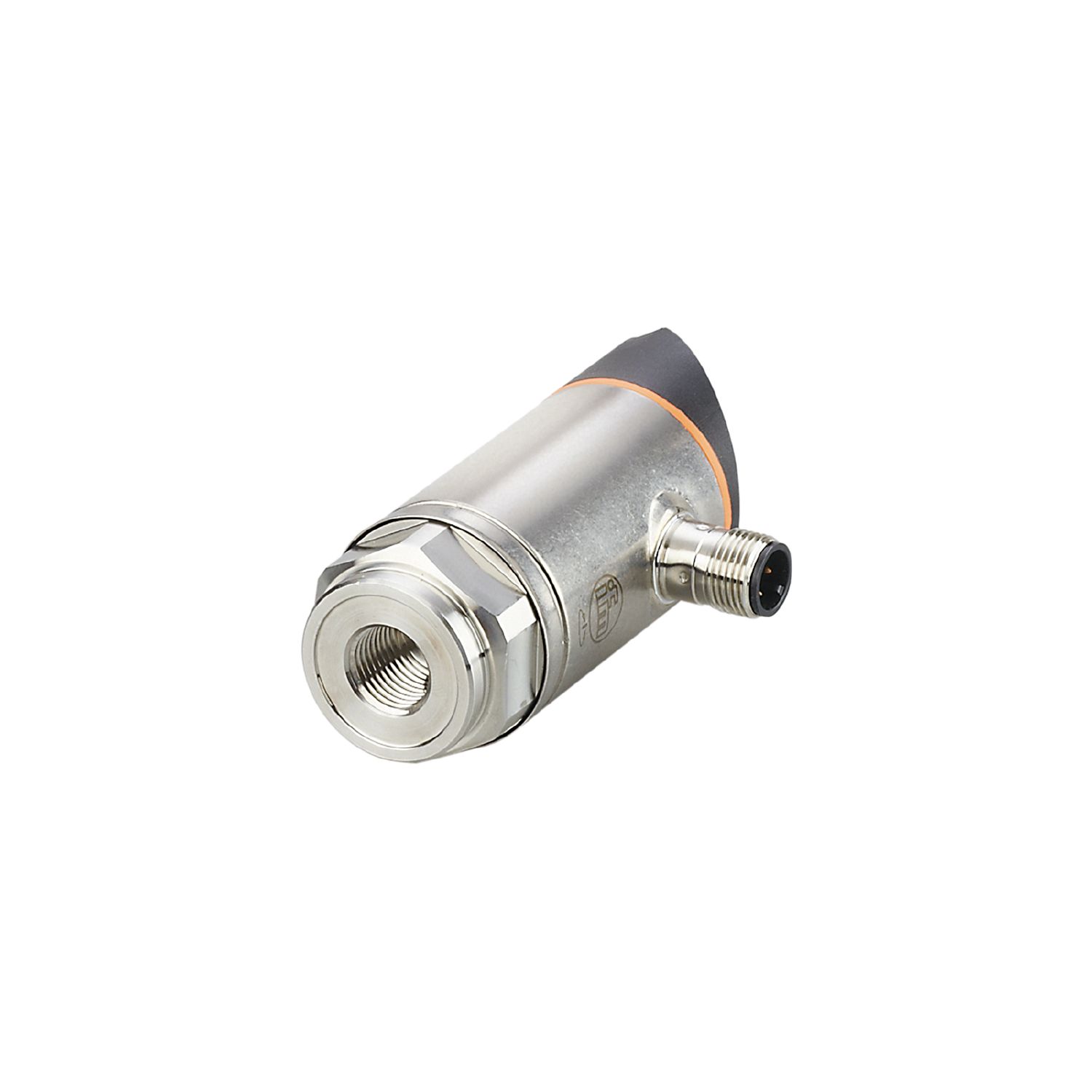

ifm efector PE Series Pressure Sensor

Programmable red/green display.

Starting at $535.00

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs (12 Files)

Features

  • -14.5 to 3625 psi measuring ranges
  • -13 to 176°F medium temperature
  • 2 switching outputs
  • G 1/4 internal thread or G 1/4 external thread process connections
  • Clearly visible indication of the switching status
  • Permanently legible laser type label

The ifm efector PE Series Pressure Sensor offers a high protection rating and captive laser labelling to ensure reliable operation of the sensors, even in in harsh industrial environments. The ceramic-capacitive measuring principle with a special support of the measuring diaphragm makes the sensors immune to overload operation and high pressure peaks, ensuring long-term stability.
Set-up, maintenance and operation are facilitated by a 4-digit LED display, which is visible from all sides even at greater distances, and two switching status LEDs on the sensor head. The display can be switched from the indication of “red” to an alternating indication of “red – green”. Switching states can be highlighted or an independent color window can be created.
The screwed-on sensor can be rotated in any direction. Mounting brackets allow installation in any position.
