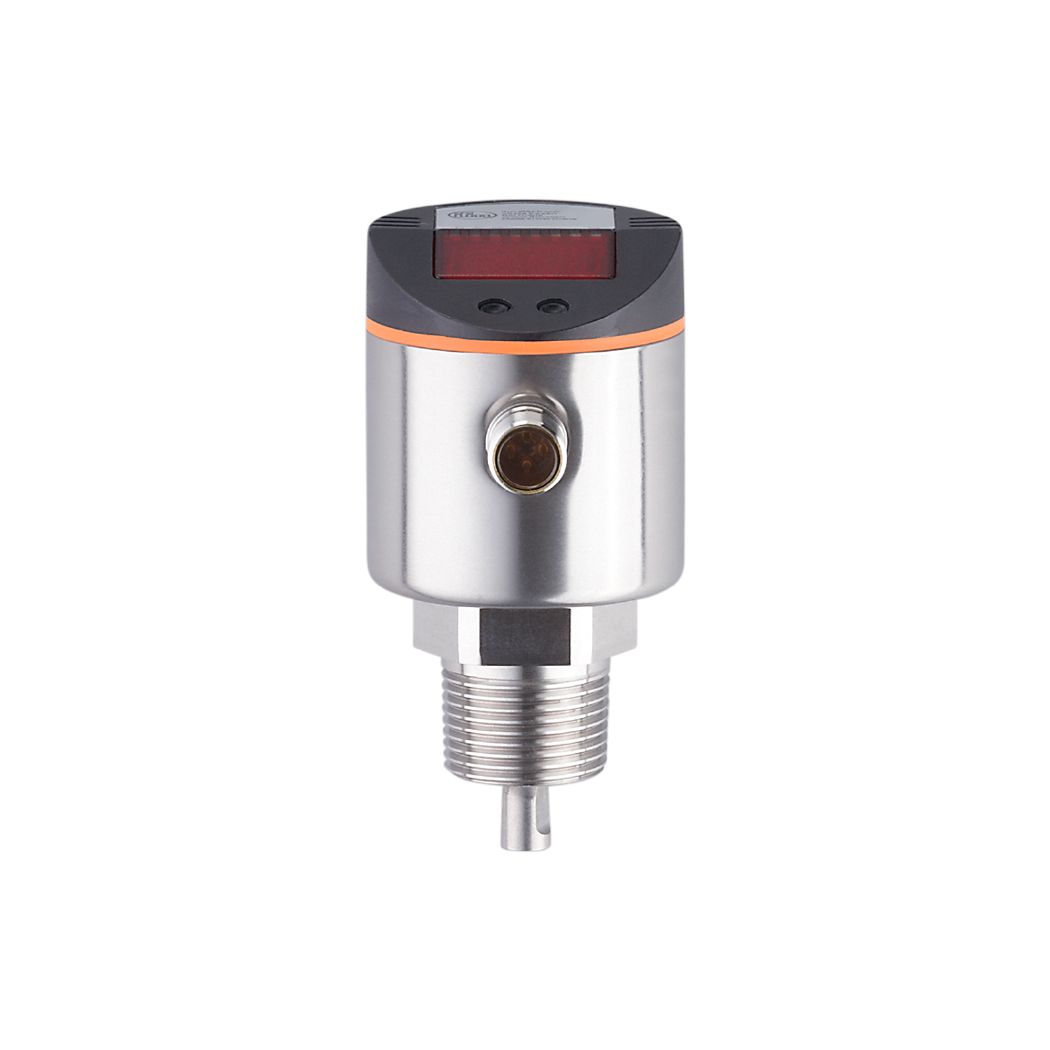

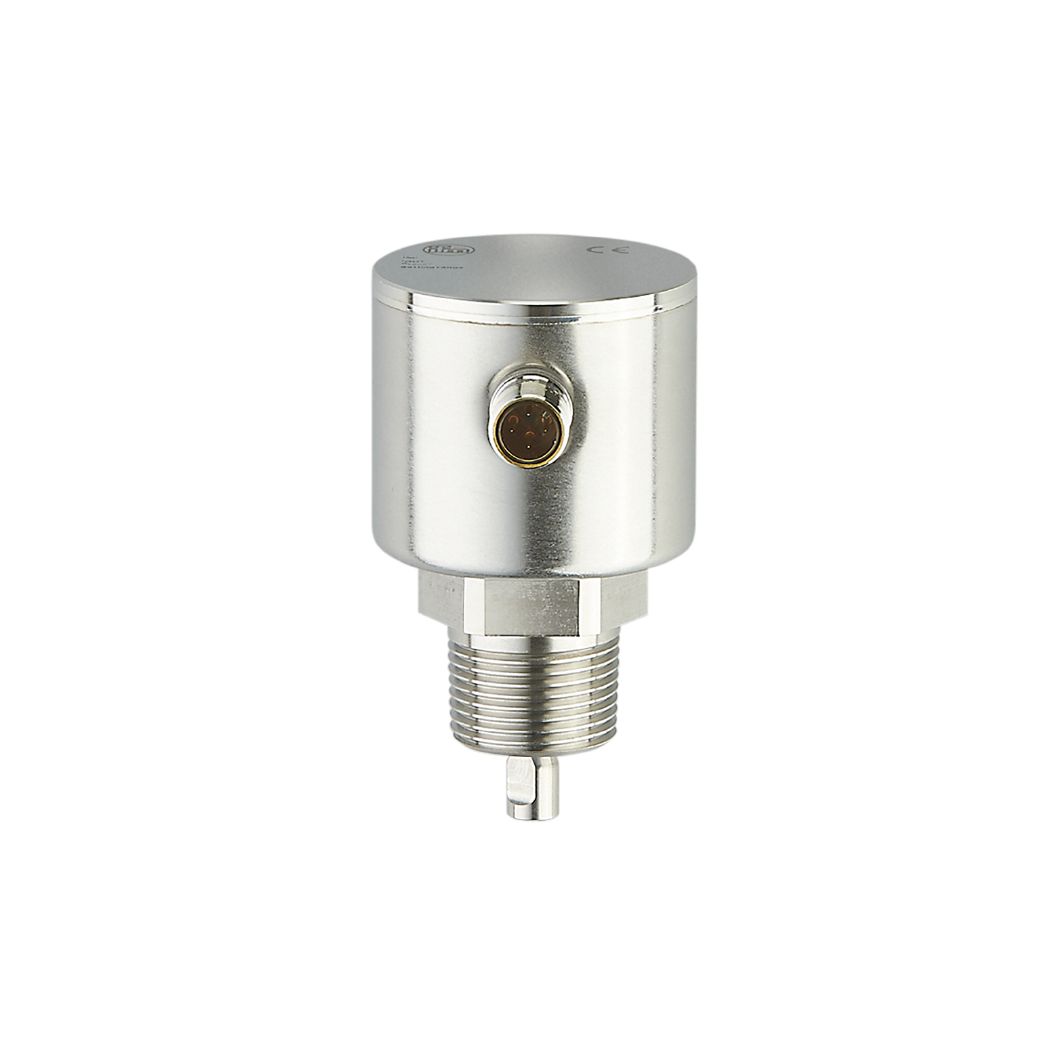

ifm efector LR Series Guided Wave Radar Sensor

Probe lengths up to 200 cm.

Starting at $877.50

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs (16 Files)

Features

  • 100 to 2000 mm probe lengths
  • 1 to 4 outputs
  • 18 to 30 DC operating voltage
  • 4 Hz sampling rate
  • 15 to L-30 mm set point SP
  • > 5 mm hysteresis
  • Versions with two or four switching outputs or analog output
  • Probes may be cut to length for application flexibility
  • Clearly visible LED display

The ifm efector LR Series Guided Wave Radar Sensor operates to the principle of guided wave radar and measures the level using electromagnetic pulses in the nanosecond range. It is suitable for continuous level monitoring of almost all liquids, including aqueous media, coolants, cleaning liquids and oils.
The sensor is directly mounted in the tank using a process connection or flange plate. If necessary, the probe can be easily shortened and adapted to the tank by the user.
Setting of all parameters as well as programming of the switch points and indication of the current level are carried out via programming buttons and a 4-digit alphanumeric display. The sensor can also be configured via IO-Link, e.g. using a USB interface. The moneo configure software is used to visualize, transfer and archive parameter sets.
