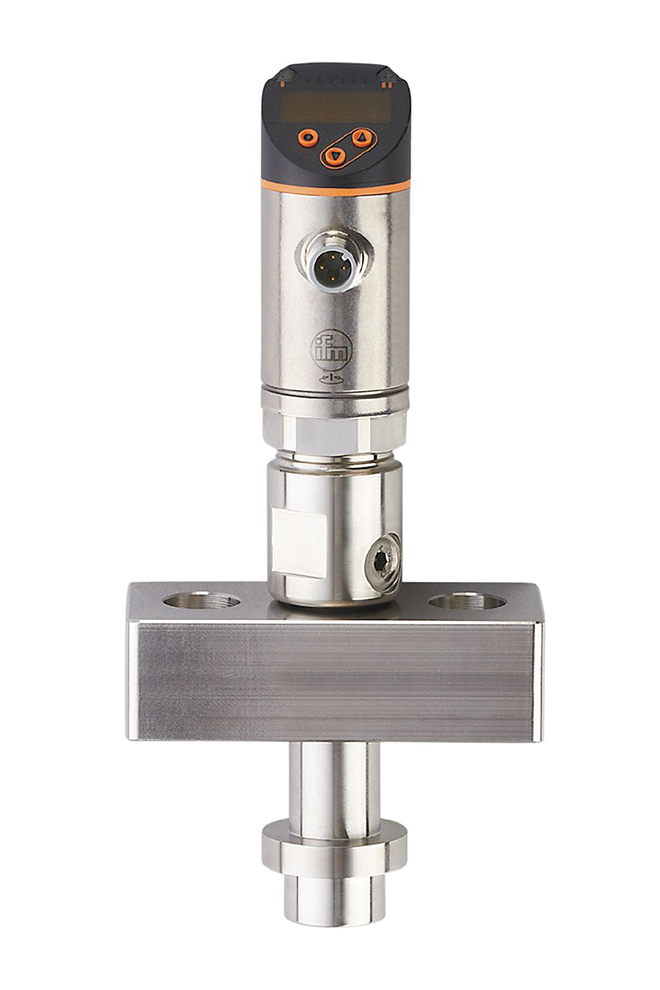

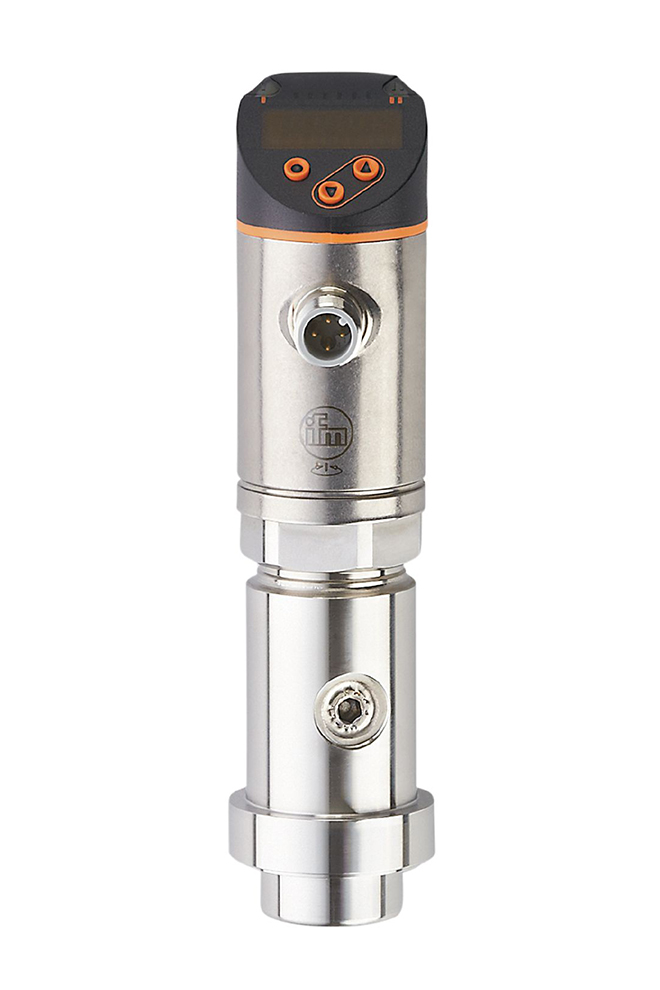

ifm efector PY9 Series Pressure Transmitter
Pressure sensor for homogenizer processes, with pressure range up to 8700psi. Analog signaling and digital outputs, IO-Link and LED display.
Starting at
$1,173.00
Effective March 30th, 2026, ifm effector has added an 8% surcharge to this product. The surcharge will appear as a separate line item on the order.
Manufactured
- By ifm efector
Includes
Availability
Overview
Features
- Measuring range(s): up to 8700psi
- Process connections: homogenizer
- Medium temperature range: 41 to 257°F
- Can withstand up to 302°F for 1hr
- Response time: < 1.5ms
- Output signal: 4 to 20mA, 0 to 10V
- Switching output: PNP/NPN
- IO-Link communication
- Accuracy: switchpoint ±0.4% of span
- LED Display included
- Connector: 1 x M12; coding: A; contacts: gold-plated
- IP67 protection
Description
The ifm efector PY9 Series Pressure Transmitter reliably detects the system pressure in industrial applications involving homogenizer processes with ranges from 0 up to 8700psi. Units offer a rotatable process connection for flexible integration. The integrated LED display offers user friendly status readings. 0 to 10V, and 4 to 20mA analog outputs available with each model. The PY9 Series features PNP/NPN switching and IO-Link connection.
