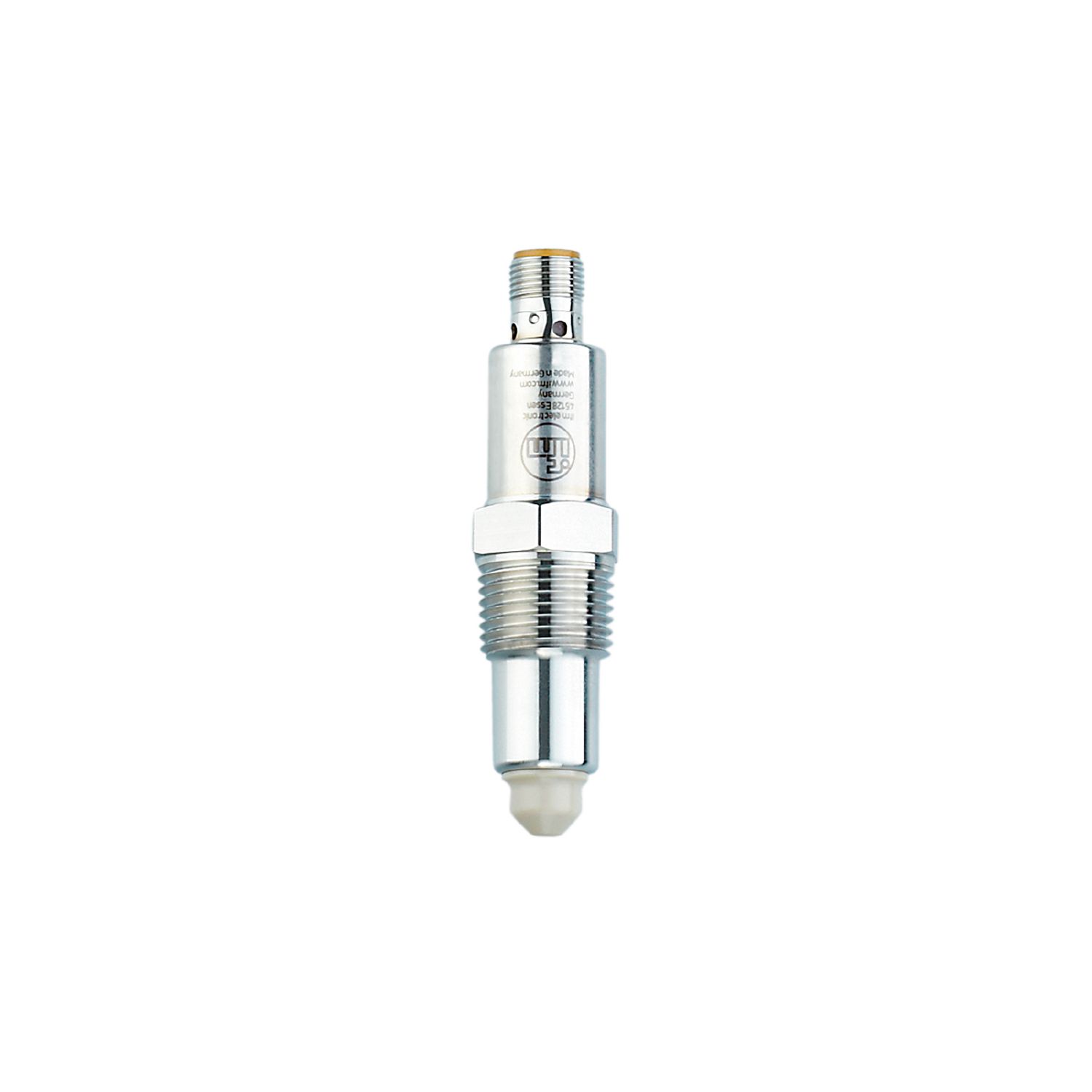

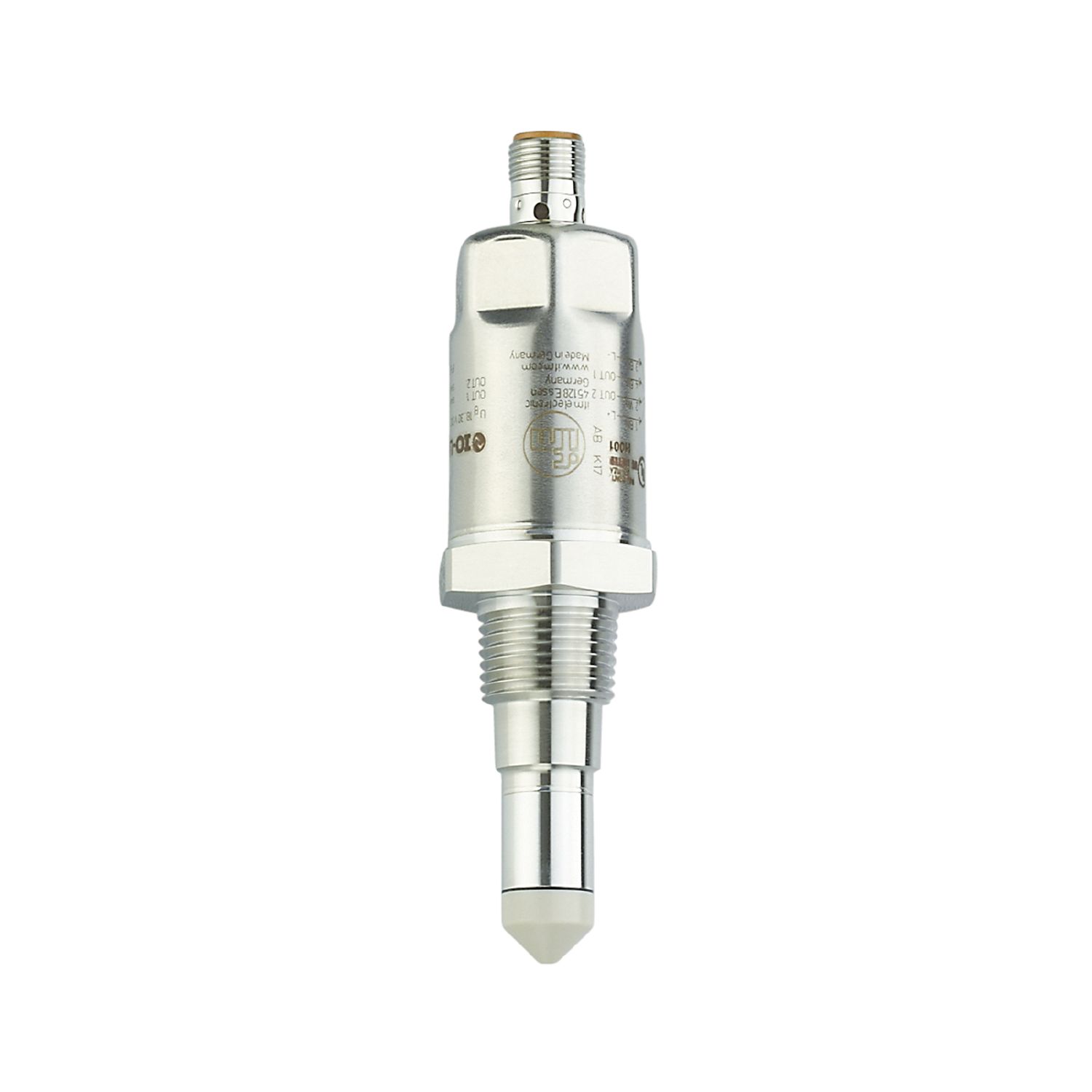

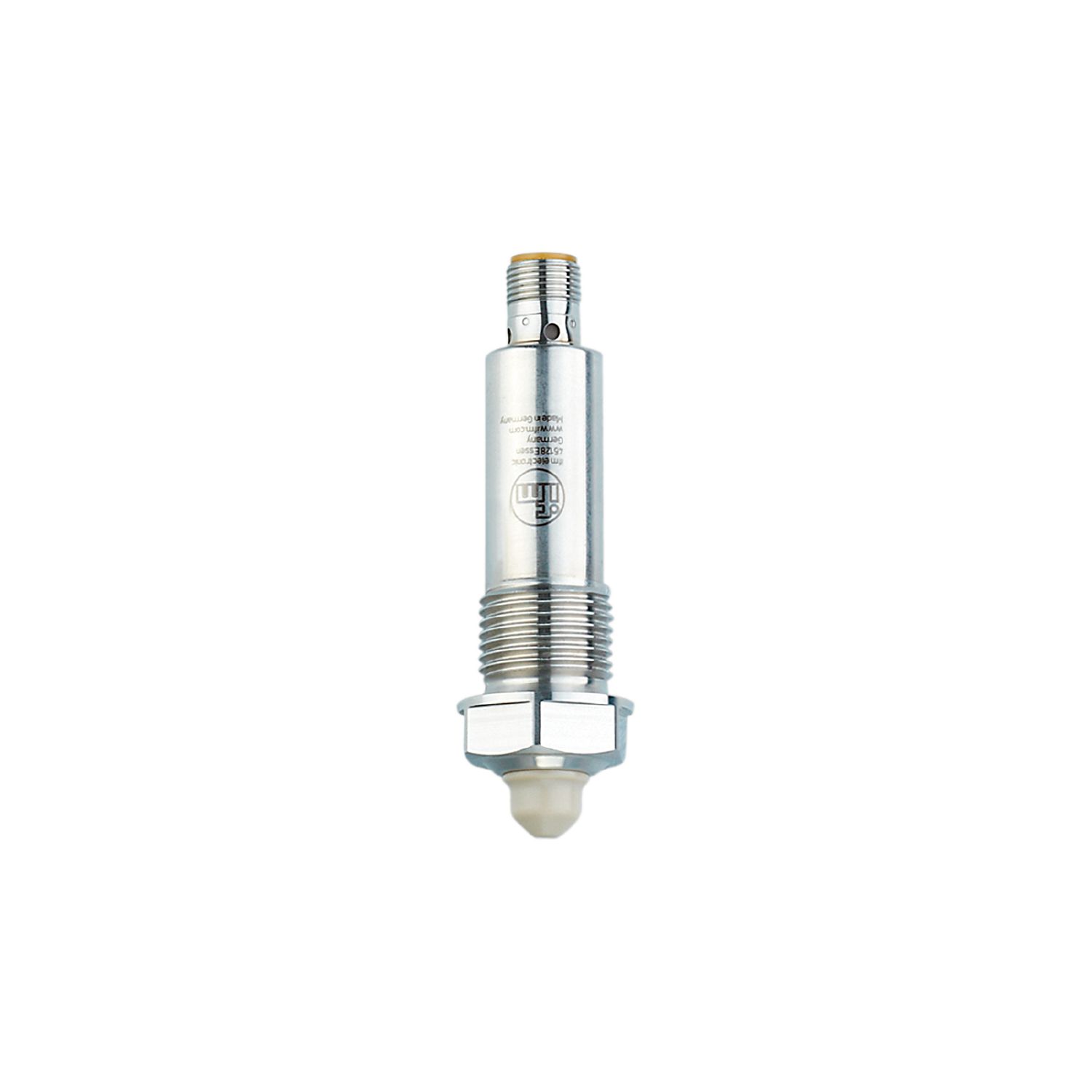

ifm efector LMC Series Point Level Sensor

Oil or water based media.

Starting at $245.00

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs (7 Files)

Features

  • 2 digital outputs
  • -1 to 40 bar (-0.1 to 4 MPa) tank pressure
  • 18 to 30 DC operating voltage
  • < 0.5 response time
  • Digital IO-Link communication built in
  • Clearly visible numerical display
  • Protection Class III
  • Short-circuit protection

The ifm efector LMC Series Point Level Sensor enhance process performance by delivering reliable measurements that resist bridging and false-tripping caused by viscous or sticky media. This reliability maintains continuous process operation and eliminates the need for frequent maintenance cycles to clean or adjust sensors. Factory settings optimized for specific media types provide an out-of-the-box solution that significantly reduces installation and setup time. Built-in digital IO-Link communication enables relative measurement capabilities for media identification while providing comprehensive process data that delivers deeper insight into internal process conditions.
