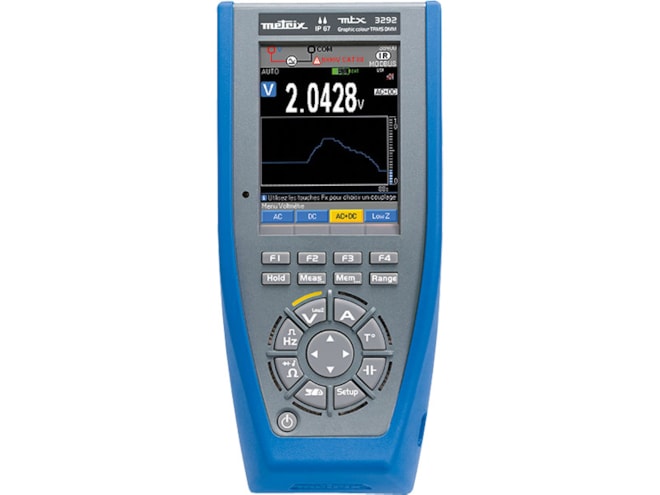

AEMC MTX 3292 Multimeter

Versatile True RMS multimeter with graphical color display, USB optical connector, 1000 point memory and optional Bluetooth.

AEMC MTX 3292 Multimeter

Starting at $875.00 Starting at $831.25 Found a better price? Let us match.

View Company Reviews

Manufactured

By AEMC

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs (2 Files)

Features

True RMS AC Voltage and Current measurements
Easy to read 320 x 240 pixel, quarter VGA color matrix screen with black background
100,000 count display on 4 lines
1000V AC/DC/AC+DC
10A AC/DC/AC+DC
VlowZ - low input impedance voltage measurement
Resistance to 100MΩ
Capacitance to 10mF
Diode test capable
Clamp function for direct current readings
Frequency measurement to 5MHz
Temperature with optional K-Type/PT100/PT1000 sensors
Audible continuity
Duty Cycle / Pulse Width measurements
Min/Max/Avg/Peak with time stamps
Hold / Auto-Hold functions
Relative measurements (REL)
Math function
Recording memory for 1000 measurements
Interactive Zoom function
USB Optical Connector with SX-DMM Software
Bluetooth Communication (optional)
IP67 rated
1000V CAT III / 600V CAT IV
3 Year Warranty

The AEMC MTX 3292 is a portable multimeter that incorporates an easy to read 320 x 240 pixel graphical color display and 4-line, 100,000 count readout allowing instantaneous viewing of data and trends when making direct measurements of electrical quantities. The MTX 3292 utilizes an innovative design that makes them compact, rugged, comfortable to grip and leakproof to IP67 standard.

The AEMC MTX 3292 makes True RMS measurements to 1000V AC/DC/AC+DC providing a basic accuracy of ±0.03%. The unit also accurately measures current, resistance, frequency, and capacitance. The MTX 3292 is diode test capable and includes an audible continuity alarm. A clamp function is available for direct current readings and temperature measurements are possible with optional PT100/PT1000 sensors or Type K or J thermocouples.

The AEMC MTX 3292 includes advanced measurement functions such as Duty Cycle, Pulse Counting, Math function and monitoring of Min/Max/Avg/Peaks enabling you to observe many various aspects of electrical quantities. The MTX 3292 includes a USB Optical Connector with SX-DMM Software and Bluetooth communications are available as an option. The MTX 3292 is rated to 1000V CAT III / 600V CAT IV.
