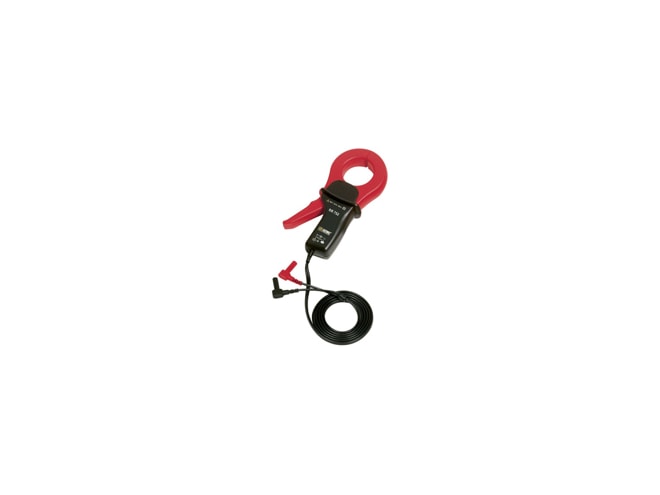

AEMC SR752 AC Current Probe

2116.32

AEMC

Not in stock. Usually ships in 3-5 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Measurement range of 1mA to 1200AAC
  • Jaw accommodates conductors up to two 500MCM
  • Ergonomic design and easy operation
  • Conforms to EN 61010, 600V Cat. III safety standard
  • Low phase shift for power measurements
  • Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
  • UL approved for Canada and United States
  • Double insulation
  • CE Mark

This product is an accessory for the following products:

AEMC Model MTX 162 PC Oscilloscopes
2-channel, 60MHz, oscilloscope with FFT and recorder
$1,040.00
$988.00
AEMC Model OX7102 III / OX7104 III Oscilloscopes
100 MHz oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer on voltage/current/power and recorder
$4,595.00
$4,365.25
AEMC MTX 3290 Multimeter
Versatile True RMS multimeter with 1000V range and “1 key, 1 function” simplicity
$407.00
$386.65
AEMC MTX 3291 Multimeter
Versatile, high accuracy True RMS multimeter with 1000V range and “1 key, 1 function” simplicity and USB optical connector
$519.00
$493.05
AEMC MTX 3292 Multimeter
Versatile True RMS multimeter with graphical color display, USB optical connector, 1000 point memory and optional Bluetooth
$715.00
$679.25
AEMC MTX 3293 Multimeter
High accuracy True RMS multimeter with graphical color display, USB optical connector, 6500 point memory and optional Bluetooth
$815.00
$774.25
AEMC MX 57EX Multimeter
Intrinsically safe, TRMS digital multimeter with 0.025% accuracy
$995.00
$945.25
AEMC OX 7202III & OX 7204III Oscilloscopes
Hand-held, two-channel oscilloscope with 200MHz bandwidth
$5,395.00
$5,125.25
AEMC MTX Series Multimeters
Multimeters with basic accuracy of 0.02%, graphic LCD with bargraph and push-button function selection
RETIRED
AEMC OX 7102-CII & OX 7104-CII Oscilloscopes
Oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer, and recorder in a single instrument
RETIRED

The Model SR752 is designed for use in industrial and utility environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is built to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States.

Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current for power and power quality measurements. The high quality magnetic cores and uniform windings provide sensitivity for very low level current measurements, as well as measurements up to 1200AAC. The Model SR752 provides an accurate voltage of 1mV/A. This voltage output enables instruments without current ranges to measure, display and log currents through an AC voltage range or measure very low AC.

Applications include:

  • Power quality measuring
  • Low industrial loads
  • Measuring around cable bundles
  • Power load monitoring
  • Waveform analysis
