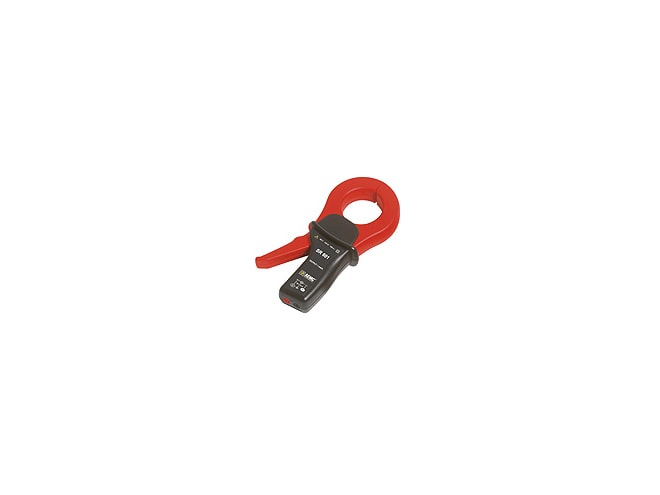

AEMC Model SR701 AC Current Probe
Industrial and utility environments, measurement range of 1mA to 1200Aac.
Overview
Features
- Measurement range of 1mA to 1200Aac
- Jaw accommodates conductors up to two 500MCM conductors
- Ergonomic design and easy operation
- Conforms to EN 61010, 600V CAT III safety standard
- Low phase shift for power measurements
- Available with mA output signals
- Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
- UL approved for Canada and United States
- Double Insulation
- CE mark
This product is an accessory for the following products:
Description
The AEMC Model SR701 AC Current Probe is designed for use in industrial and utility environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is built to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States.
Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current for power and power quality measurements. The high quality magnetic cores and uniform windings provide sensitivity for very low level current measurements, as well as measurements up to 1200Aac. The Model SR701 works as a traditional current transformer (with a ratio of 1000:1) and provides current outputs in mA/A for use on DMMs, power and harmonic meters, data loggers, recorders or instruments with current ranges. The Model SR701 uses a custom Nickel Cove to improve accuracy and phase shift on the low end of the measurement range.
Applications include:
- Power quality measuring
- Large industrial loads
- Measuring around cable bundles
- Power load monitoring
- Waveform analysis
