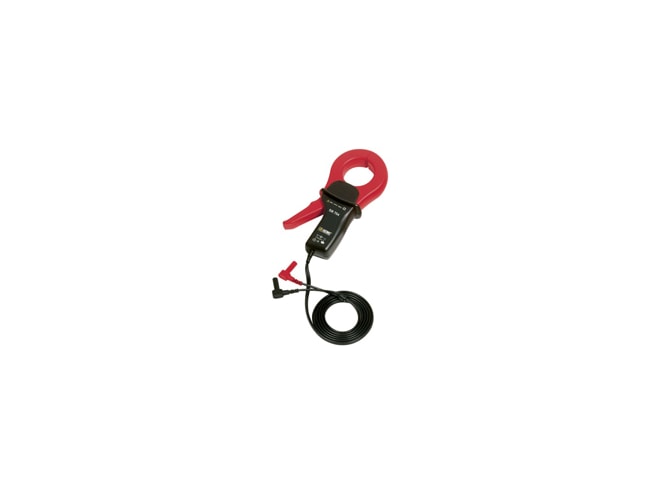

Name: AEMC Model SR704 AC Current Probe
Price: 376.0 USD
Availability: BackOrder

$376.00 Found a better price? Let us match.

View Company Reviews

Part Number

2116.30

Manufactured

By AEMC

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-5 business days

Features

Measurement range of 1mA to 1200AAC
Jaw accommodates conductors up to two 500MCM
Ergonomic design and easy operation
Conforms to EN 61010, 600V Cat. III safety standard
Low phase shift for power measurements
Available with mA output signals
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
UL approved for Canada and United States
Double insulation
CE Mark

This product is an accessory for the following products:

AEMC MTX 3290 Multimeter

Versatile True RMS multimeter with 1000V range and “1 key, 1 function” simplicity.

$550.00 $522.50

AEMC MTX 3291 Multimeter

Versatile, high accuracy True RMS multimeter with 1000V range and “1 key, 1 function” simplicity and USB optical connector.

$650.00 $617.50

AEMC MTX 3292 Multimeter

Versatile True RMS multimeter with graphical color display, USB optical connector, 1000 point memory and optional Bluetooth.

Starting at $831.25

AEMC MTX 3293 Multimeter

High accuracy True RMS multimeter with graphical color display, USB optical connector, 6500 point memory and optional Bluetooth.

Starting at $850.25

AEMC Model MTX 162 PC Oscilloscopes

2-channel, 60MHz, oscilloscope with FFT and recorder.

RETIRED

AEMC Model OX7102 III / OX7104 III Oscilloscopes

100 MHz oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer on voltage/current/power and recorder.

RETIRED

AEMC MTX Series Multimeters

Multimeters with basic accuracy of 0.02%, graphic LCD with bargraph and push-button function selection.

RETIRED

AEMC MX 57EX Multimeter

Intrinsically safe, TRMS digital multimeter with 0.025% accuracy.

RETIRED

AEMC OX 7102-CII & OX 7104-CII Oscilloscopes

Oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer, and recorder in a single instrument.

RETIRED

AEMC OX 7202III & OX 7204III Oscilloscopes

Hand-held, two-channel oscilloscope with 200MHz bandwidth.

RETIRED

The AEMC Model SR704 AC Current Probe is designed for use in industrial and utility environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is built to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States.

Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current for power and power quality measurements. The high quality magnetic cores and uniform windings provide sensitivity for very low level current measurements, as well as measurements up to 1200AAC. The Model SR704 works as a traditional current transformer (with a ratio of 1000:1) and provides current outputs in mA/A for use on DMMs, power and harmonic meters, data loggers, recorders or instruments with current ranges. The Model SR704 uses a custom Nickel Cove to improve accuracy and phase shift on the low end of the measurement range.

Applications include:
