AEMC MN02 AC Current Probe

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Small, compact size
  • Measurement ranges of
    • 50mA to 100A (1Ω load)
    • 50mA to 90A (10Ω load)
  • Jaw opening accommodates conductors up to 0.39" diameter
  • Designed for DMMs, loggers, recorders and oscilloscopes
  • 48 to 10,000Hz frequency range
  • 1mA/A from 1Ω to 10Ω output signals
  • Designed to EN61326-1, 300V CAT IV, 600V CAT III safety standard
  • Double Insulation
  • CE Mark

This product is an accessory for the following products:

AEMC Model MTX 162 PC Oscilloscopes
2-channel, 60MHz, oscilloscope with FFT and recorder
Select options for pricing
AEMC MTX 3290 Multimeter
Versatile True RMS multimeter with 1000V range and “1 key, 1 function” simplicity
$407.00
$386.65
AEMC MTX 3291 Multimeter
Versatile, high accuracy True RMS multimeter with 1000V range and “1 key, 1 function” simplicity and USB optical connector
$519.00
$493.05
AEMC MTX 3292 Multimeter
Versatile True RMS multimeter with graphical color display, USB optical connector, 1000 point memory and optional Bluetooth
$715.00
$679.25
AEMC MTX 3293 Multimeter
High accuracy True RMS multimeter with graphical color display, USB optical connector, 6500 point memory and optional Bluetooth
$815.00
$774.25
AEMC MX 57EX Multimeter
Intrinsically safe, TRMS digital multimeter with 0.025% accuracy
$995.00
$945.25
AEMC Model OX7102 III / OX7104 III Oscilloscopes
100 MHz oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer on voltage/current/power and recorder
RETIRED
AEMC MTX Series Multimeters
Multimeters with basic accuracy of 0.02%, graphic LCD with bargraph and push-button function selection
RETIRED
AEMC OX 7102-CII & OX 7104-CII Oscilloscopes
Oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer, and recorder in a single instrument
RETIRED

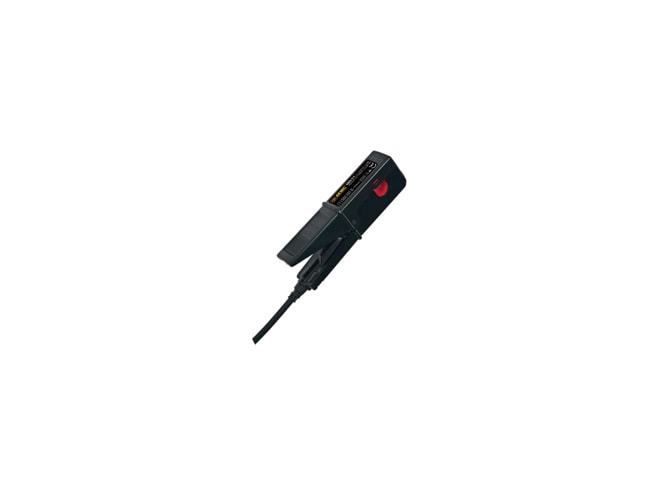

The MN02 is a small, compact AC current probe. Designed to meet the most stringent demands in industry and electrical contracting, they also meet the latest safety and performance standards.

The probe has a measurement range up to 100Arms which makes it a perfect tool for measurement with DMMs and recorders.

The Model MN02 is compatible with any AC ammeter, multimeter, or other current measurement instrument with an input impedance lower than 10Ω. To achieve the stated accuracy, use the probe with an ammeter having an accuracy of 0.75% or better.
