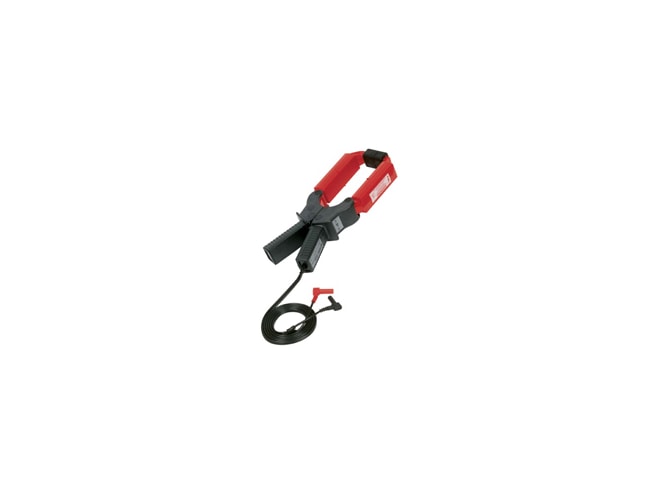

AEMC Model JM810A AC Current Probe

2110.80

AEMC

Usually ships in 3-5 business days [?]

instrumart-trustpilot-badge

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Nominal range: 1 to 2000AAC
  • Measurement range: 1 to 2400A
  • Transformation ratio: 2000:2
  • Output: 1mA/A
  • Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
  • Operating temp: 14 to 122°F (-10 to 50°C)

This product is an accessory for the following products:

AEMC Model MTX 162 PC Oscilloscopes
2-channel, 60MHz, oscilloscope with FFT and recorder
$1,095.00
$1,040.25
AEMC Model OX7102 III / OX7104 III Oscilloscopes
Oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer on voltage/current/power and recorder
$4,595.00
$4,365.25
AEMC MTX 3290 Multimeter
Versatile True RMS multimeter with 1000V range and “1 key, 1 function” simplicity
$399.00
$379.05
AEMC MTX 3291 Multimeter
Versatile, high accuracy True RMS multimeter with 1000V range and “1 key, 1 function” simplicity and USB optical connector
$509.00
$483.55
AEMC MTX 3292 Multimeter
Versatile True RMS multimeter with graphical color display, USB optical connector, 1000 point memory and optional Bluetooth
$699.00
$664.05
AEMC MTX 3293 Multimeter
High accuracy True RMS multimeter with graphical color display, USB optical connector, 6500 point memory and optional Bluetooth
$799.00
$759.05
AEMC MTX Series Multimeters
Multimeters with basic accuracy of 0.02%, graphic LCD with bargraph and push-button function selection
$549.00
$521.55
AEMC MX 57EX Multimeter
Intrinsically safe, TRMS digital multimeter with 0.025% accuracy
$895.00
$850.25
AEMC OX 7102-CII & OX 7104-CII Oscilloscopes
Oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer, and recorder in a single instrument
RETIRED

The AEMC Model JM810A AC Current Probe for higher currents. Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current and power. The high quality magnetic core and uniform windings provide for accurate measurements up to 2400AAC. The "squared" jaw permits multiple conductor or bus bar positioning. The Model JM810A provides excellent True RMS capabilities and reliable signal reproduction.

The Model JM810A works as a traditional current transformer providing current outputs (mA) over a broad range of transformation ratios. The Model JM810A is designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges.

Applications include:

  • Field testing
  • Electrical utility
  • HVAC
  • Industrial maintenance
  • Laboratory
  • Plant maintenance
