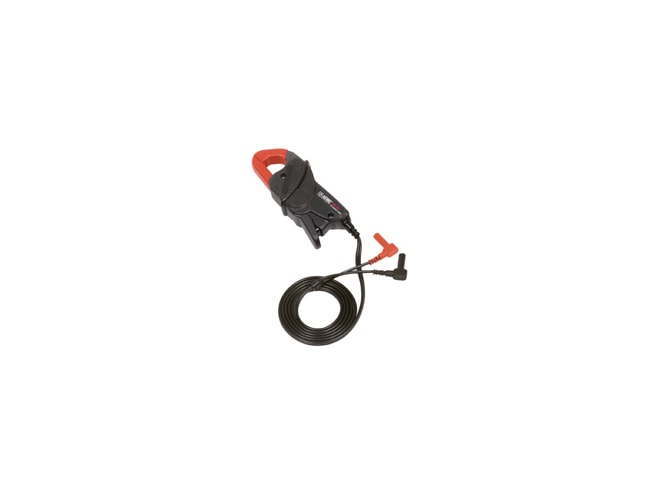

Name: AEMC MN307 AC Current Probe
Price: 250.0 USD
Availability: BackOrder

$250.00 Found a better price? Let us match.

View Company Reviews

Part Number

2116.23

Manufactured

By AEMC

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-5 business days

Features

Small, compact size
Measurement range of 0.01 to 12A
Large jaw opening accommodates conductors up to 250MCM
Designed for DMMs, loggers, recorders and oscilloscopes
40Hz to 10kHz response
100mV/A output signal
Designed to EN 61010, 600V, Cat. III safety standard
UL approved for Canada and United States
Double Insulation
CE Mark

This product is an accessory for the following products:

AEMC MTX 3290 Multimeter

Versatile True RMS multimeter with 1000V range and “1 key, 1 function” simplicity.

$525.00 $498.75

AEMC MTX 3291 Multimeter

Versatile, high accuracy True RMS multimeter with 1000V range and “1 key, 1 function” simplicity and USB optical connector.

$630.00 $598.50

AEMC MTX 3292 Multimeter

Versatile True RMS multimeter with graphical color display, USB optical connector, 1000 point memory and optional Bluetooth.

Starting at $831.25

AEMC MTX 3293 Multimeter

High accuracy True RMS multimeter with graphical color display, USB optical connector, 6500 point memory and optional Bluetooth.

Starting at $850.25

AEMC Model MTX 162 PC Oscilloscopes

2-channel, 60MHz, oscilloscope with FFT and recorder.

RETIRED

AEMC Model OX7102 III / OX7104 III Oscilloscopes

100 MHz oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer on voltage/current/power and recorder.

RETIRED

AEMC MTX 1052B / MTX 1054B PC Oscilloscopes

2 & 4 channel, 150MHz, with FFT harmonic analyzer and recorder.

RETIRED

AEMC MTX Series Multimeters

Multimeters with basic accuracy of 0.02%, graphic LCD with bargraph and push-button function selection.

RETIRED

AEMC MX 57EX Multimeter

Intrinsically safe, TRMS digital multimeter with 0.025% accuracy.

RETIRED

AEMC OX 7102-CII & OX 7104-CII Oscilloscopes

Oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer, and recorder in a single instrument.

RETIRED

The Model MN307 is the latest in compact AC current probes. It is designed to meet the most stringent demands in industry and electrical contracting. Model MN307 meets EN 61010, 600V, Cat. III safety standards and is CE Marked and UL approved for Canada and United States.

The Model MN307 has a 0.78" (20mm) jaw opening and accommodate conductors up to 250MCM. The unique hooked jaw design facilitates clamping and hooking onto conductors. Polycarbonate materials and ultrasonic welding are used throughout to ensure ruggedness and overall lasting reliability.

The Model MN307 is a high performance model and uses a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Model MN307 is an excellent probe to be used in power and low level current measurement applications.

Applications include:
