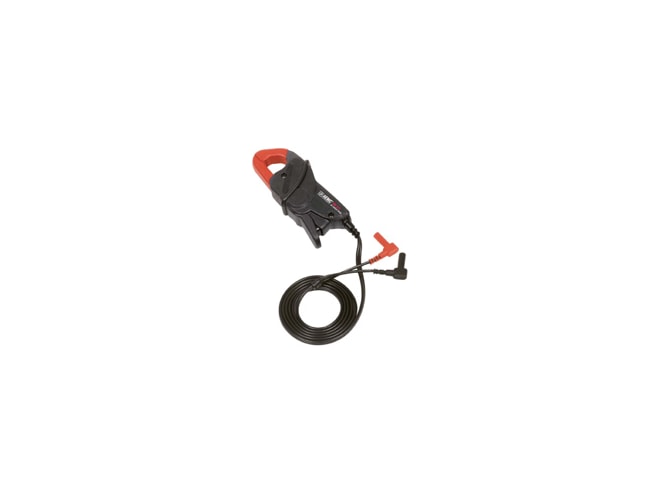

AEMC MN375 AC Current Probe

Not in stock. Usually ships in 3-5 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Small, compact size
  • Measurement range of 0.1 to 10A
  • Large jaw opening accommodates conductors up to 250MCM
  • Designed for DMMs, loggers, recorders and oscilloscopes
  • 40Hz to 10kHz response
  • 100mV/A output signals
  • Designed to EN 61010, 600V, Cat. III safety standard
  • UL approved for Canada and United States
  • Double Insulation
  • CE Mark

This product is an accessory for the following products:

AEMC Model MTX 162 PC Oscilloscopes
2-channel, 60MHz, oscilloscope with FFT and recorder
Select options for pricing
AEMC MTX 1052B / MTX 1054B PC Oscilloscopes
2 & 4 channel, 150MHz, with FFT harmonic analyzer and recorder
Select options for pricing
AEMC MTX 3290 Multimeter
Versatile True RMS multimeter with 1000V range and “1 key, 1 function” simplicity
$407.00
$386.65
AEMC MTX 3291 Multimeter
Versatile, high accuracy True RMS multimeter with 1000V range and “1 key, 1 function” simplicity and USB optical connector
$519.00
$493.05
AEMC MTX 3292 Multimeter
Versatile True RMS multimeter with graphical color display, USB optical connector, 1000 point memory and optional Bluetooth
$715.00
$679.25
AEMC MTX 3293 Multimeter
High accuracy True RMS multimeter with graphical color display, USB optical connector, 6500 point memory and optional Bluetooth
$815.00
$774.25
AEMC MX 57EX Multimeter
Intrinsically safe, TRMS digital multimeter with 0.025% accuracy
$995.00
$945.25
AEMC Model OX7102 III / OX7104 III Oscilloscopes
100 MHz oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer on voltage/current/power and recorder
RETIRED
AEMC MTX Series Multimeters
Multimeters with basic accuracy of 0.02%, graphic LCD with bargraph and push-button function selection
RETIRED

The Model MN375 is the latest in compact AC current probes. It is designed to meet the most stringent demands in industry and electrical contracting. Model MN375 meets EN 61010, 600V, Cat. III safety standards and is CE Marked and UL approved for Canada and United States.

The Model MN375 has a 0.78" (20mm) jaw opening and accommodate conductors up to 250MCM. The unique hooked jaw design facilitates clamping and hooking onto conductors. Polycarbonate materials and ultrasonic welding are used throughout to ensure ruggedness and overall lasting reliability.

The Model MN375 is a high performance model and uses a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Model MN375 is an excellent probe to be used in power and low level current measurement applications.
