GF Signet 2756-WT and 2757-WT pH / ORP Electrodes
$412.00 to $479.00
$370.80 to $431.10

Call for availability [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Compatibility: Signet 3719 Wet-Tap Assembly, 2750 and/or 2760 Sensor Electronics
  • Operating Range
    • pH: 0 to 14 pH
    • ORP: Application dependent
  • Connector (CPVC): DryLoc®
  • Temperature Sensor: PT-1000 or 3K Balco for pH; none for ORP
  • Reference junctions: Porous PTFE
    • Electrolyte: 3.5M KCl
    • Elements: Ag/AgCl
  • Efficiency: > 97% @ 25°C (77°F)
  • Response Time
    • pH: < 5s for 95% of signal change
    • ORP: Application dependent
  • Impedance (pH): < 150 MΩ @ 25°C
  • Body: Glass or PAS (Poly Aryl Sulphone)

This product is an accessory for the following products:

GF Signet 2751 pH/ORP Smart Sensor Electronics
Submersible or in-line integral mount installation with DryLoc connectors and automatic electrode health monitoring function
$471.00
In Stock

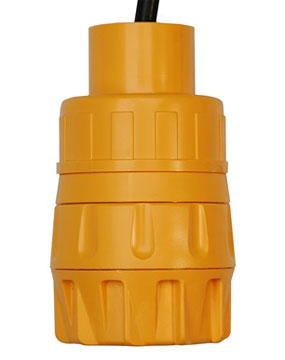

GF Signet 2760 pH/ORP Preamplifier
Submersible or in-line mount connector or preamplifier featuring DryLoc connectors, available with NPT or ISO threads
$340.00
$306.00
In Stock
GF Signet 3719 pH/ORP Wet-Tap Assembly
pH/ORP wet-tap assembly allows electrode installation without process shutdown
$1,017.00
$915.30
GF Signet 8900 Multi-Parameter Controller
Measures flow, pH, ORP, conductivity, pressure, level, and temperature
$897.00
In Stock
GF Signet 2750 pH/ORP Sensor Electronics
Submersible or in-line integral mount insallation sensor electronics featuring DryLoc connectors
RETIRED
GF Signet 8750-3 pH/ORP Transmitter
ProcessPro pH/ORP transmitter with two 4-20 mA outputs and two open collectors
RETIRED

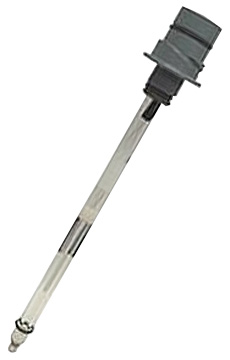

The GF Signet 2756-WT and 2757-WT pH / ORP electrodes are designed for wet-tap installations using the GF Signet 3719 Wet-Tap assembly. These dependable and highly responsive electrodes feature a unique foul-proof DryLoc® connector with gold-plated contacts designed specifically for use with the GF Signet 2750 and 2760 Sensor electronics and preamplifiers. The units also include a large reference chamber volume and intelligent positioning of internal elements that combine to extend the service life.

The GF Signet 2756-WT and 2757-WT pH / ORP electrodes are available with glass or plastic bodies. A choice of a PT-1000 or 3KΩ temperature sensor is available with pH electrodes.

System Compatibility

GF Signet 2756-WT and 2757-WT pH / ORP electrodes are compatible with a wide variety of GF Signet components. Please click here to view typical system configurations. If you have any questions about your particular installation, please contact us.

GF Signet 8900 Multi-Parameter Controller
Measures flow, pH, ORP, conductivity, pressure, level, and temperature
$897.00
In Stock
GF Signet 3719 pH/ORP Wet-Tap Assembly
pH/ORP wet-tap assembly allows electrode installation without process shutdown
$1,017.00
$915.30
GF Signet 2759 pH/ORP System Tester
Battery-powered millivolt generator simulates pH values for trouble-shooting and system verification
$489.00
$440.10
GF Signet Installation Fittings
Fittings for securing insertion style flow sensors with different styles, models & materials to suit a variety of applications
$134.00
$120.60
In Stock
GF Signet 2751 pH/ORP Smart Sensor Electronics
Submersible or in-line integral mount installation with DryLoc connectors and automatic electrode health monitoring function
$471.00
In Stock

Application Notes

Here's how some of our customers used this product.

Measuring pH of Wastewater with 2% Suspended Solids

The Background: Our customer makes water treatment skids used to treat wastewater in the food and beverage industry. They seek a reliable means of testing the pH of wastewater prior to treatment.

The Problem: The customer needs to measure pH and temperature in a 3-inch pipe. The wastewater often has suspended solids up to ~2% so the sensors will need to be cleaned without shutting the process down.

The Solution: We suggested the GF Signet 2756-WT pH electrode which is designed for wet-tap installations using the GF Signet 3719 Wet-Tap assembly. With the wet-tap assembly users can easily access the electrodes for cleaning or re-calibration without shutting down the process.
