GF Signet 2750 pH/ORP Sensor Electronics | Instrumart

GF Signet 2750 pH/ORP Sensor Electronics

Retired products cannot be ordered

The GF Signet 2751 pH/ORP Smart Sensor Electronics are the recommended replacements

View Company Reviews

Manufactured

By Georg Fischer / GF Signet

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

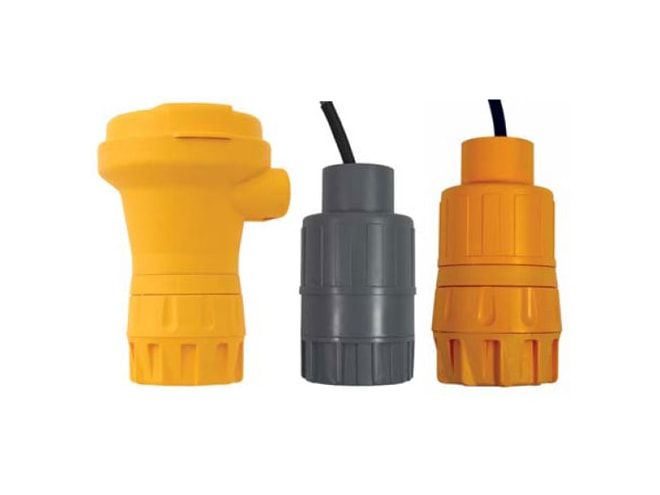

Submersible (gray body) or in-line (yellow body) mount
Auto configuration for pH or ORP operation
- 0 to 14pH
- ±2000mV ORP
Digital S3L or 4 to 20mA loop output
Automatic temperature compensation
EasyCal calibration aid (optional)
- Includes automatic buffer recognition
Junction boxes for convenient wiring
15ft (4.6m) cable
CE, FCC, & RoHS compliant

This product is an accessory for the following products:

GF Signet 2724-2726 pH and ORP Electrodes

GF Signet 2724-2726 pH and ORP Electrodes

DryLoc connector with corrosion-resistant gold-plated contacts, connects to the 2760 preamplifier or the 2750/1 sensor electronics.

Some Models in Stock

Starting at $390.60

GF Signet 2756-WT and 2757-WT pH / ORP Electrodes

GF Signet 2756-WT and 2757-WT pH / ORP Electrodes

Wet-tap pH and ORP electrodes featuring DryLoc connector with gold-plated contacts.

$536.40 to $601.20

GF Signet 2774-2777 pH and ORP Electrodes

GF Signet 2774-2777 pH and ORP Electrodes

pH and ORP electrodes with DryLoc connector with gold-plated contacts featuring a PTFE double reference junction.

Starting at $574.20

GF Signet 3719 pH/ORP Wet-Tap Assembly

GF Signet 3719 pH/ORP Wet-Tap Assembly

pH/ORP wet-tap assembly allows electrode installation without process shutdown.

Starting at $1,325.70

GF Signet 2754-2757

GF Signet 2754-2757

pH and ORP electrodes featuring DryLoc connector with gold-plated contacts.

GF Signet 2764-2767 Differential pH and ORP Electrodes

GF Signet 2764-2767 Differential pH and ORP Electrodes

Differential pH and ORP electrodes with DryLoc connector and Ryton body.

The GF Signet 2750 pH/ORP sensor electronics feature DryLoc connectors and provide a variety of functions to suit various requirements. It self-configures for pH or ORP operation via automatic recognition of the electrode type. The optional EasyCal feature allows simple push-button calibration and includes an LED indicator for visual feedback.

The 2750 has a preamplified signal and features two different outputs: a two-wire 4 to 20 mA loop output with EasyCal function or a digital (S3L) output which allows for longer cable lengths and is compatible with the Signet 8900 or 9900 instruments, and Profibus Concentrator.

The DryLoc electrode connector quickly forms a robust assembly for submersible and in-line installations. NEMA 4X junction enclosures are integral parts of the 2750 in-line version and are also available as accessories for the submersible 2750.

The 2750 submersible preamplifier can also be used as an in-line preamplifier when used with the 3/4 or 1 inch threaded sensors including the 2724, 2734, 2774 and 2764 series electrodes. The in-line preamplifier can be used with Signet fittings up to DN100 (4in) and wet-tap assemblies.

GF Signet 2750 pH/ORP Sensor Electronics Applications

Water/wastewater treatment
Neutralization systems
Scrubber control
Effluent monitoring
Surface finishing
Flocculent coagulation
Heavy metal removal and recovery
Toxics destruction
Sanitization systems
Pool & spa control
Aquatic animal life support systems

Spec Sheets

GF Signet 2750 pH/ORP Sensor Electronics Datasheet PDF (574 KB)

Manuals

GF Signet 2750 pH/ORP Sensor Electronics Manual PDF (510 KB)
