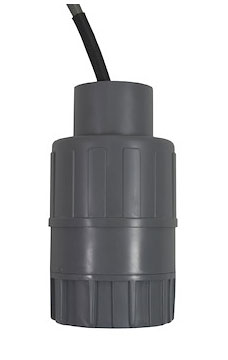

GF Signet 2760 pH/ORP Preamplifier

Submersible or in-line mount connector or preamplifier featuring DryLoc connectors, available with NPT or ISO threads .

Starting at $615.00 Starting at $553.50

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Submersible (gray body) or in-line (yellow body)
    • 32 to 185°F (0 to 85°C) submersible temp
    • 32 to 230°F (0 to 110°C) in-line temp
  • Auto configuration for pH or ORP operation
    • 0 to 14pH
    • ±2000mV ORP
  • Automatic temperature compensation
  • 15ft (4.6m) cable
  • CE & RoHS compliant

The GF Signet 2760 pH/ORP preamplifiers feature the DryLoc connector, providing a robust connection to Signet DryLoc electrodes. It allows any DryLoc pH/ORP electrode to work with Signet ProcessPro and ProPoint pH/ORP instruments. It is also sold as a simple connector for use with other manufacturers' instruments that do not require a preamplified signal.

The 2760 submersible preamplifier can also be used as an in-line preamplifier when used with the ¾ or 1 inch threaded sensors including the 2724, 2774 and 2764 series electrodes. The in-line preamplifier can be used with Signet fittings up to DN100 (4in) and wet-tap assemblies.

GF Signet 2760 pH/ORP Preamplifiers Applications

  • Water/wastewater treatment
  • Neutralization systems
  • Scrubber control
  • Effluent monitoring
  • Surface finishing
  • Flocculent coagulation
  • Heavy metal removal and recovery
  • Toxics destruction
  • Sanitization systems
  • Pool & spa control
  • Aquatic animal life support systems

Sensors/Probes

GF Signet 2724-2726 pH and ORP Electrodes
GF Signet 2724-2726 pH and ORP Electrodes

DryLoc connector with corrosion-resistant gold-plated contacts, connects to the 2760 preamplifier or the 2750/1 sensor electronics.

Some Models in Stock
Starting at $375.30
GF Signet 2774-2777 pH and ORP Electrodes
GF Signet 2774-2777 pH and ORP Electrodes

pH and ORP electrodes with DryLoc connector with gold-plated contacts featuring a PTFE double reference junction.

Starting at $640.80
GF Signet 2756-WT and 2757-WT pH / ORP Electrodes
GF Signet 2756-WT and 2757-WT pH / ORP Electrodes

Wet-tap pH and ORP electrodes featuring DryLoc connector with gold-plated contacts.

$515.70 to $597.60

Accessories

Please consider these optional accessories.

GF Signet 3719 pH/ORP Wet-Tap Assembly
GF Signet 3719 pH/ORP Wet-Tap Assembly

pH/ORP wet-tap assembly allows electrode installation without process shutdown.

Starting at $1,274.40
GF Signet Installation Fittings
GF Signet Installation Fittings

Fittings for securing insertion style flow sensors with different styles, models & materials to suit a variety of applications.

Some Models in Stock
Starting at $283.50
GF Signet 2759 pH/ORP System Tester
GF Signet 2759 pH/ORP System Tester

Battery-powered millivolt generator simulates pH values for trouble-shooting and system verification.

Starting at $613.80
GF Signet 8050 Universal Mounting Kit
GF Signet 8050 Universal Mounting Kit

Kit for mounting a field mount transmitter on a pipe, wall or other stationary surface near a sensor.

In Stock
$99.00 $89.10
Part Number Price Available
3-2760-1
Show Configuration
$553.50 3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
