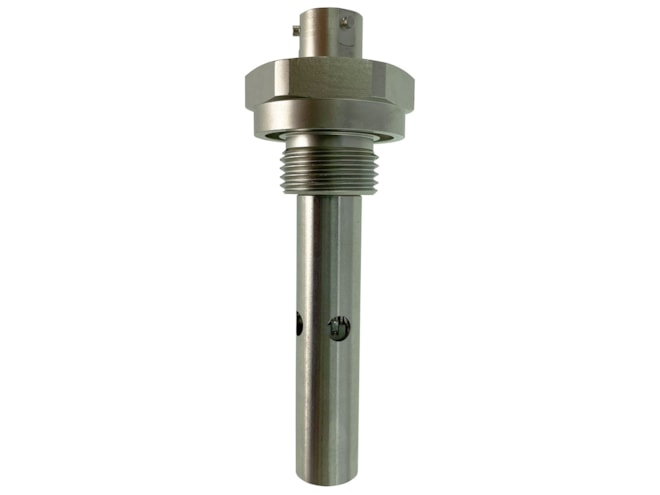

Panametrics M Series Moisture Probe
Starting at $1,460.00

Some models in stock. View available part numbers.

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Intrinsically safe when used in conjunction with certified electronics or zener barriers
  • Superior sensitivity, response speed and calibration stability
  • Calibration -80 to 20°C dew/frost pt w/data to -110°C
  • Optional temperature sensor
  • Calibrations traceable to NIST
  • Designed for in situ applications or in conjunction with sample conditioning systems
  • True absolute humidity sensor
  • Wide dynamic range

This product is an accessory for the following products:

Panametrics dew.IQ Trace Moisture Analyzer
Single-channel analyzer trace measures moisture in process gases
$2,720.00
In Stock
Panametrics moisture.IQ Moisture Analyzer
Multichannel, multifunction aluminum oxide-based moisture analyzer, measures trace moisture, pressure and temperature
Select options for pricing
Panametrics MTS6 OEM Moisture Analyzer
Single-channel OEM analyzer designed for permanent installation measures moisture in compressed air and gases
$3,200.00
Panametrics PM880 Hygrometer
Intrinsically safe, portable moisture analyzer / hygrometer
$3,100.00
In Stock
Panametrics PM880 Hygrometer Packages
Package includes PM880 Hygrometer, moisture probe and PM880 sample system
$5,910.00
In Stock
Panametrics PM880AC Hygrometer
Non-intrinsically safe, line-powered portable hygrometer for the measurement of moisture in gases and non-aqueous liquids
$7,650.00
Panametrics PM880AC Hygrometer Packages
Non Intrinsically-Safe hygrometer package includes PM880AC Hygrometer, moisture probe and sample system
$10,460.00
Panametrics Portable Sample System
Portable sample system for moisture analysis using the PM880 hygrometer
$1,350.00
In Stock
GE Panametrics MIS 1 Moisture Analyzer
RETIRED

The Panametrics, formerly General Eastern, M Series Moisture Probe sets the standard of performance and value in industrial moisture measurement. Compatible with all moisture analyzers from Panametrics Infrastructure Sensing, the M series probe combines ease of use, a wide measurement range, and rigorous calibration standards to make them the preferred choice for industrial moisture measurement worldwide.

The M series Probe is designed to directly measure water vapor pressure in both gases and liquids. The sensor consists of a porous aluminum oxide layer over which a very thin coating of gold is evaporated. The aluminum base and the gold layer form the two electrodes of what is essentially an aluminum oxide capacitor. Water vapor is rapidly transported through the gold layer and equilibrates on the pore walls of the oxide layer. The number of water molecules absorbed on the oxide structure determines the conductivity of the pore walls. Each value of pore wall resistance provides a distinct value of electrical impedance, which in turn is functionally related to the water vapor pressure. This functional relationship holds for measurements made in either gas phase or liquid phase.

Each M series Probe is individually calibrated to the highest standards and is traceable to NIST. The aluminum oxide is precisely layered to a thickness that causes the sensor to exhibit true absolute humidity (rather than relative humidity) response while minimizing any temperature or hysteresis effects. This critical film thickness also gives the probe quick response and exceptional calibration stability.

Applications for the M Series Probes include:

  • Petrochemical
  • Natural gas
  • Industrial gas
  • Semiconductor
  • Furnace gas/heat treating
  • Power generation
  • Air dryer
  • Pharmaceutical
  • Aerospace
Panametrics Moisture Probe Calibration Service
Trace moisture sensor recalibrations for M2, TF, MISP2, HYGRORTE, IQPROBE, and VERIDRI probes
$444.00
In Stock
Panametrics ALOX Probe Cable
For aluminum oxide trace moisture probes
$75.09
In Stock
Panametrics 750-039 Sample Cell
2830 sample cell for use with 3/4-16 straight UNF threaded trace moisture sensors in general purpose or intrinsically safe installations
$156.00
Part Number Price Available
M2LR-00-010-0
Show Configuration
Base Price
$1,460.00
Mount
3/4" 16 strgt thread w/Viton O-ring;300 series SS;press:5micron Hg 5000PSIG
End Cap
Sintered stainless steel end cap/shield
Temperature Options
None
Calibration Options
None
Laboratory Services
None
Certification
NIST Certification
CRN Label
Without CRN labeling
Reconfigure
$1,460.00 19
M2LR-T0-010-0
Show Configuration
Base Price
$1,460.00
Mount
3/4" 16 strgt thread w/Viton O-ring;300 series SS;press:5micron Hg 5000PSIG
End Cap
Sintered stainless steel end cap/shield
Temperature Options
Process temperature thermistor (+$123.00)
Calibration Options
None
Laboratory Services
None
Certification
NIST Certification
CRN Label
Without CRN labeling
Reconfigure
$1,583.00 3
M2LW-00-010-0
Show Configuration
Base Price
$1,460.00
Mount
3/4" 16 strgt thread w/Viton O-ring;300 series SS;press:5micron Hg 5000PSIG
End Cap
Sheet stainless steel end cap/shield
Temperature Options
None
Calibration Options
None
Laboratory Services
None
Certification
NIST Certification
CRN Label
Without CRN labeling
Reconfigure
$1,460.00 2

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
