ifm efector E4 Series Level Sensor Flange Plate

Flange with standard or DIN 24557 mounting for stable fixing of a LK, LI, LT, LL, or LR level sensor to a tank lid.

Starting at $60.50

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs (6 Files)

Features

  • 80, 90, or 125mm flange diameter
  • Sensor connections:
    • Ø16mm clamp fitting
    • G 3/4 threaded connection
    • 3/4" NPT threaded connection
  • Standard or DIN 24557 mounting

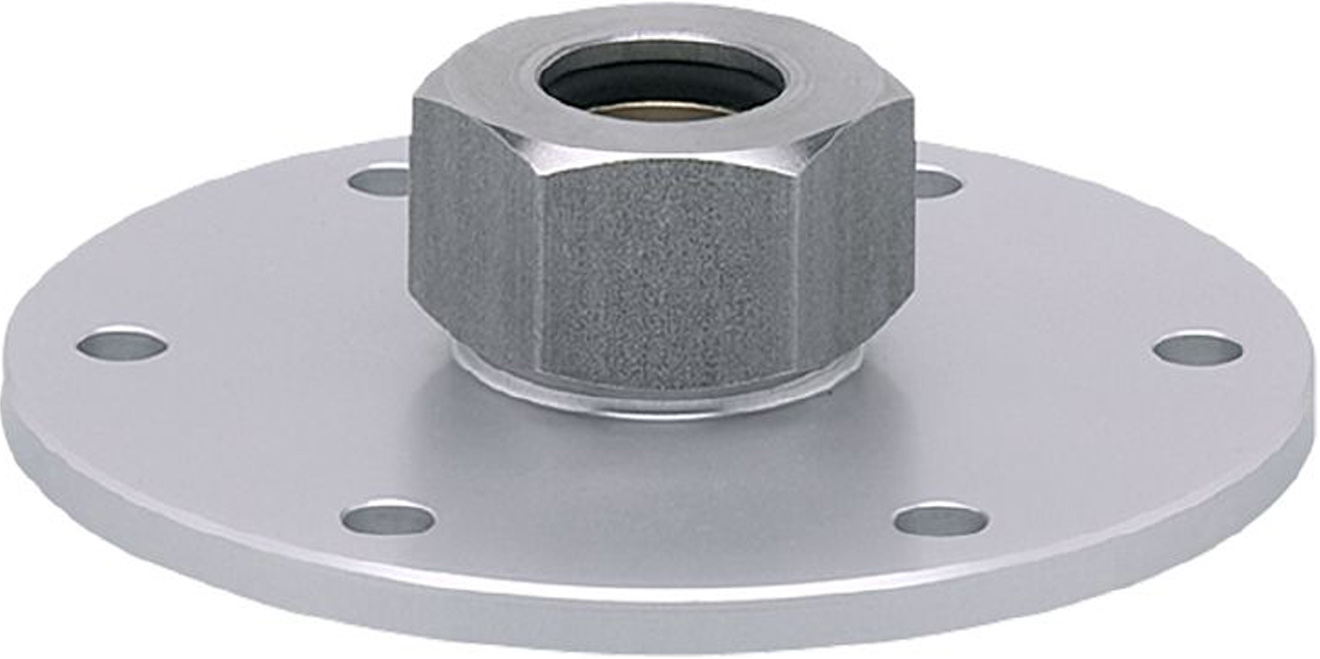

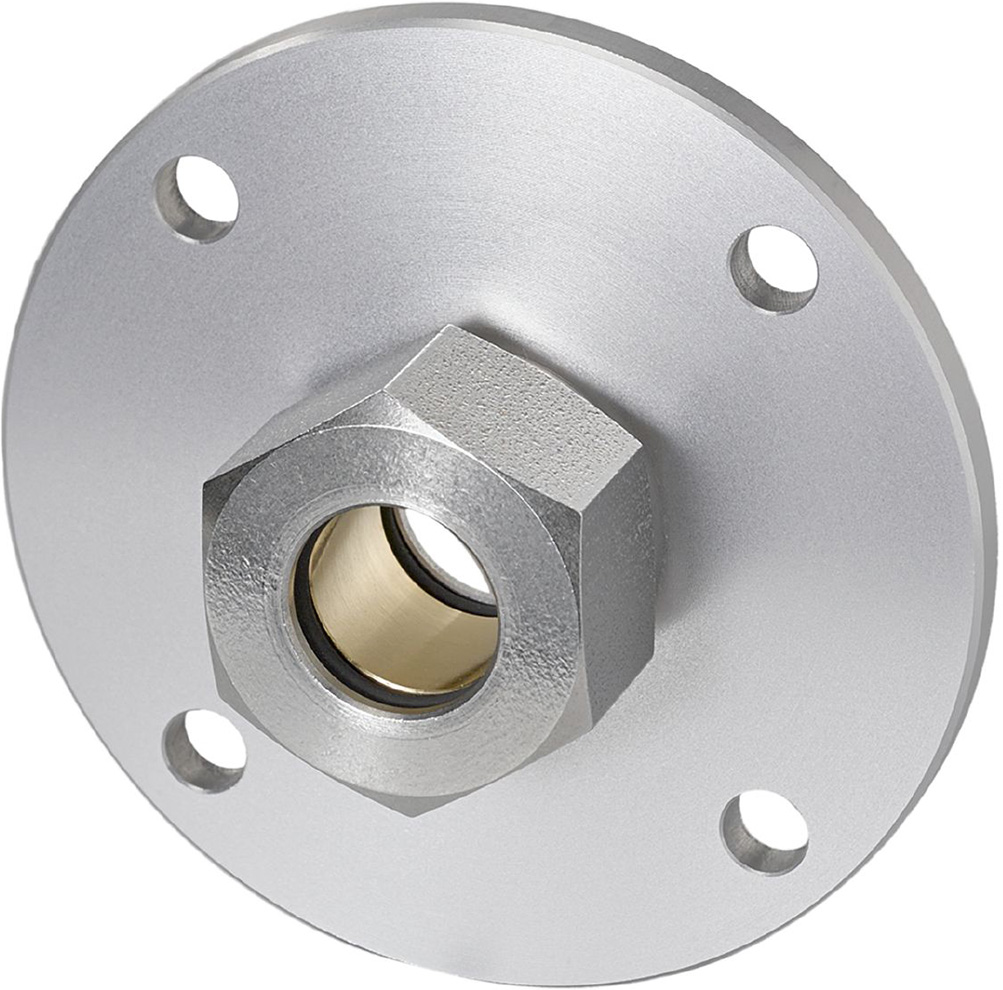

  • E43001, E43005, E43006 materials:
    • Flange: anodized aluminum
    • Knurled nut: stainless steel
    • Spacer: brass
    • Clamping ring: FKM

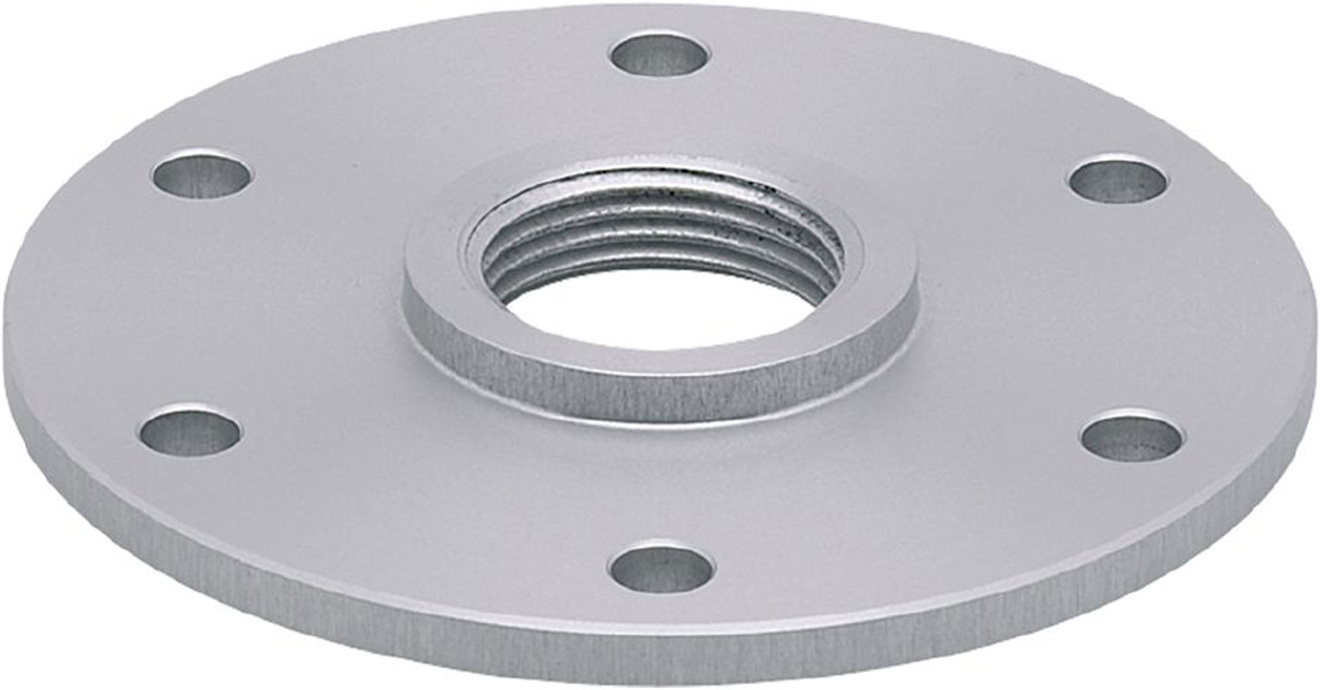

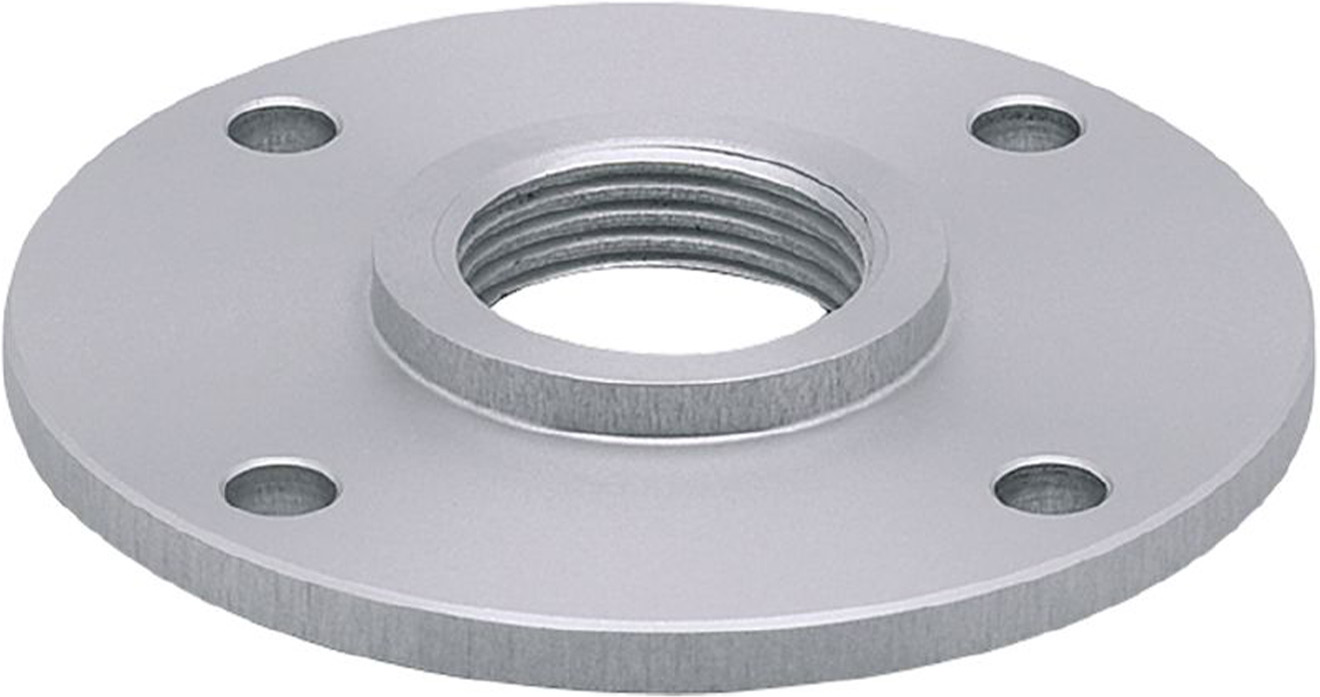

  • E43201, E43202, E43206 material:
    • Flange: stainless steel (1.4305 / 303)
  • NBR sealing with DIN 24557 mounting type

The ifm efector E4 Series Level Sensor Flange Plate is designed for secure mounting of level sensors to tank lids. This flange comes in versions compatible with LR level sensors, with guided wave radar, and LK, LI, LT, and LL capacitive level sensors. Capacitive level sensor flange plates feature an Ø16mm clamp fitting for the sensor and are available in 80, 90, or 125mm diameters. Flange plates for level sensors with guided wave radar feature a G3/4 or 3/4in NPT sensor connection and are available in 80 or 90mm diameters.
