HOBO MAG-SPT Series AC Potential Transformers
Starting at $79.00

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Measures True RMS (sinusoidal and non-sinusoidal waveforms)
  • Measurement ranges: 150, 300, 600 Volts AC
  • Accuracy: ±1% (from 10% to 130% of rated voltage)
  • 2 input channels of AC Current and/or Voltage
  • Connections: 8-ft PVC insulated wire, UL1015
  • Output signal: 0.333 Volt at rated input voltage

This product is an accessory for the following products:

HOBO H22-001 Energy Data Logger
Records up to 15 channels, 512K nonvolatile flash data storage, for energy and industrial monitoring applications
$364.00
HOBO RX3000 Remote Monitoring Station Data Logger
Cloud based, 15 channel, multi-parameter data logger with plug-and-play convenience
$899.00
In Stock
HOBO RX3000 Remote Weather Station Starter Kit
Measures barometric pressure, leaf wetness, light intensity, rainfall, relative humidity, soil moisture, temperature, and wind
$1,999.00
HOBO U30-NRC Weather Station Starter Kit
Rugged data logging weather station with out-of-the-box convenience
$1,459.00
HOBO U30 Remote Monitoring Systems
Real-time access to data from any web browser, double weatherproof, tamperproof enclosure for harsh environments
RETIRED

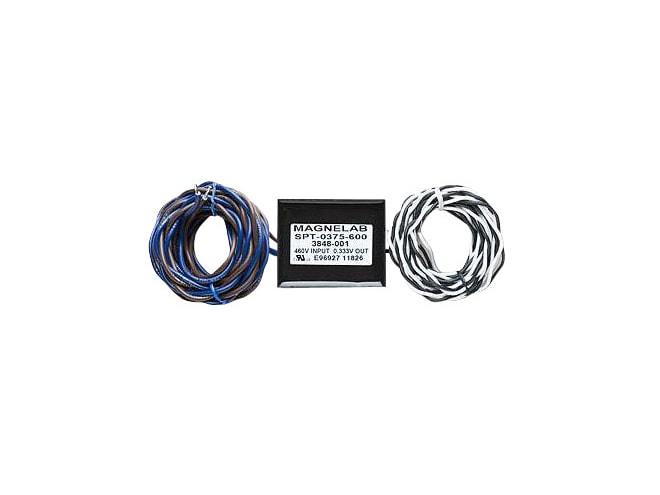

The HOBO MAG-SPT Series AC Potential Transformers measure True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms. Three measuring ranges are available including 150, 300, 600 Volts AC. The Magnelab Transformers are used with the FlexSmart TRMS Module to provide accurate measurement of AC voltage. One or two PTs can be used with each FlexSmart TRMS module. This sensor offers an accuracy of ±1% (from 10% to 130% of rated voltage), but because this transformers ties directly into the line, it should be used only by qualified personnel.
