Starting at $7,423.00

Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:00pm ET

Features

  • DC Voltage Range: 0 to 1020V; Accuracy: 80ppm
  • DC Current Range: 0 to 10A; Accuracy: 0.03%
  • AC Voltage Range: 0 to 1020V (10Hz to 2kHz); Accuracy: 0.08%
  • AC Current Range: 0 to 10A (10Hz to 2kHz); Accuracy: 0.1%
  • Resistance (simulated) Range: 0 to 10MΩ; Accuracy: 0.02%
  • Resistance (passive) Range: 10Ω to 100MΩ (decades); Accuracy: 0.02%
  • Capacitance (passive) Range: 10nF to 1µF; Accuracy: 0.8%
  • Insulation Resistance Range: 1MΩ to 1GΩ; Accuracy: 0.8%
  • PRT Resistance Range: -200 to 800°C; Accuracy: 20ppm
  • Thermocouple Simulation Range: J,K,T,R,S,B,N,E,L,U,C; Accuracy: 0.22°C
  • Rugged, ultra-portable design
  • Fast warm up time
  • Full output protection using built-in I-GUARD system
  • Transit case, benchtop versions available
    • Benchtop can be rack mounted with accessory
  • USB interface
  • Dedicated thermocouple output socket
  • Graphic LCD display with backlight for clear, bright presentation of functions & settings
  • Numeric keypad for easy entering of test values

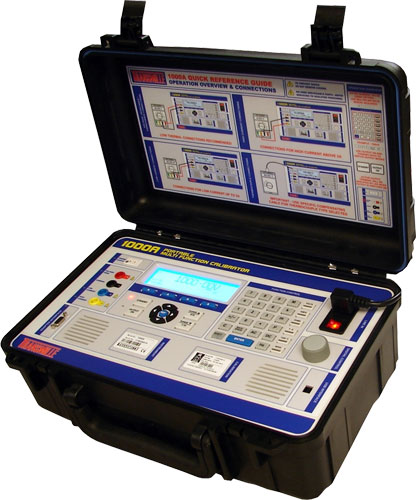

The new Transmille 1000 series multifunction calibrator is set to transform the world of calibration-- the completely new design utilizes the latest in cutting edge digital and analog electronics, combined with the latest manufacturing techniques to create the world's first full function ultra-portable calibrator. The significant improvement in portability changes how and where calibration can be performed. For the first time the 1000 series will allow you to easily take your calibration laboratory with you no matter where it's needed making it perfect for all types of sites including oil rigs, ships, aviation, military installations, power and process plants, and railways.

Although lightweight and portable, the Transmille 1000 series provides all the capability you would expect from a full-sized calibrator with no loss of accuracy. The 1000 series offers:

  • AC/DC Voltage to 1000V
  • AC/DC Current to 10A (500A with coil)
  • 2-Wire Resistance to 100 MOhms
  • Continuity Resistance (up to 320mA measured current )
  • Capacitance
  • Frequency
  • Thermocouple Simulation
  • PRT Simulation
  • Pressure Measurement (via transducers)
  • Process Control Measurement (mV / mA)
  • Insulation Tester Calibration (Insulation resistance & test voltage measurement)

Not only does the Transmille 1000 series have the accuracy to calibrate modern, digital instruments, it also has the power to drive older analog instruments as well making it ideal for calibrating a number of instruments including: digital multimeters, power/clamp meters, process meters, current shunts, data loggers, and pressure instruments.

The Transmille 1000 Series is easy to carry, quick to set up anywhere and a fast warm up time allows work to be started quickly. The integrated numeric keypad allows for easy entering of test values and parameters while the backlit, graphic LCD provides clear and bright presentation of functions & settings. A built-in I-GUARD system provide full output protect and a USB port provides the interface with other equipment.

Test Leads

Transmille 1000LEAD Lead Set
Precision Lead Set
$351.00

Software

Transmille ProCal Software
Universal calibration software for use with Transmille calibrators for a single user
$3,335.00
Transmille ProCal-Track Calibration Software
Comprehensive instrument management software for a single user
$2,795.00

Accessories

Please consider these optional accessories.

Transmille EA001A Thermocouple Simulation Adapter
Thermocouple simulation adapter and CJC readback
$834.00
Transmille EA002 Clamp Coil Adapter
Designed for the calibration of both wound AC and magnetic field hall effect AC/DC clamp meters
$1,047.00
Transmille EA003 Optical Tachometer Calibration Adapter
Optical tachometer calibration adapter
$638.00
Transmille Pressure Modules
Intelligent pressure modules for use with Transmille multi-product calibrators
$1,196.00
Transmille EA022 Process Control Calibration Adapter
Enables calibration of source functions of process control instruments including voltage, current and resistance
$1,547.00
Transmille 1000B Rack Mount
Rack mounting chassis for use with Model 1000B
$518.00
