Name: Transmille EA001A Thermocouple Simulation Adapter
Price: 1311.0 USD
Availability: BackOrder

Transmille EA001A Thermocouple Simulation Adapter

$1,311.00

View Company Reviews

Part Number

EA001A

Manufactured

By Transmille

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Direct simulation of 8 thermocoupe types
Simulates any T/C type using Virtual Front Panel Software
EN60584-1(1996): Scale ITS90 temperature standard
Uses neutral (copper) thermocouple plug
CJC sensor built into thermocouple plug

This product is an accessory for the following products:

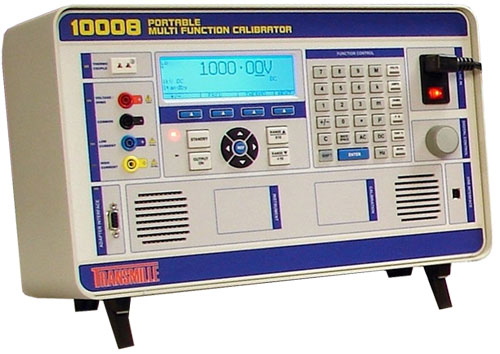

Transmille 1000 Series Multifunction Calibrator

Ultra-portable multi-product calibrator featuring 80ppm accuracy with the functionality of calibrators twice the size .

Starting at $11,506.00

Transmille 3010/3041 Multi-Product Calibrator

Precision, multiproduct calibrator with up to 8 ppm accuracy.

Starting at $24,794.00

Transmille 4000 Series Multi Function Calibrator

Designed for laboratories, manufacturers & design facilities requiring a wide range of outputs with accuracies .

Starting at $52,573.00

Temperature gradients / thermal EMFs which can be introduced by internally mounted thermocouple simulation methods are one of the greatest sources of error with thermocouple temperature calibration. For the ultimate in accuracy, Transmille has designed a dedicated external unit. This keeps the electronics required to generate the low level signals used for thermocouple simulation as close as possible to the measuring input of the thermometer. This allows the signal to be as free from electrical noise as possible, and also eliminates errors caused by heat generated by surrounding electronics in the calibrator.
