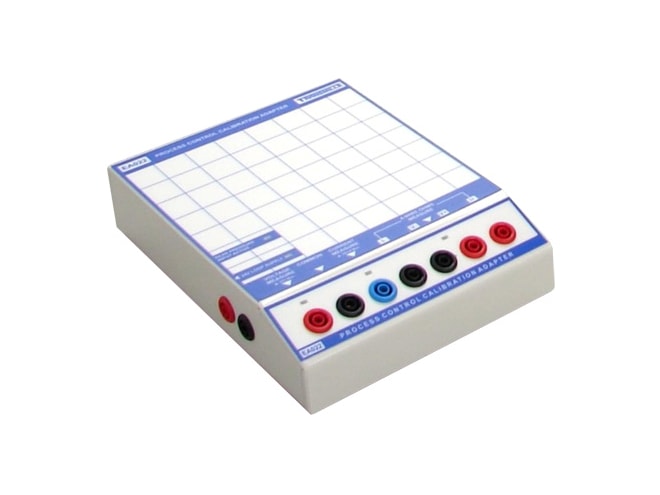

Transmille EA022 Process Control Calibration Adapter



Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET


  • Measure voltages up to 30V, currents up to 30mA and measure 2 and 4 wire resistance up to 10 kOhms

This product is an accessory for the following products:

Transmille 1000 Series Multifunction Calibrator
Ultra-portable multi-product calibrator featuring 80ppm accuracy with the functionality of calibrators twice the size

The Transmille EA022 Process Control Calibration Adapter enables calibration of source functions of process control instruments including voltage, current and resistance. This compact adapter also features a 24V loop supply and is the ideal addition to expand workload capabilities for the 1000 Series ultra portable calibrator.

The EA022 pallows the measurement of up to 30V DC, ideal for verification of output functions of process control meters. The EA022 also features the ability to measure up to 30mA directly with the 1000 series calibrator, making it a useful on-site compact tool for measuring the full range of process control calibrator outputs. The unit can also measure resistance up to 50kOhms using a 4 wire connection, enabling measurements of resistance and PRT outputs of process control calibrators.
