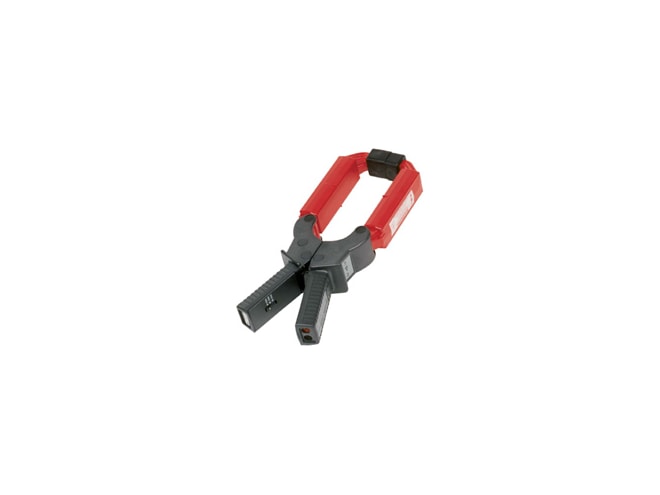

AEMC Model JM813 AC Current Probe

2110.93

AEMC

Not in stock. Usually ships in 4-6 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Nominal range: up to 3000AAC
  • Measurement range: 1 to 3600A
  • Transformation ratio 3000:3
  • Operating temp: 14 to 122°F (-10 to 50°C)
  • Output: 1mA/A
  • Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
  • Jaw opening 3.54" (90mm)

This product is an accessory for the following products:

AEMC Model MTX 162 PC Oscilloscopes
2-channel, 60MHz, oscilloscope with FFT and recorder
Select options for pricing
AEMC MTX 3290 Multimeter
Versatile True RMS multimeter with 1000V range and “1 key, 1 function” simplicity
$407.00
$386.65
AEMC MTX 3291 Multimeter
Versatile, high accuracy True RMS multimeter with 1000V range and “1 key, 1 function” simplicity and USB optical connector
$519.00
$493.05
AEMC MTX 3292 Multimeter
Versatile True RMS multimeter with graphical color display, USB optical connector, 1000 point memory and optional Bluetooth
$715.00
$679.25
AEMC MTX 3293 Multimeter
High accuracy True RMS multimeter with graphical color display, USB optical connector, 6500 point memory and optional Bluetooth
$815.00
$774.25
AEMC MX 57EX Multimeter
Intrinsically safe, TRMS digital multimeter with 0.025% accuracy
$995.00
$945.25
AEMC Model OX7102 III / OX7104 III Oscilloscopes
100 MHz oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer on voltage/current/power and recorder
RETIRED
AEMC MTX Series Multimeters
Multimeters with basic accuracy of 0.02%, graphic LCD with bargraph and push-button function selection
RETIRED
AEMC OX 7102-CII & OX 7104-CII Oscilloscopes
Oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer, and recorder in a single instrument
RETIRED

The AEMC Model JM813 AC Current Probe has Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current and power. The high quality magnetic cores and uniform windings provide for accurate measurements up to 3600AAC. The "squared" jaw permits multiple conductor or bus bar positioning. The Model JM813 provides excellent True RMS capabilities and reliable signal reproduction.

The Model JM813 works as a traditional current transformer providing current outputs (mA) over a broad range of transformation ratios. The Model JM813 is designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges.

Applications include:

  • Field testing
  • Electrical utility
  • HVAC
  • Industrial maintenance
  • Laboratory
  • Plant maintenance
