Starting at $4,336.65

Not in stock. Call for availability [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open 8:00am to 5:30pm ET

Features

  • Range: 115 feet from flange
  • Accuracy: ±0.1 inch (5402); ±0.4 in. (5401)
  • Non-contacting, making it virtually unaffected by process conditions
  • No moving parts, means little or no maintenance
  • 6 GHz and 26 GHz models available
  • 5-digit integral monitor
  • Supports both FOUNDATION fieldbus, and the analog 4-20 mA with superimposed digital HART.

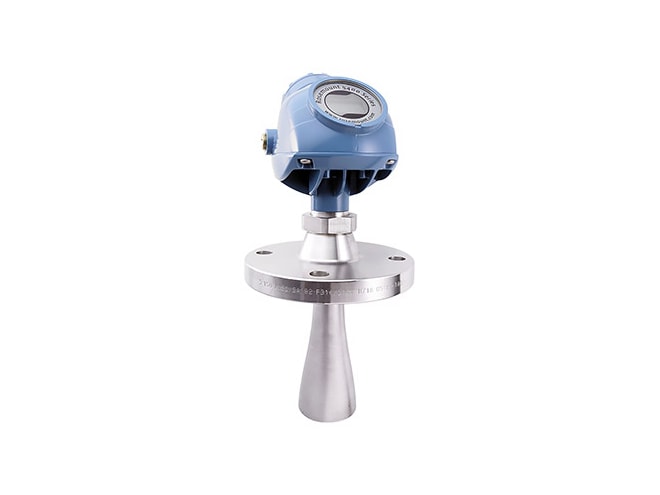

The Rosemount 5400 Series level transmitter is a reliable 2-wire radar level transmitter for liquids and slurries. Designed for outstanding performance in a wide range of applications and process conditions, the Rosemount 5400 Series level transmitter measures level directly and is unaffected by most fluid property changes, including temperature, pressure, vapor gas mixture, density, turbulence, bubbling / boiling, dielectric, pH, viscosity, or crystallization.

The Rosemount 5400 Series level transmitter features an innovative design that delivers best-in-class performance. The non-contact design makes it virtually unaffected by process conditions while no moving parts means little or no maintenance. In addition, the Rosemount 5400 Series level transmitter incorporates advanced signal processing and smart echo tracking features resulting in an accuracy of ±0.1 inch (±3 mm) with Model 5402 and ±0.4 in. (±10 mm) for Model 5401 for measurements up to 115 feet.

The Rosemount 5400 Series level transmitter includes a 5-digit integral monitor that can display level, distance, volume, signal strength, level rate, analog output current, % of range, and internal temperature. The Rosemount 5400 Series level transmitteris a loop-powered device that supports both FOUNDATION ™ fieldbus, and the analog 4-20 mA with superimposed digital HART ®. The Rosemount 5400 Series level transmitter also supports the latest interoperability standards and can easily be integrated into almost any host system.

The Rosemount 5400 Series level transmitter consists of two models: the 5401 is a low frequency transmitter (~ 6 GHz). The 5401 is best used in applications with extreme process conditions. The 5402 is a high frequency transmitter (~ 26 GHz). The 5402 is the preferred choice in most applications because its narrow radar beam offers greater mounting flexibility.

Service Options

Rosemount Start-up & Commissioning Service
Per day fee for installation verification and commissioning from Rosemount service technicians
$1,862.42
Rosemount On-Site Training
Hands-on, professional instruction from an experienced and certified service technician
$4,500.00

Accessories

Please consider these optional accessories.

Rosemount 3490 Universal Control Unit
Provides control functionality for any 4-20mA or HART compatible transmitter
$1,541.65
Rosemount 333 HART Tri-Loop Signal Converter
Convert a digital HART signal into three additional analog signals, easy to configure and install
$930.93
Rosemount 751 Field Signal Indicator
Field signal conditioner for Rosemount transmitters, LCD or analog meter
$623.06
Rosemount 1410 Wireless Gateway
Connects WirelessHART networks with host systems & data applications, offers network flexibility for remote indoor operations
$1,944.06
Rosemount 1420 Wireless Gateway
NEMA 4X gateway connects WirelessHART networks with host systems with the capacity for up to 100 devices
$5,119.87
Rosemount 775 Wireless THUM Adapter
Enables wireless capabilities for 2, 3, or 4-wire HART devices to remotely manage, monitor & gather data
$937.94
