Starting at $2,137.84

Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Reference Accuracy of 0.075%, optional 0.065%
  • Two-year stability of 0.10%, optional five-year stability
  • Rangeability of 100:1
  • Calibrated spans/ranges from 0.5 inH2O to 2000 psi (1,2 mbar to 276 bar)
  • Protocols available include 4-20 mA HART, FOUNDATION fieldbus, 1-5 Vdc HART Low Power
  • 316L SST and Hastelloy C-276 process wetted parts
  • Coplanar platform enables integration of primary elements, manifolds, and diaphragm seal solutions

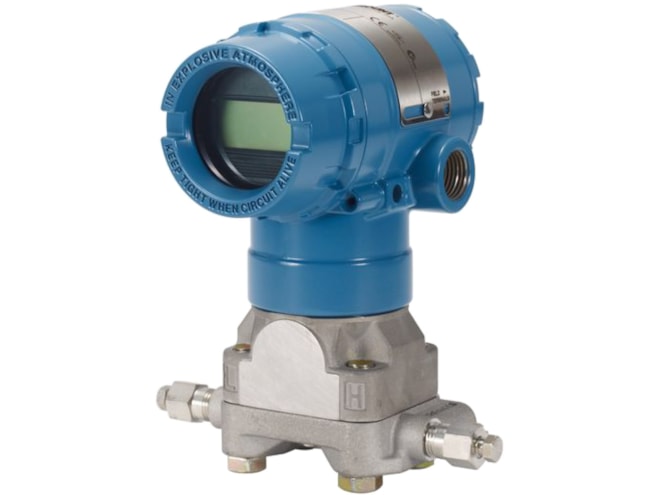

The Rosemount 2051C pressure transmitter offers differential and gauge pressure measurements with advanced capabilities designed to meet a wide range of applications and to easily integrate into existing or new installations.

The versatile Rosemount 2051C pressure transmitter has a standard reference accuracy of 0.075% along with 100:1 rangedown and extended two-year stability of 0.10% to provide confidence in your pressure measurements. For applications demanding even more precision, both an enhanced accuracy of 0.065% and 5-year stability are available as options.

The Rosemount 2051C pressure transmitter can utilize either traditional flanges or Rosemount's versatile Coplanar ™ platform designed to enable the best process connection for pressure, flow, and level applications. Right out of the box, the solution arrives factory calibrated, pressure-tested, and ready to install. The Rosemount 2051C smart pressure transmitter is also available in a number of materials and a wide range of hazardous area certifications are available.

Output options available to the Rosemount 2051C pressure transmitter include 4-20mA HART, Low Power HART, or FOUNDATION fieldbus output protocols. The Rosemount 2051C pressure transmitter offers so many options that it can be configured for any application.

Service Options

Rosemount Start-up & Commissioning Service
Per day fee for installation verification and commissioning from Rosemount service technicians
$1,862.42
Rosemount On-Site Training
Hands-on, professional instruction from an experienced and certified service technician
$4,500.00

Accessories

Please consider these optional accessories.

Rosemount 3490 Universal Control Unit
Provides control functionality for any 4-20mA or HART compatible transmitter
$1,541.65
Rosemount 0304 Conventional Manifold
Rosemount 304 Conventional Manifold Capable of both Traditional and Wafer Style Construction
$357.85
Rosemount 0305 Integral Manifold
Factory Assembled, leak tested, and calibrated Manifold
$592.12
In Stock
Rosemount 1199 FFW Flush Flanged Seal
The seal is mounted flush against a raised face (flush optional) process flange for general purpose applications with large line sizes
Select options for pricing
Rosemount 333 HART Tri-Loop Signal Converter
Convert a digital HART signal into three additional analog signals, easy to configure and install
$930.93
Rosemount 751 Field Signal Indicator
Field signal conditioner for Rosemount transmitters, LCD or analog meter
$623.06
Rosemount 1595 Conditioning Orifice Plate
Reduces pipe straight-run, direct-mount capability, 2 to 24" (50 to 600 mm), for differential pressure only
$558.18
Rosemount 701PGNKF SmartPower Module
3.6V intrinsically safe power module designed to withstand harsh environments & replace easily while in the field
$127.86
Rosemount 1410 Wireless Gateway
Connects WirelessHART networks with host systems & data applications, offers network flexibility for remote indoor operations
$1,944.06
Rosemount 1420 Wireless Gateway
NEMA 4X gateway connects WirelessHART networks with host systems with the capacity for up to 100 devices
$5,119.87
Rosemount 775 Wireless THUM Adapter
Enables wireless capabilities for 2, 3, or 4-wire HART devices to remotely manage, monitor & gather data
$937.94
