ifm efector SU Puresonic Series Ultrasonic Flow Meter

High precision flow and temperature sensor for monitoring ultra-pure water, water media, oils and coolants. Sanitary connections with SUH variants available.

Starting at $729.50

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-3 business days
Product Manual Product Specs (2 Files)

Features

  • Media: compressed air
    • ultra-pure water; water; water-based media; glycol solutions; oils, coolants
  • Flow measuring range: up to 264.18gpm
  • Temperature measuring range: -40 to 266°F
  • Pressure rating: up to 100bar
  • Color display:
    • 1.44in, 128px x 128px
    • 2 x LED, yellow
  • Communication interfaces: switching, analog, pulse signals, totalizer signal, IO-Link
  • Analog outputs: 1
  • Digital outputs: 0, 2
  • Materials (wetted):
    • Stainless steel / NBR (depending on variant)
  • Sanitary variants available (SUHxxx)
  • Enclosure rating: IP67 (IP69K for SUH)

The ifm efector SU Puresonic Series Ultrasonic Flow Meter offers highly precise measurement of flow rate and temperature in industries utilizing ultra-pure water, water media, oils and coolants. This covers a wide range of industrial applications including  potable water and chemical treatment plants.

The SUxx2x variants are compatible with 90% of conductive and non-conductive water media. The SUxx3x offerings support 35% glycol solutions and oils with viscosities from 7 to 68mm²/s at 40°C. SUxx5x models are blind ultrasonic transmitters (8–32 VDC) suitable for water, glycol, and oil, and include a configurable analog output (4 to 20 mA, 0 to 10V, or 0.5 to 4.5V). All SU models include a totalizer output for consumption monitoring.

The SUH flow meter variants are compatible with a range of sanitary applications with FDA and 3A sanitary approvals. The SUH2 and SUH4 variants support food oils from 30 to 68mm2/s at 40°C.

The straightforward pushbutton programming allows the user to easily configure output settings and units of measurement. A TFT display is integrated with most industrial models. LED indicators show switching output status at-a-glance. The IO-Link communication interface transmits process values for visualization for trending, analysis, and work order integration.

ifm efector EVC Series Female Cordset
ifm efector EVC Series Female Cordset

0.7 to 90m length connection cable with straight or angled M12 socket connector for industrial automation environments.

Starting at $15.50

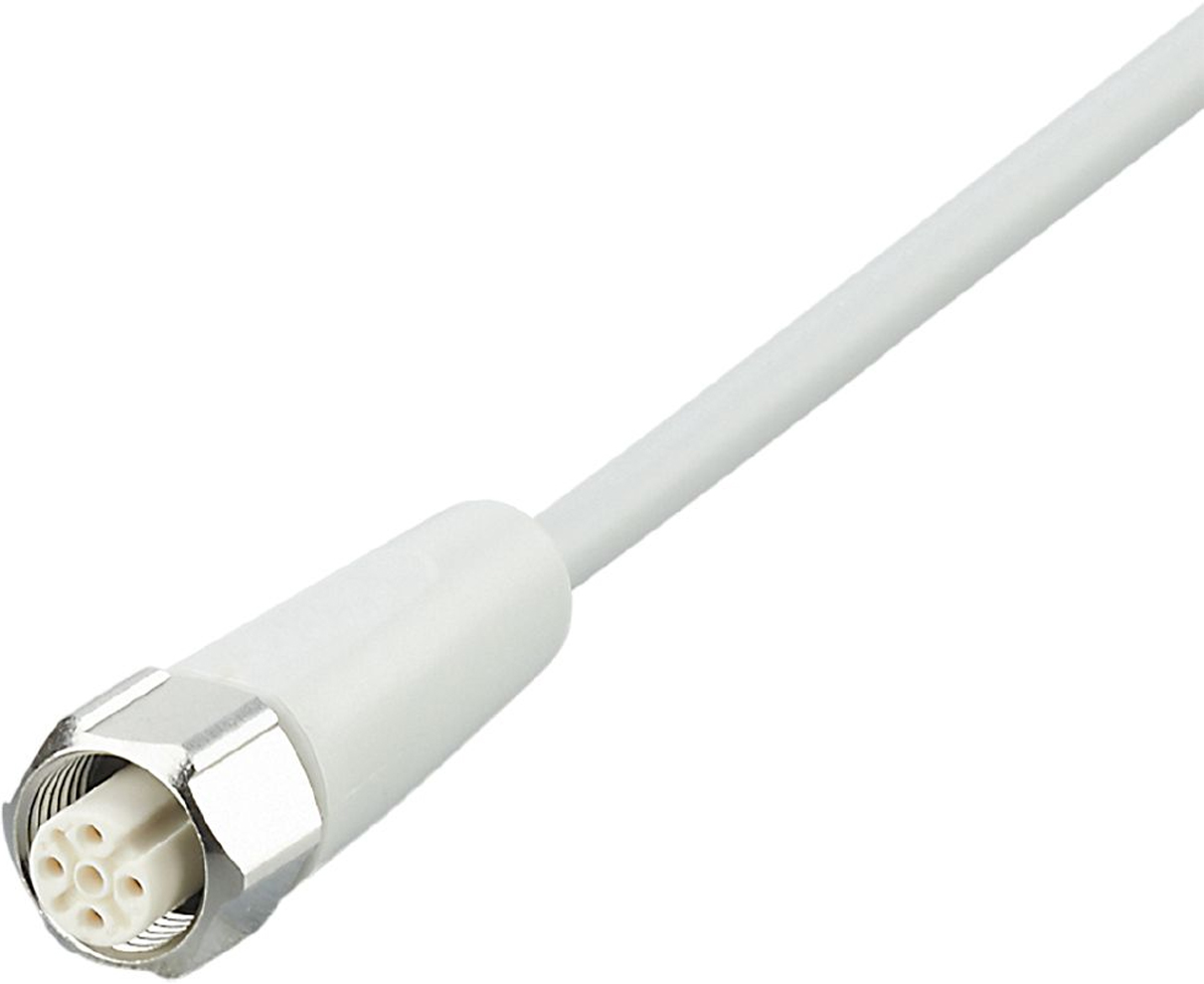

ifm efector EVF Series Female Cordset
