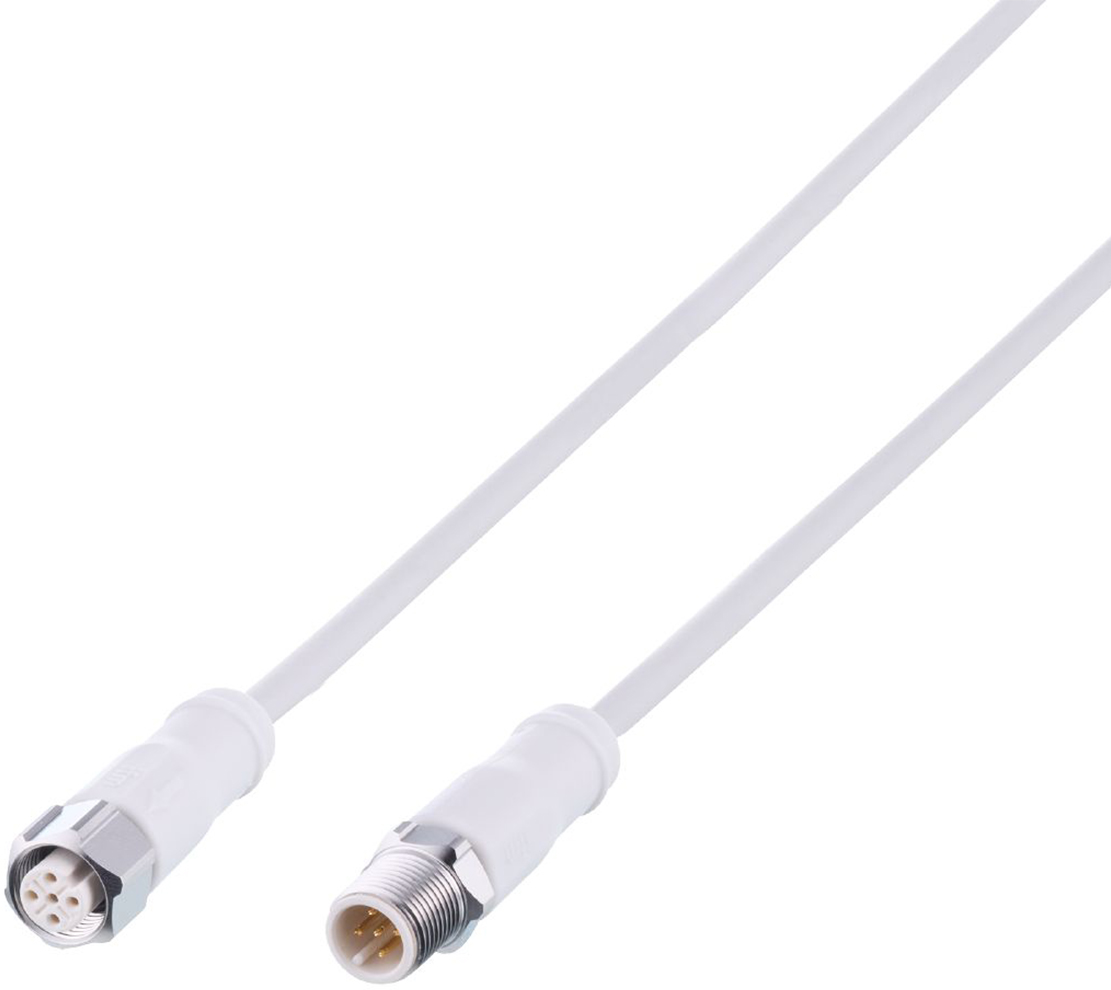

ifm efector EVF Series Patchcord

0.3 to 6.5m connection cable with M12 to M12 or M12 to Ethernet connections for food and beverage applications with aggressive chemicals.

Starting at $44.50

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-3 business days
Product Specs (11 Files)

Features

  • MPPE cable jacket material
  • M12 connector, code A or Code D
  • RJ45 Ethernet connection available
  • IO-Link compatible
  • Stainless steel coupling nut material
  • 3, 4, or 5 wires
  • Gold-plated contacts
  • 0.3 to 6.5m cable length
  • -25 to 100°C temperature range
  • LED status indicators are available with some cables
  • UL, CE, REACH/RoHS declaration

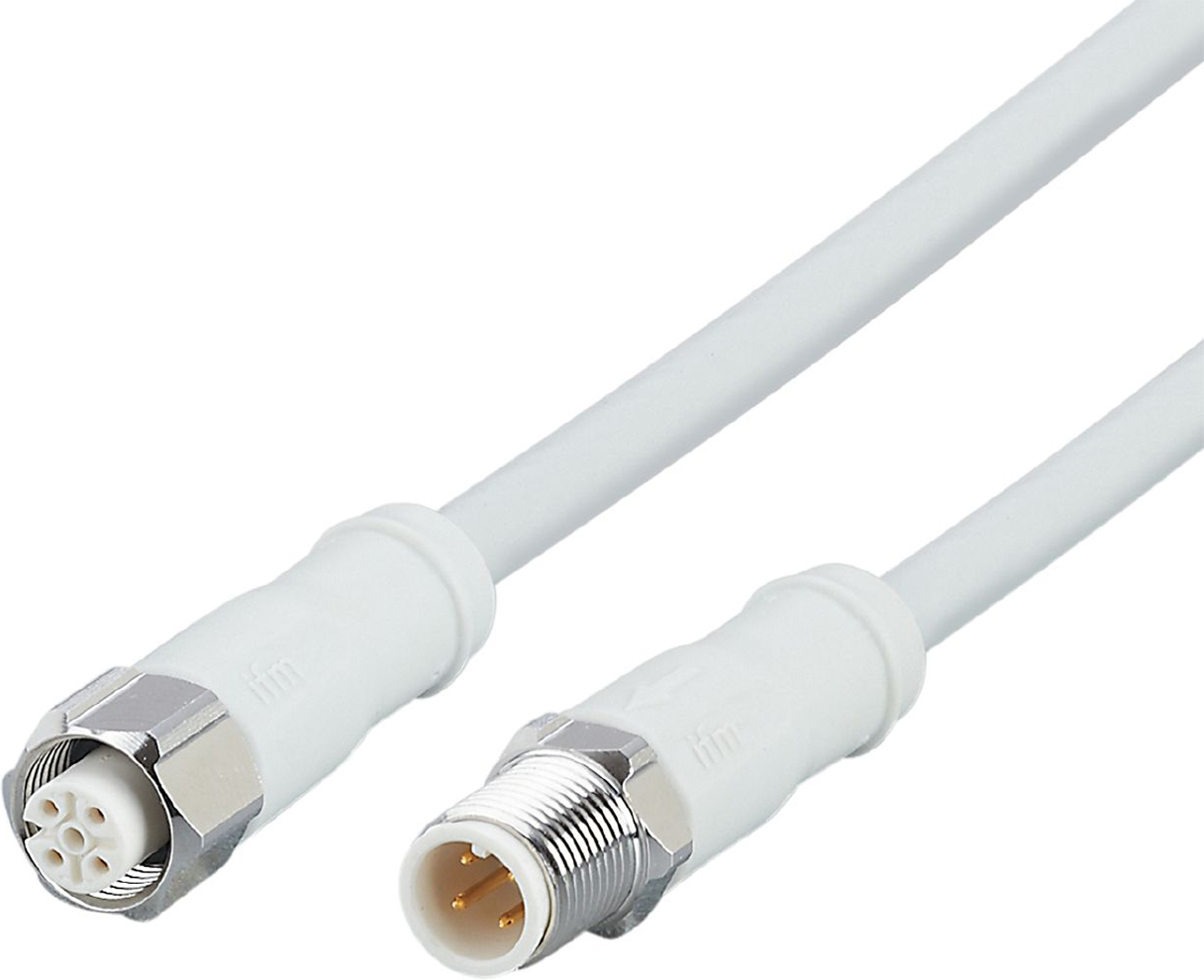

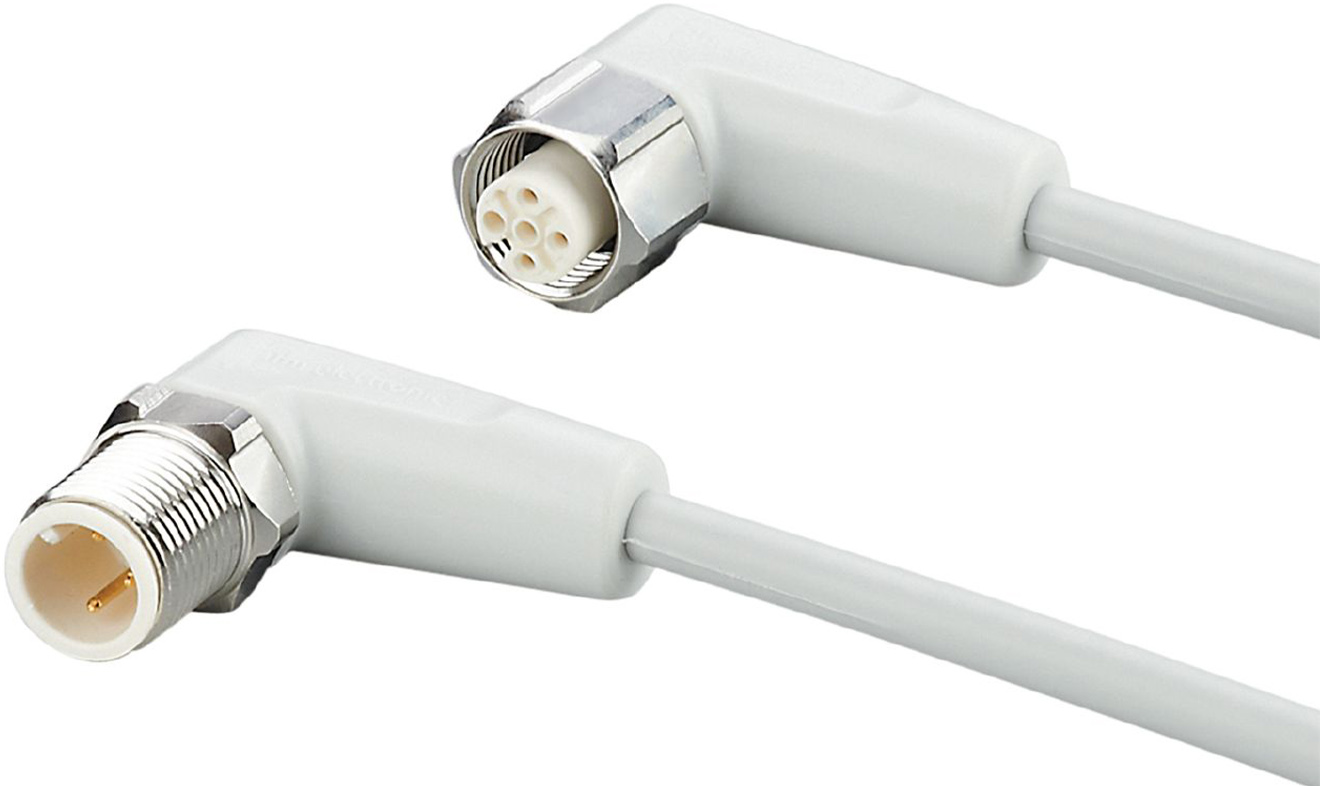

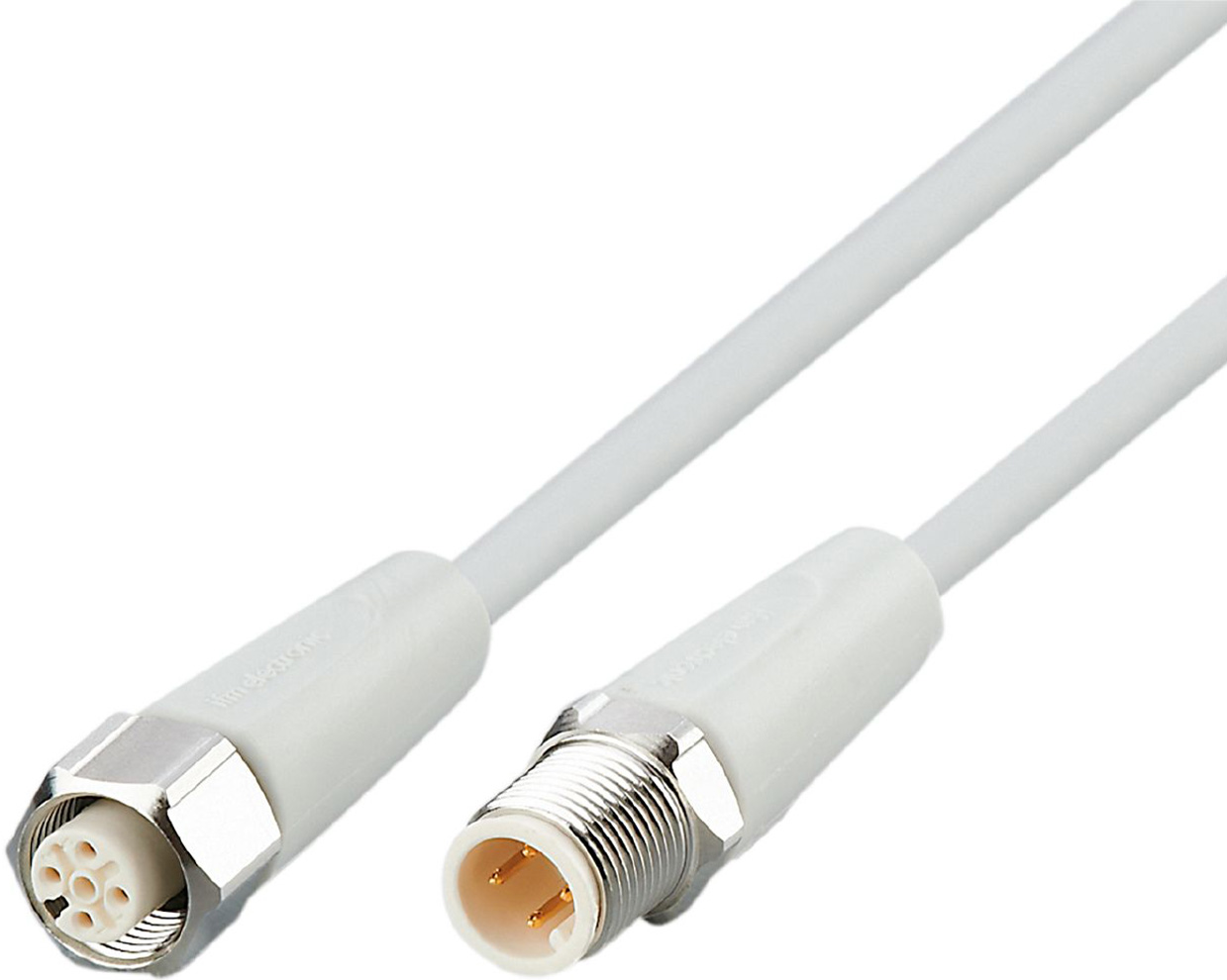

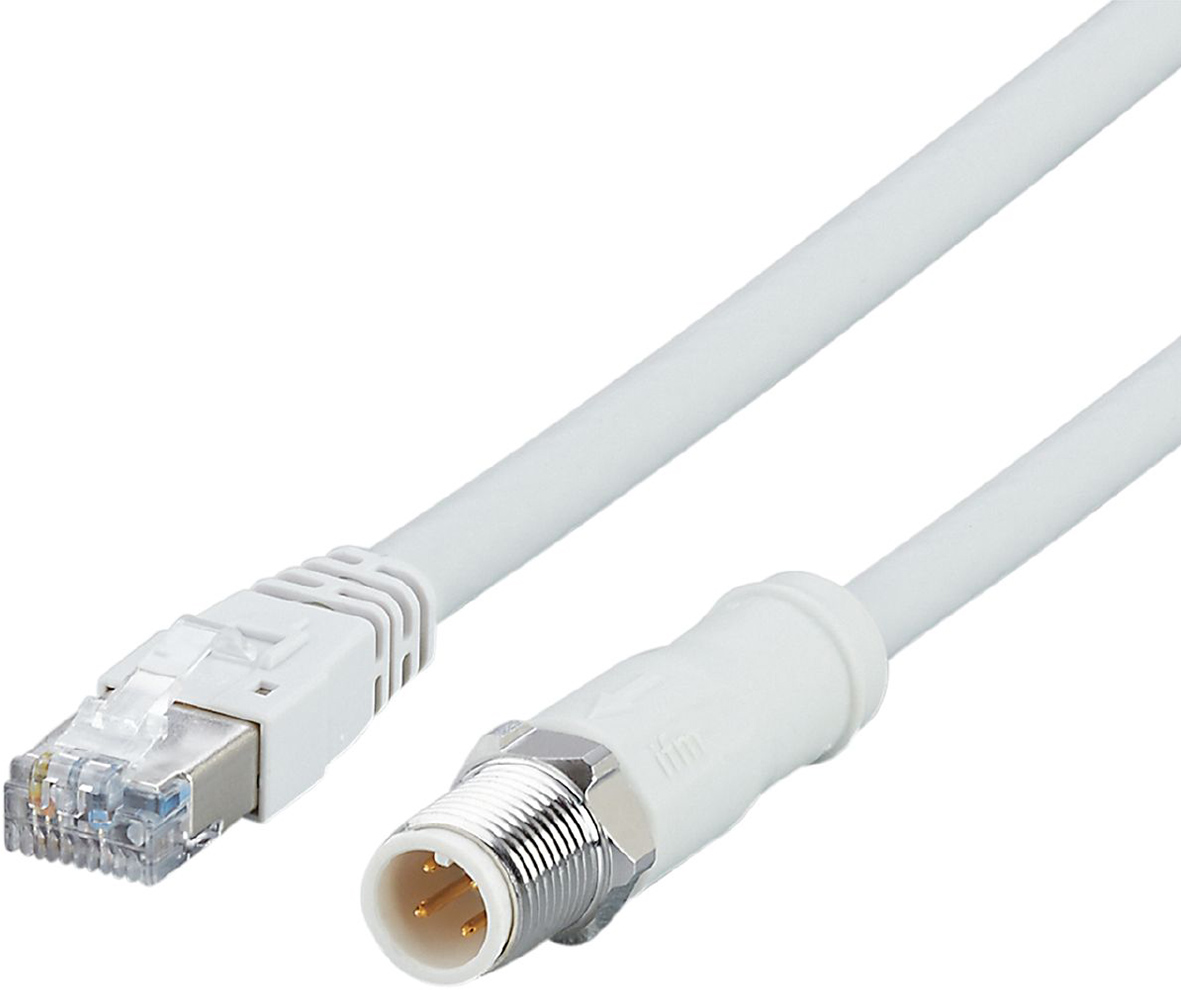

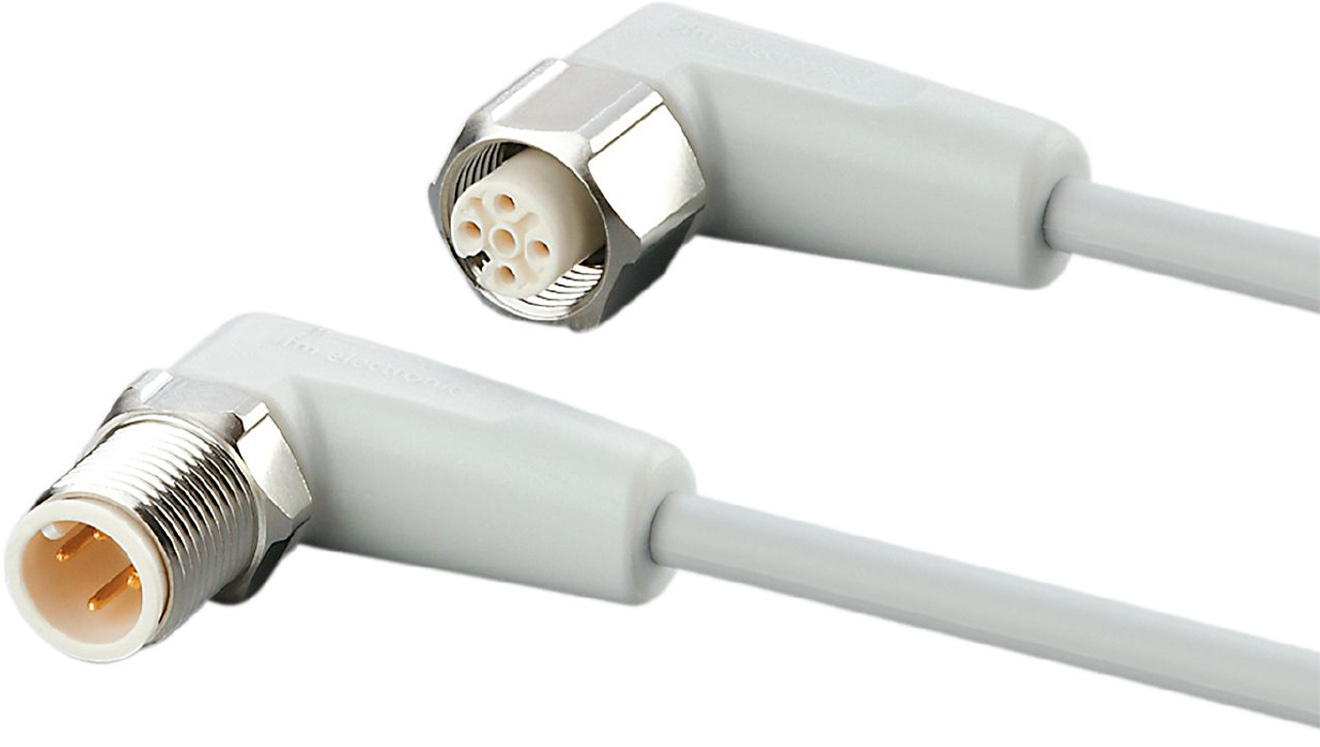

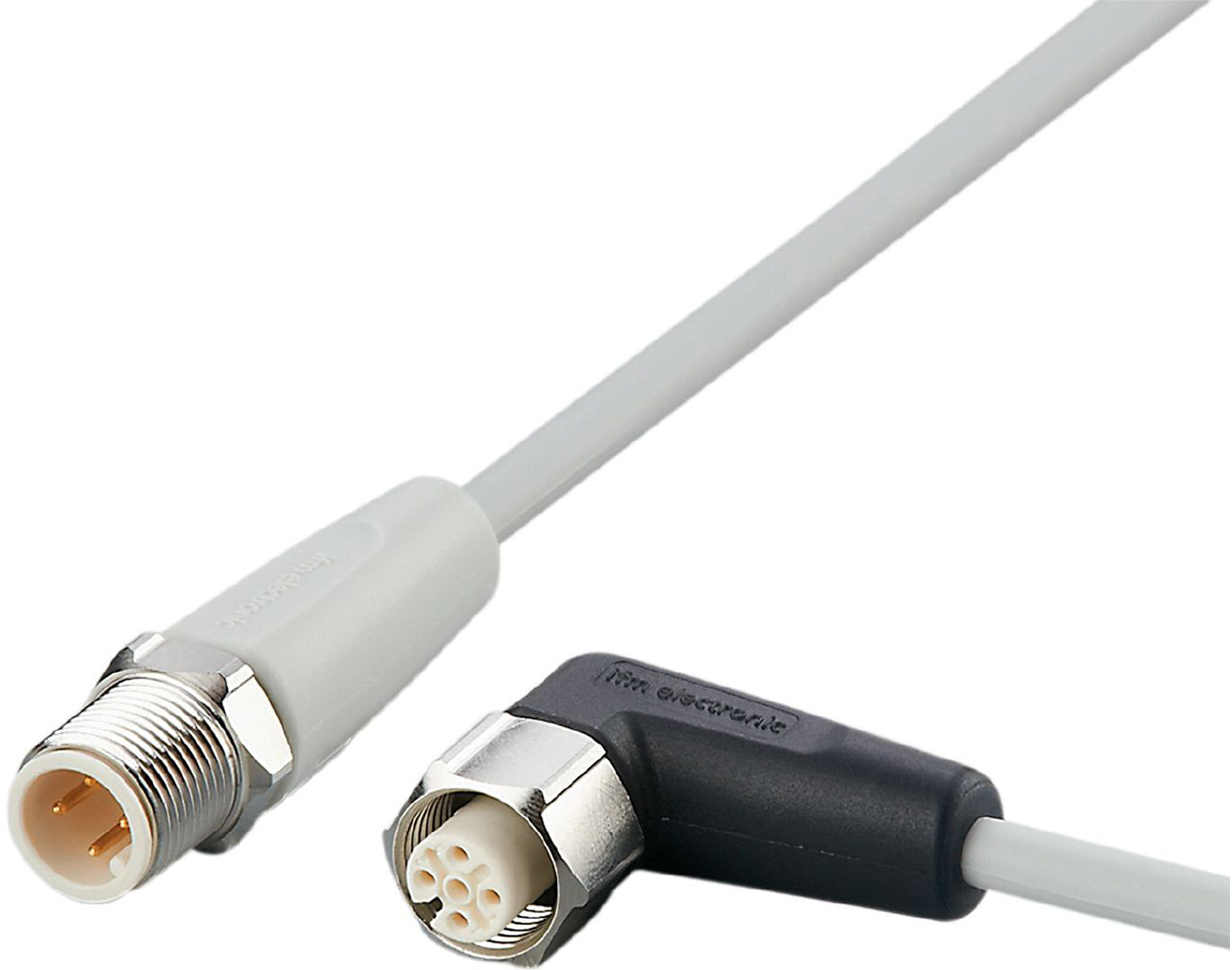

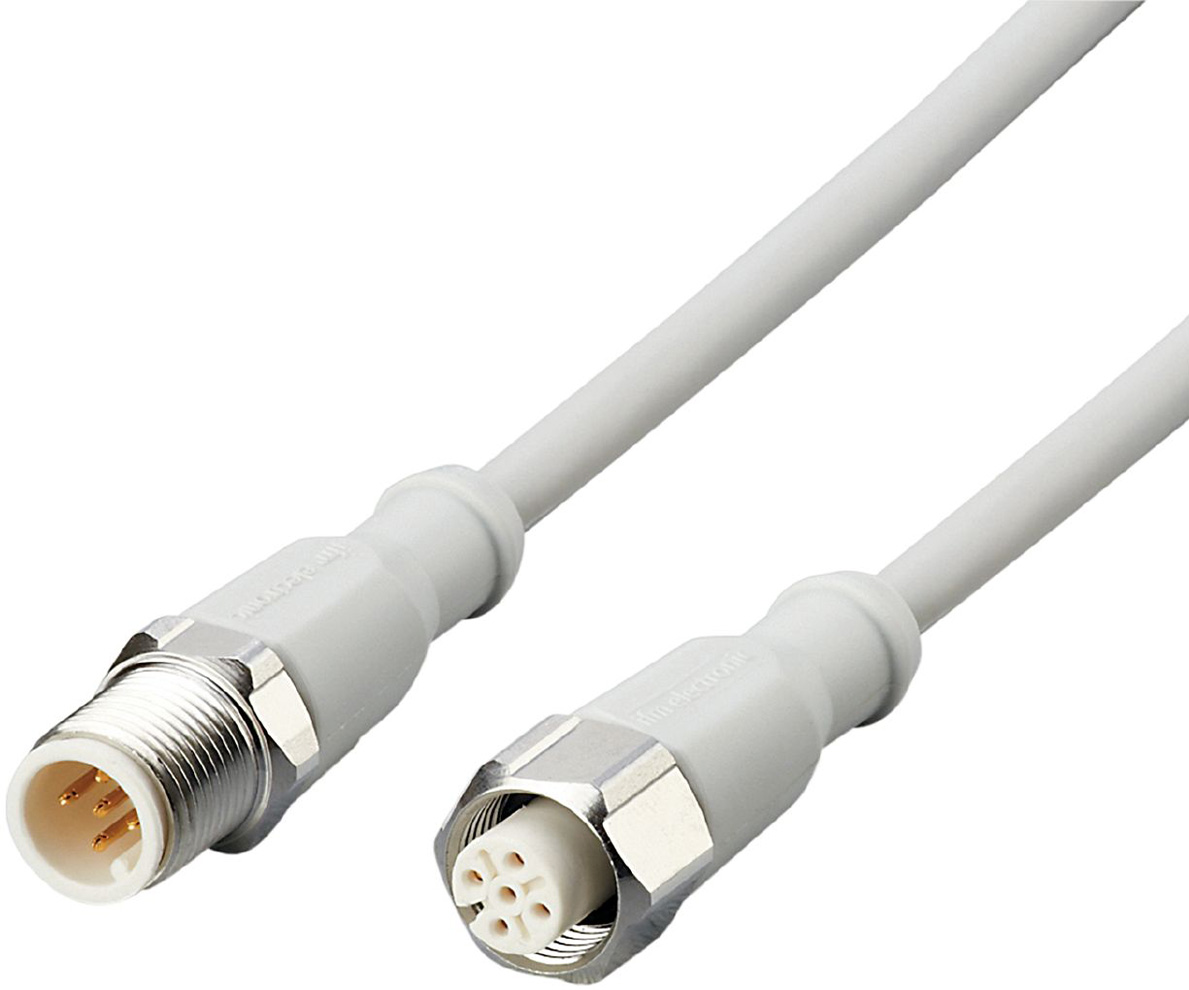

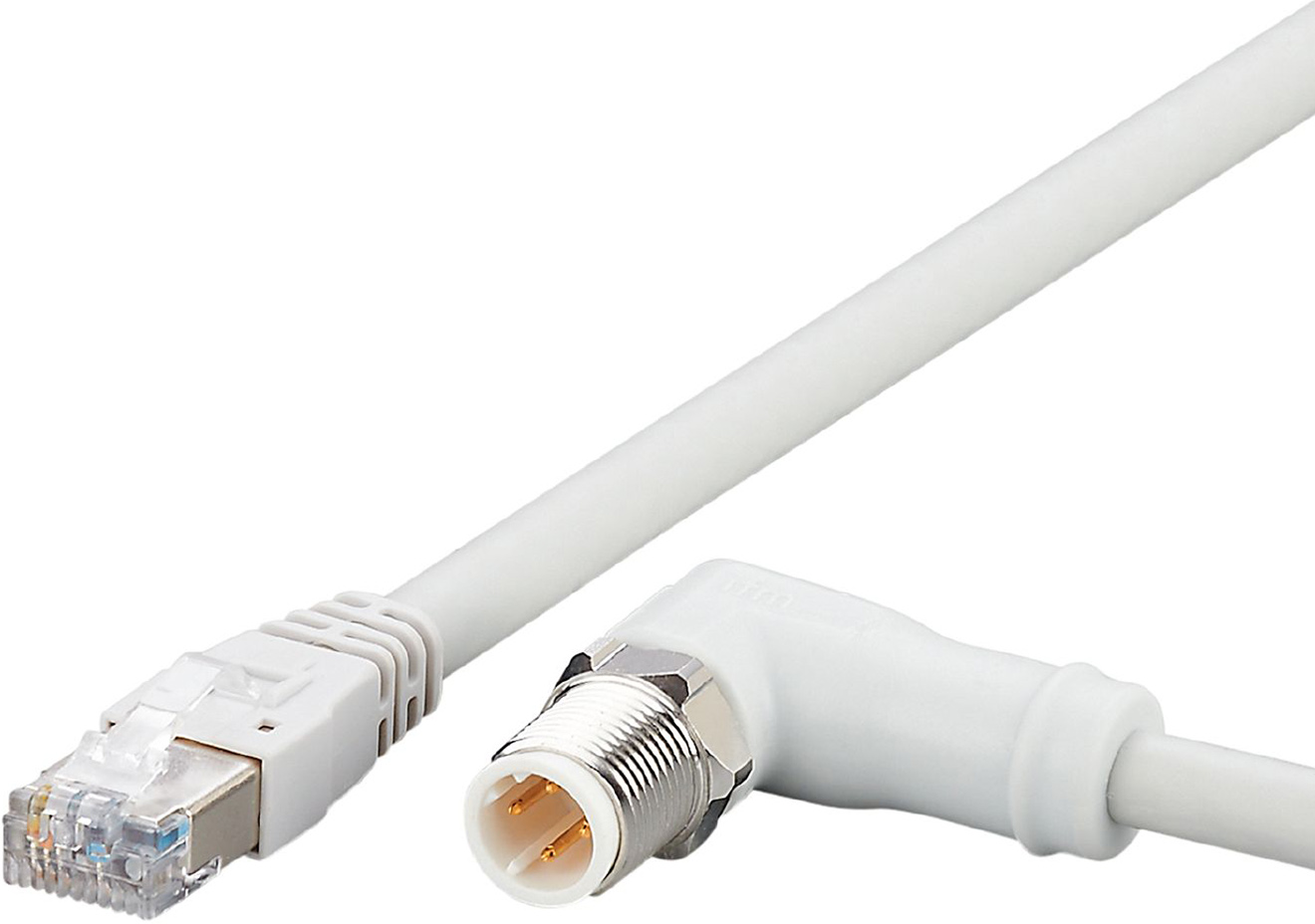

ifm efector EVF Series Patchcord is a durable connection cord designed for use in sanitary and wet areas in the food industry. It features a cable jacket made from halogen-free, flame-retardant MPPE material and available with 3, 4, or 5 wire cores and up to 6.5m cable lengths. The EVF series offers permanent, reliable sealing even when mounted without tools. This cable is available with a straight or angled M12 plug connector on one end and the option of an additional M12 socket or RJ45 Ethernet connection on the other. M12 connections have a locking coupling ring that provides vibration and shock resistance.
