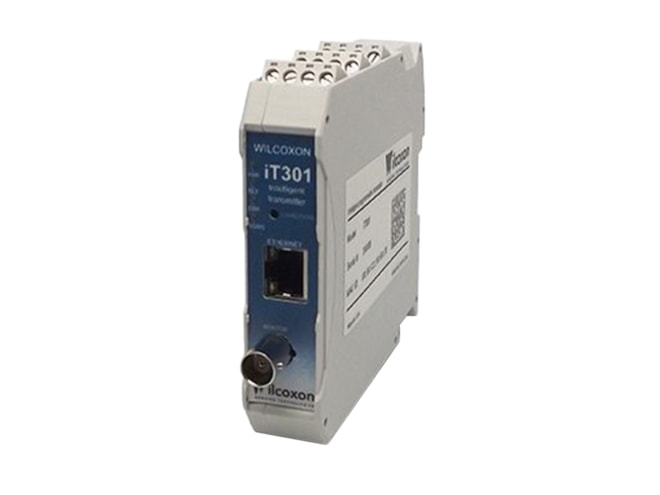

Wilcoxon Sensing Technologies iT301 Vibration Transmitter

4-20mA field-configurable transmitter with a 0.2Hz to 20,000Hz signal measurement range.

Features

  • Sensitivity range:
    • Acceleration: 9 to 11,000mV/g
    • Velocity: 9 to 11,000mV/in/sec
    • Temperature: 10mV/°C
  • ±10VAC maximum dynamic signal
  • 0.2Hz to 20kHz (-3dB to 0.1 dB) frequency response
  • 200 to 20,000Hz fmax range
  • >90dB dynamic range
  • +24VDC, 4.5mA IEPE power source

The Wilcoxon Sensing Technologies iT301 vibration transmitter measures and processes dynamic vibration signals and provides a way to connect a standard vibration sensor to a PLC, DCS, or SCADA system. The transmitter is optimized for process control and monitoring and accepts input from accelerometers (single and dual output) and piezovelocity sensors. The input signal is split into two independent processing bands that allow the transmitter to measure real-time sensor bands, BOV, signal true peak, and temperature. The band results can be mapped to a pair of 4-20mA analog outputs. The built-in web browser allows custom configuration of bandwidth and detection type and the high/low alarms are mappable to a single NC/NO relay. The iT301 is MODBUS/RS485 enbabled and field-configurable.

The iT301 vibration transmitter is manufactured in an approved ISO 9001 facility.

Applications

  • Wind power
  • Pulp and paper plants
  • Power generation plants
  • Food and beverage manufacturing
  • Metals processing
  • Mining
  • Nuclear power plants
  • Oil and gas processing
  • Pharmaceutical manufacturing
  • Rail operations
  • Water and wastewater treatment plants
