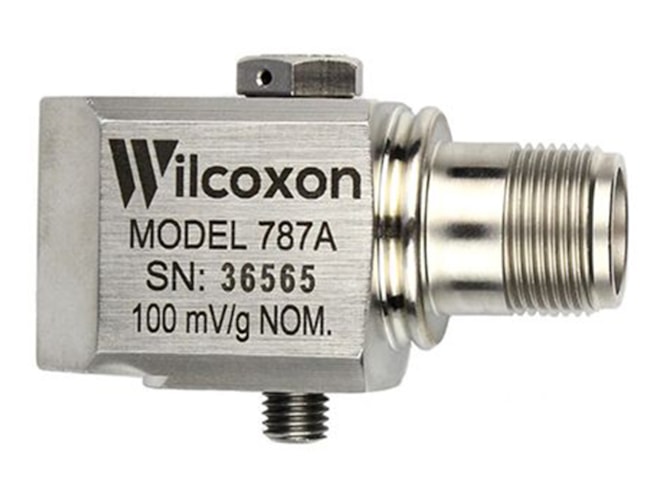

Wilcoxon Sensing Technologies 787A Series Accelerometer

Case isolated side exit accelerometer, 100 mV/g with ±5% sensitivity tolerance, API 670 compliant.

Features

  • 80g peak acceleration range
  • 500g peak vibration limit
  • 5,000g peak shock limit
  • Frequency response:
    • ±10%: 1 to 5,000Hz
    • ±3 dB: 0.5 to 10,000Hz
  • 22kHz resonance frequency
  • Power requirements:
    • Voltage source: 18 - 30VDC
    • Current regulating diode: 2 - 10mA
  • 100Ω max output impedance
  • Hermetic sealing
  • MIL-C-5015 connector
  • PZT ceramic / shear sensing element

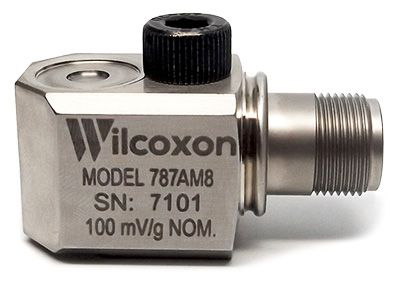

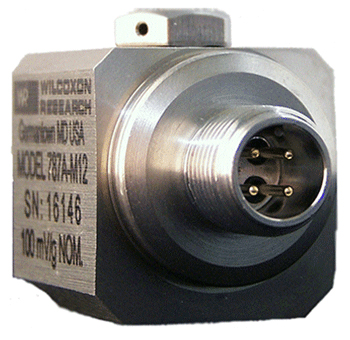

The Wilcoxon Sensing Technologies 787A series accelerometer is suitable for a wide range of industrial applications and is constructed with 316L stainless steel. The 787A's rugged, hermetically sealed design has a 1/4-28 captive hex head screw with a 0.046in diameter safety wire hole for mounting and a 2 pin MIL-C-2015 style connector. M12 models feature a M6 captive screw for mounting and M12 4-pin connector. M8 models have a M8 captive hex head screw with 0.046in diameter safety wire hole for mounting and a R6 type connector.

The 787A is case isolated and features ESD, overload, and reverse wiring protection. It is API 670 compliant and is manufactured in an ISO 9001 facility.

Wilcoxon Sensing Technologies VERSIL406 Mounting Epoxy
Wilcoxon Sensing Technologies VERSIL406 Mounting Epoxy

1 packet of adhesive for mounting 5 to 7 sensors.

In Stock
$25.85
Wilcoxon Sensing Technologies MD055 Mounting Base
Wilcoxon Sensing Technologies MD055 Mounting Base

Two-pole magnetic mounting base with 55lbf pull strength and a 1/4-28 tapped hole.

In Stock
$178.46
Wilcoxon Sensing Technologies SF8 Mounting Pad
Wilcoxon Sensing Technologies SF8 Mounting Pad

1in diameter cementing pad for use with 1/4-28 compatible sensors.

In Stock
$14.77
Wilcoxon Sensing Technologies CB Series Termination Box
Wilcoxon Sensing Technologies CB Series Termination Box

2 and 4 channel cable termination box with NEMA4X/IP66 enclosure and BNC connector outputs.

Some Models in Stock
Starting at $233.85
Wilcoxon Sensing Technologies R6WP Cable
Wilcoxon Sensing Technologies R6WP Cable

2-conductor coiled cable assembly with polyurethane jacket, MIL-C-5015 connector to BNC termination connector for compatibility with data collectors.

In Stock
$150.77
Wilcoxon Sensing Technologies R6W Series Cable
Wilcoxon Sensing Technologies R6W Series Cable

High temperature (up to 200°C), twisted pair cable assembly with Teflon jacket, MIL-C-5015 connector and blunt cut cable end.

Some Models in Stock
Starting at $80.00
Wilcoxon Sensing Technologies VibraLink Lite Enclosure
Wilcoxon Sensing Technologies VibraLink Lite Enclosure

12 channel switchbox with NEMA4X/IP66 rated fiberglass enclosure and screw terminal blocks.

In Stock
$934.62
Part Number Price Available

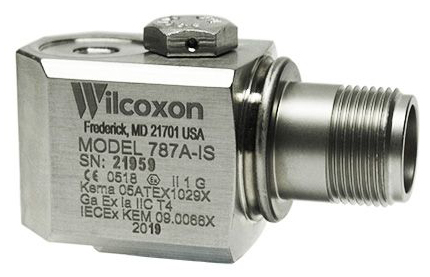

787A-IS
Show Configuration
$375.00 4 in stock
787A
Show Configuration
$275.00 3 in stock
787A-D2
Show Configuration
$461.54 3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5-7 business days". Click here to select options
