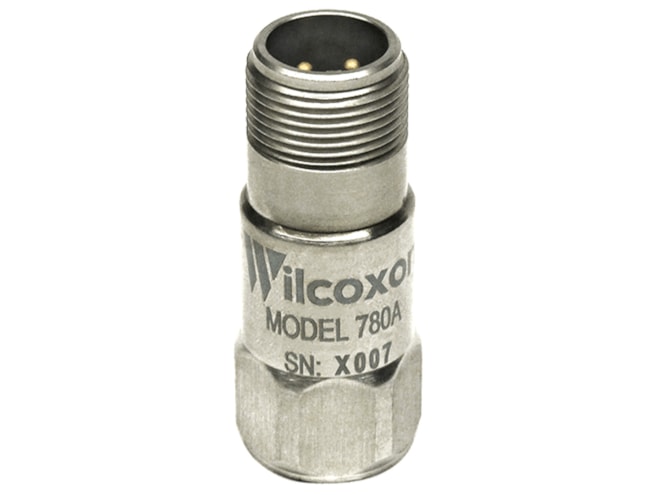

Wilcoxon Sensing Technologies 780A Series Compact Accelerometer

Compact general purpose accelerometer with 10 or 100mV/g sensitivity, ±5% sensitivity tolerance, API 670 compliant.

Features

  • Dynamic vibration (IEPE) sensor output
  • Sensitivity:
    • 780A, 780A-D2, 780A-IS: 100mV/g
    • 780A-10: 10mV/g
  • ±5% sensitivity tolerance
  • 0.5 to 14,000Hz frequency response
  • Hazardous area approvals:
    • 780A: Non-approved
    • 780A-10: Non-approved

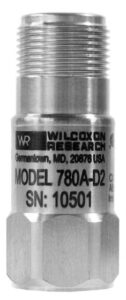

    • 780A-D2: Class I, Div 2, Zone 2; ATEX II 3G Ex nA
    • 780A-IS: Class I,II,III, Div 1, Zone 0; ATEX II 1G Ex ia; IECEx Ga Ex ia
  • PZT, shear sensing element design
  • MIL-C-5015, 2-pin connector
  • 80g peak FS range
  • 30kHz resonance frequency
  • 316L stainless steel construction
  • SF6 mounting stud included

The Wilcoxon Sensing Technologies 780A series compact accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The 780A is case isolated, and has a 100mV/g or 10mV/g sensitivity, and ±5% sensitivity tolerance.

The 780A is API 670 compliant and is manufactured in an ISO 9001 facility.

Wilcoxon Sensing Technologies R6W Series Cable
Wilcoxon Sensing Technologies R6W Series Cable

High temperature (up to 200°C), twisted pair cable assembly with Teflon jacket, MIL-C-5015 connector and blunt cut cable end.

Some Models in Stock
Starting at $80.00
Wilcoxon Sensing Technologies R6WP Cable
Wilcoxon Sensing Technologies R6WP Cable

2-conductor coiled cable assembly with polyurethane jacket, MIL-C-5015 connector to BNC termination connector for compatibility with data collectors.

In Stock
$150.77
Wilcoxon Sensing Technologies VERSIL406 Mounting Epoxy
Wilcoxon Sensing Technologies VERSIL406 Mounting Epoxy

1 packet of adhesive for mounting 5 to 7 sensors.

In Stock
$25.85
Wilcoxon Sensing Technologies MD055 Mounting Base
Wilcoxon Sensing Technologies MD055 Mounting Base

Two-pole magnetic mounting base with 55lbf pull strength and a 1/4-28 tapped hole.

In Stock
$178.46
Wilcoxon Sensing Technologies SF8 Mounting Pad
Wilcoxon Sensing Technologies SF8 Mounting Pad

1in diameter cementing pad for use with 1/4-28 compatible sensors.

In Stock
$14.77
Wilcoxon Sensing Technologies CB Series Termination Box
Wilcoxon Sensing Technologies CB Series Termination Box

2 and 4 channel cable termination box with NEMA4X/IP66 enclosure and BNC connector outputs.

Some Models in Stock
Starting at $233.85
Wilcoxon Sensing Technologies VibraLink Lite Enclosure
Wilcoxon Sensing Technologies VibraLink Lite Enclosure

12 channel switchbox with NEMA4X/IP66 rated fiberglass enclosure and screw terminal blocks.

In Stock
$934.62
Part Number Price Available
780A
Show Configuration
$220.00 5 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5-7 business days". Click here to select options
