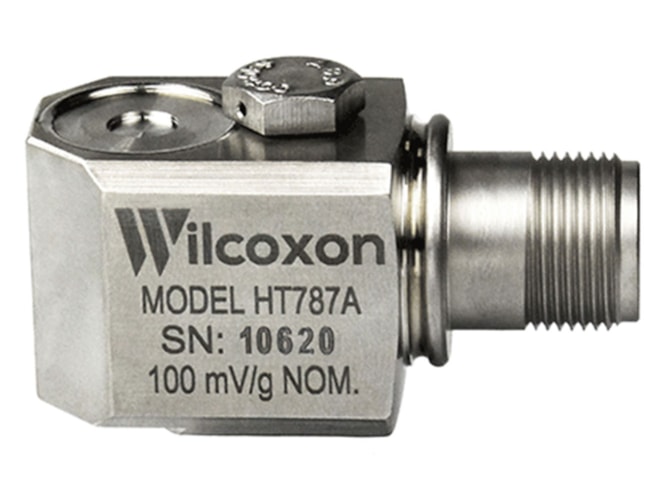

Wilcoxon Sensing Technologies HT787A Accelerometer

Side exit accelerometer for high temperatures (-58 to 329°F), 100 mV/g with ±5% sensitivity tolerance.

Features

  • 80g peak acceleration range
  • 500g peak vibration limit
  • 5,000g peak shock limit
  • Frequency response:
    • ±10%: 1 to 5,000Hz
    • ±3 dB: 0.5 to 10,000Hz
  • 22kHz resonance frequency
  • Power requirements:
    • Voltage source: 18 - 30VDC
    • Current regulating diode: 2 - 10mA
  • 100Ω max output impedance
  • Hermetic sealing
  • MIL-C-5015 connector
  • PZT ceramic / shear sensing element

The Wilcoxon Sensing Technologies HT787A accelerometer is suitable for a wide range of industrial applications and is constructed with 316L stainless steel. The HT787A's rugged, hermetically sealed design has a 1/4-28 captive hex head screw with a 0.046in diameter safety wire hole for mounting and a 2 pin MIL-C-2015 style connector. The HT787A is case isolated and features ESD, overload, and reverse wiring protection.

The HT787A is API 670 compliant and is manufactured in an ISO 9001 facility.
