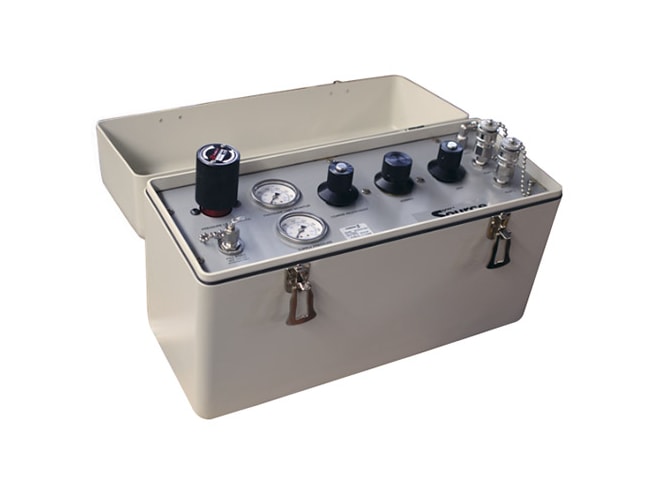

Condec Source 3000 Pressure Source

Name: Condec Source 3000 Pressure Source
Availability: InStock

Portable pressure source provides clean & dry pressure up to 3000 psi.

Select options for pricing

View Company Reviews

Manufactured

By Condec

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

Self-contained nitrogen cylinder
"Overpressure Protection" regulator
Two ports to connect to unit under test as well as a precision calibrator
Works with all pressure calibrator models
Precisely dial into required pressures with patented valve assembly
15.2 cubic foot nitrogen at 3000 psi
Aluminum carrying case
Front panel gauges inform operator of internal cylinder pressure level

The Condec Source 3000 is a quick, accurate, and portable pressure source, designed for extended use wherever your job takes you.

Fully pneumatic, the Condec Source 3000 pressure source offers a clean and dry pressure up to 3000 psi. The Condec Source 3000 pressure source's pressure generator is equipped with a large-capacity cylinder that ensures you won't run out of nitrogen in the middle of a job. It also eliminates the inconvenience and physical stress of hand pumps. The Condec Source 3000 pressure source has two ports for connecting to a measuring device and virtually any electronic calibrator.

The portable pneumatic Condec Source 3000 pressure source is a unique device that incorporates a pressure vernier to allow you to dial in exact pressure readings, which eliminates the risk of costly damage from overshoot. The Condec Source 3000 pressure source is housed in an aluminum carrying case that provides lightweight portability as well as protection in industrial environments.

The Source 3000 comes with multiple output ports and fill port combinations:

The 98916 comes with the Source 3000; swagelok QC4 quick-disconnect female output (test) ports and QC4 quick-connect male fill port (buna-N seals)
The 98917 comes with the Source 3000; Ralston male quicktest/check-valve output (test) ports and standard 7/16 -20 AN male fill port (buna-N seals)
The 131385 Source 3000; 7/16 -20 AN male output (test) ports and fill port (buna-N internal seals) Note: each port requires one cheat seal PN 54854

Spec Sheets

Manuals

Condec Source 3000 Pressure Source Manual PDF (306 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Condec 54854 Cheat Seal

Additional cheat seal (used with fill port hose 78939).

Call for pricing

Accessories

Please consider these optional accessories.

Condec 106594 Adapter Assembly

Test port quick-disconnect adjustable adapter assembly .

Call for pricing

Condec 58483 Pressure Trap

Pressure Trap for the UPC5000 and UPC5010 .

Call for pricing

Condec 78939 Fill Port Hose

Fill port hose (input) 5 ft. long hose with CGA-580 male nipple on one end and 7/16-20 JIC 37º female AN-4 swivel on other end.

Call for pricing

Condec 67248 Output Test Port

Output (test) port 5 ft. long hose with quick-disconnect plug (SST) on one end and 7/16-20 JIC 37º female AN-4 swivel on other end.

Call for pricing

Condec 107288 Output (test) Port

Quick-disconnect adjustable adapter assembly, male coupling body to female quick disconnect swivel other end, 3000 psig working pressure.

Call for pricing

Condec 130239 Output (test) Port

Output (test) port quick-disconnect fitting, male coupling body/female 1/8 NPT, 6500 psig working pressure.

Call for pricing

Condec 55394 Output Test Port

Output (test) port quick-disconnect fitting, male coupling body/female 1/4 NPT,5000 psig working pressure.

Call for pricing

Condec 55294 Test Port

Test port quick-disconnect with 1/4 NPT female.

Call for pricing

Part Number	Output Port / Fill Port Options	Price	Available
65315 Show Full Configuration	Source 3000 pneumatic pressure source only	Call for pricing	1 in stock
