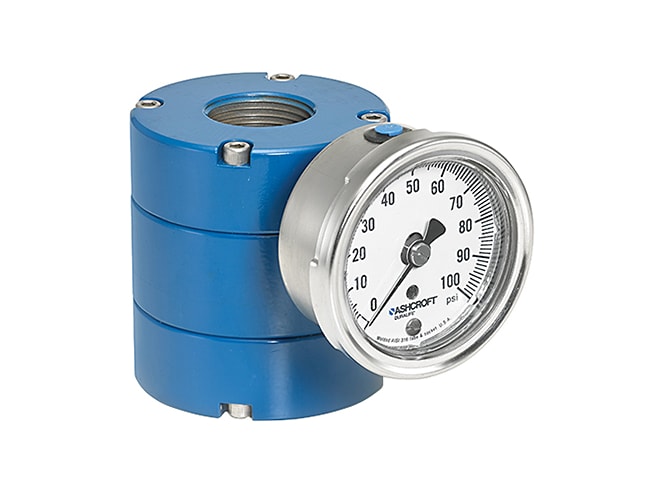

Ashcroft 82 Threaded Isolation Ring
Starting at $351.06

Not in stock. Usually ships in 3-4 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 360-degree sensing flexible inner liner
  • 1/2 through 2 NPT process connection size
  • Needle valve dampens pulsation effects
  • 1/4 or 1/2 NPT instrument connection
  • 150 psi pressure rating
  • Non-clogging and low maintenance

This product is an accessory for the following products:

Ashcroft A Series Explosion Proof Pressure Switch
Miniature, explosion proof, stainless steel construction, pressure ranges up to 7500 psi, field adjustable or factory set
$306.34
Ashcroft A Series Pressure Switches
Compact, 316 stainless steel, up to 7500 psi
$149.16
Ashcroft B Series Pressure Switch
Watertight NEMA 4 or explosion proof NEMA 7 enclosure with optional welded design
$188.54
In Stock
Ashcroft B Series Temperature Switch
Watertight NEMA 4 or explosion proof NEMA 7 enclosure and optional welded design
$394.97
Ashcroft DDS Pressure Switch
Rugged pressure switch designed to sense low differential pressures between high pressure sources
$1,110.51
Ashcroft F Series Pressure Switches
Compact pressure switch with explosion-proof body & hermetically sealed watertight anodized aluminum body
$375.88
Ashcroft G Series Pressure Switch
316 SS construction, watertight NEMA 4X, IP65 enclosure
$423.60
Ashcroft G Series Temperature Switch
Ideally suited for harsh & corrosive environments with 316 SS construction & watertight NEMA 4X IP65 enclosure
$630.03
Ashcroft H Series Hydraulic Pressure Switches
Designed for hydraulic control systems, watertight NEMA 4X IP66 enclosure
$214.79
Ashcroft L Series Pressure Switch
Easy to use & readily retrofits to virtually all process
$270.88
In Stock
Ashcroft L Series Temperature Switch
Retrofits to virtually all process, for industrial & OEM applications with a watertight NEMA 4X IP66 enclosure
$478.49
Ashcroft N Series Pressure Switches
Reliable & long lasting for high pressure applications with 1.0% accuracy
$507.14
Ashcroft P Series Pressure Switches
For tough applications, designed for user reliability & safety
$519.06
Ashcroft P Series Temperature Switch
Explosion-proof NEMA 7/9 IP55 enclosures with dual-chamber design for improved safety
$727.90

The Ashcroft 82 threaded isolation ring is designed to protect measuring devices such as pressure gauges, switches and transducers from direct contact with process media. The isolation ring is threaded in-line with process piping, and uses a 360-degree flexible liner that eliminates the potential for clogging or fouling while transmitting pressure hydraulically to the instrument. The "ring" design eliminates process accumulation, assuring accurate pressure readings.

Ashcroft 82 Threaded Isolation Ring Applications

  • Water and wastewater
  • Mining
  • Pulp and paper
  • Chemicals
