Mensor CPH7000 Process Calibrator
Portable process calibrator, generates pressures up to 360 psi, 0.025% accuracy, color touchscreen display
Need Help? Call a Calibration Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Pressure generation: 12.3 to 360 psi (-0.85 to 25 bar)
- 0.025% accuracy
- Color touchscreen display
- Data logging up to five measurements
- Frequency range of 2,400 to 2,500 MHz for Bluetooth 2.1 download
- -58 to 482°F (-50 to 250°C) temp range
- 0 to 100% RH range
The Mensor CPH7000 Process Calibrator is a precise, portable calibrator for the calibration and checking of analog pressure measuring instruments, pressure transmitters and process transmitters. Furthermore, pressure switches can be checked and the switching point determined. With the CPH7000, not only can transmitters be checked, but also simulated and tested.

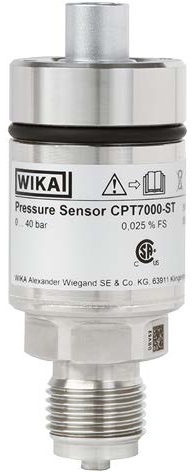

The CPH7000 optionally features an integrated reference pressure sensor and also a manual pressure generation, with which pressures of 12.3 to 360 psi (-0.85 to 25 bar) can be generated. It is possible to simultaneously power an external transmitter via the electrical module and to measure (or also simulate) its output signal.
The calibrator offers the possibility to set calibration routines quickly and easily, but also to run preconfigured calibration routines and automatically save the measured values. Over the WIKA-Wireless interface, the completed calibration processes can be transmitted to a PC. This data can subsequently be evaluated and archived using WIKA-Cal software. Thus a completely paperless transmitter calibration is possible with just the CPH7000.
Applications for the CPH7000 include:
- Calibration service companies and service industry
- Measurement and control laboratories
- Quality assurance
- On-site calibration
