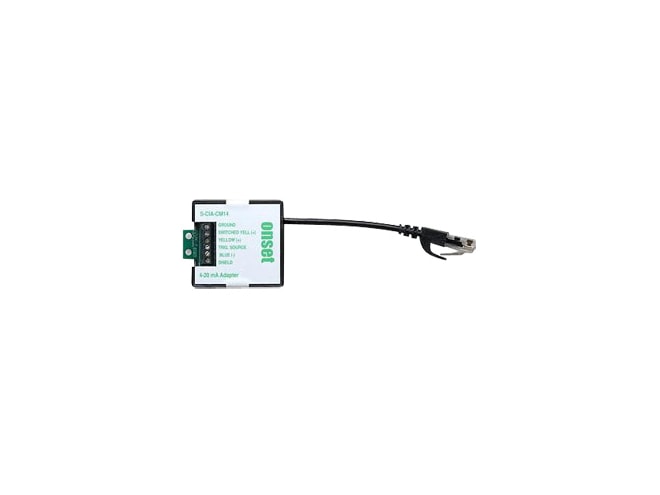

HOBO 4-20 mA Input Adapter Sensor
$85.00

4 in stock

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 12-bit resolution
  • Digital filtering improves measurement accuracy with 32 readings/sample—4-20 mA adapter has 60 Hz noise rejection
  • Measurement averaging over logging interval further enhances accuracy
  • Plug-in modular connector for easy interface with HOBO® Weather Station or HOBO® Micro Station data loggers
  • Screw terminal for connecting to sensors
  • Micro Station has room for two adapters and Weather Station has room for ten (adapters mount inside station enclosure)
  • Represents one data input channel

This product is an accessory for the following products:

HOBO H22-001 Energy Data Logger
Records up to 15 channels, 512K nonvolatile flash data storage, for energy and industrial monitoring applications
$364.00
HOBO RX3000 Remote Monitoring Station Data Logger
Cloud-based, 15-channel, multi-parameter data logger with plug-and-play convenience
$899.00
In Stock
HOBO RX3000 Remote Weather Station Starter Kit
Measures barometric pressure, leaf wetness, light intensity, rainfall, relative humidity, soil moisture, temperature, and wind
$1,999.00
HOBO U30-NRC Weather Station Starter Kit
Rugged data logging weather station with out-of-the-box convenience
$1,459.00
HOBO H21-002 Micro Station Data Logger
4-channel weatherproof station for monitoring outdoor environmental conditions
RETIRED
HOBO U30 Remote Monitoring Systems
Real-time access to data from any web browser, double weatherproof, tamperproof enclosure for harsh environments
RETIRED

The HOBO Input Adapter Sensor is a 12-bit 4-20 mA adapter that interfaces with any sensor providing a 4-20 mA signal to connect to smart sensor compatible data loggers. This adapter features both a non-switched input and a battery-saving switched input that extends the life of external batteries. It also provides a trigger signal for controlling power to attached external sensors, while offering digital filtering which improves measurement accuracy with 32 readings/sample and 60 Hz noise rejection.
