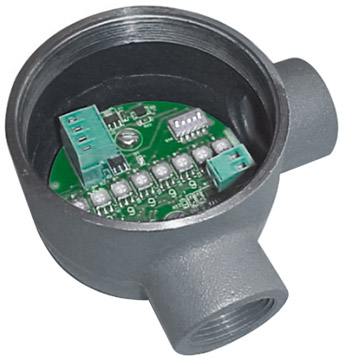

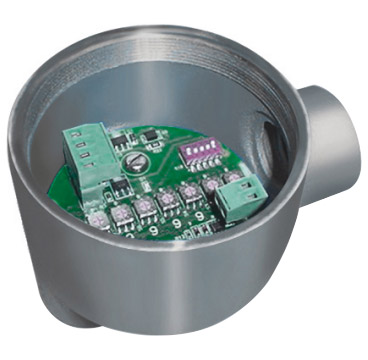

Blancett K-Factor Scaler Frequency Divider

Converts a low level frequency output into a scaled square wave digital output signal.

Features

  • Amplifies turbine meter pulse output
  • Switch-selectable or programmable versions available
  • Scales turbine meter output into engineering units
  • Converts frequency outputs into units for PLCs
  • 0 to 4000Hz frequency range
  • Selectable pulse length
    • 150μs, 1ms, 25ms, 100ms, 500ms, 1s, or auto mode
  • -22 to 158°F (-30 to 70°C) operating temp
  • CSA approved

The Blancett K-Factor Scaler is an adjustable frequency divider, it converts or scales the turbine meter output into units of measurement needed for a particular application and recognized by almost any data collection device. The k-factor scaler provides an amplified signal, even when a frequency conversion is not required. The signal is more immune to electrical noise and capable of transmission over longer distances than a raw turbine meter output.

Blancett K-Factor Scaler Software Package
Blancett K-Factor Scaler Software Package

Windows based software utility kit with PC serial port interface cable for K-Factor scaler model B220-885.

In Stock
$238.00
Part Number Style Price Available
B220-885
Show Full Configuration
Programmable Input in aluminum-capped elbow
 $309.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks. Call for expedite options". Click here to select options
