Starting at $975.00

Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • For tank inventory, level monitoring and control
  • ±0.25% of Range or 2mm (0.08in) accuracy
  • NEMA4X (IP67) polycarbonate enclosure
  • Isolated 4-20mA output (1000 ohm)
  • Programmable signal relay
  • Built-in 2-key calibrator
  • Self-testing
  • Large 4-digit LCD display
  • Relay for alarm or control
  • Automatic temperature compensation

What's in the Box

  • Level sensor
  • Coaxial sensor cable
  • Installation and operation manual
  • NIST certificate

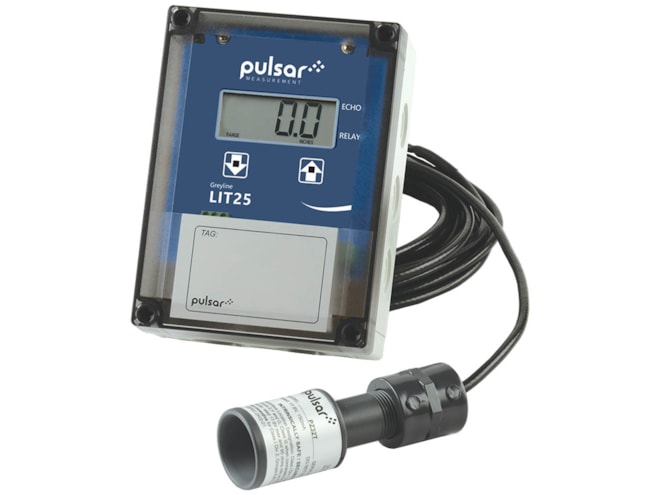

The Greyline Instruments LIT25 Level Transmitter is an economical instrument which accurately displays, controls and transmits level. The LIT25 is easy to install and operate. The non-contacting sensor mounts at the top of your tank while the watertight display enclosure can be mounted in a convenient location nearby. The simple 2-button keypad lets users calibrate the unit without having to climb into the tank.

When paired with the standard ultrasonic sensor, the LIT25 measures liquid levels up to 32ft (10m) with an accuracy of up to ±0.25% of range or 2 mm (0.08"), whichever is greater. The unit also includes automatic temperature compensation to increase the reliability of test results. A range of ultrasonic sensors, with different ranges and chemical compatibilities, are available to tailor the system you the needs of your application. All ultrasonic sensors are available with optional intrinsic safety for installation in hazardous rated locations. The LIT25 can also be ordered with gauge-type pressure sensors for special applications.

The Greyline Instruments LIT25 level transmitter has a 4-20mA output rated up to 1000 ohms. This output is isolated and ready for direct connection to your PLC or Controller. The built-in relay can be used for level control or an alarm.

Cables

Greyline Instruments XC Sensor Cable
RG62AU coaxial cable available in lengths up to 500 feet
$30.00
Greyline Instruments XCPT Sensor Cable
18AWG shielded cable for threaded pressure sensors, available in lengths up to 500 feet
$12.50
Greyline Instruments XCPS Sensor Cable
Extra cable for submersible pressure sensors, available in lengths up to 500 feet
$350.00

Sensors/Probes

Greyline Instruments PZ15-LP Level Sensor
Low profile, non-contacting ultrasonic level sensor ideal for confined spaces and small flumes
$425.00
Greyline Instruments PZ15 Level Sensor
Non-contacting ultrasonic level sensor is small enough for very small flumes and powerful enough for really large applications.
$425.00
Greyline Instruments PZ34 Level Sensor
Non-contact, PVC level sensor with 32 foot range with liquids
$550.00
Greyline Instruments PZ32T Level Sensor
Non-contact, PVC and Teflon level sensor with 32 foot range with liquids
$425.00
Greyline Instruments PZ32TE Level Sensor
Non-contact, Teflon level sensor with 32 foot range in liquids
$575.00
Greyline Instruments PS Series Pressure Sensors
Two wire, 4-20mA output, gauge type pressure sensor available in submersible or threaded models
$585.00

Accessories

Please consider these optional accessories.

Greyline Instruments JB2X Sensor Cable Junction Box
NEMA4X/IP66 polycarbonate junction box for extending sensor cable lengths
$45.00
Greyline Instruments JB Sensor Cable Junction Box
Junction box for extending pressure sensor cable lengths
$45.00

Applications

This product can be used in the following applications:
