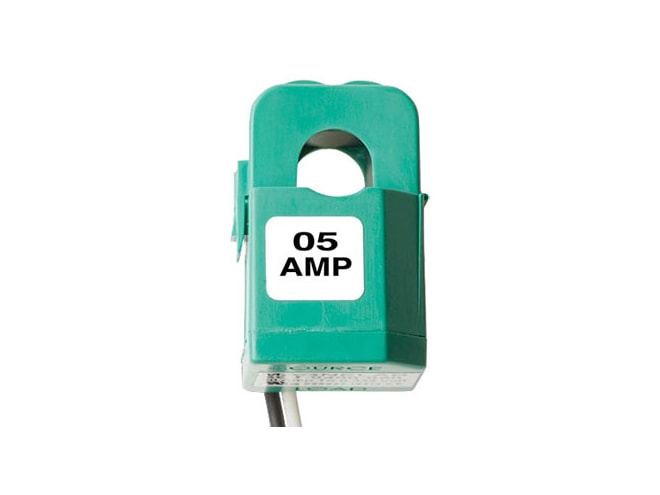

HOBO MAG-0400 Series AC Current Transformers
Starting at $35.00

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:00pm ET

Features

  • Input ranges:
    • 0.5 to 5A
    • 2 to 20A
    • 5 to 50A
    • 7.5 to 75A
  • Output 0.333 Volt AC at rated current
  • Linearity accuracy ± 1%
  • Accuracy at 10% to 130% of rated current
  • Split-core design for fast, easy installation
  • 8ft (2.44m) 24 AWG twisted pair leads
  • 0.40in (10.15mm) opening

This product is an accessory for the following products:

HOBO H22-001 Energy Data Logger
Records up to 15 channels, 512K nonvolatile flash data storage, for energy and industrial monitoring applications
$364.00
HOBO RX3000 Remote Monitoring Station Data Logger
Cloud based, 15 channel, multi-parameter data logger with plug-and-play convenience
$899.00
In Stock
HOBO RX3000 Remote Weather Station Starter Kit
Measures barometric pressure, leaf wetness, light intensity, rainfall, relative humidity, soil moisture, temperature, and wind
$1,999.00
HOBO U30 Remote Monitoring Systems
Real-time access to data from any web browser, double weatherproof, tamperproof enclosure for harsh environments
RETIRED

The HOBO MAG-0400 Series AC Current Transformers are mounted around a current carrying wire to measure AC amperage. These CTs provide a 0 to 0.333 Volt AC output proportional to current flow and is used with Onset loggers via the FlexSmart TRMS module and with kWh transducers (WattNodes) for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is an accurate current measurement for many types of electrical equipment.
