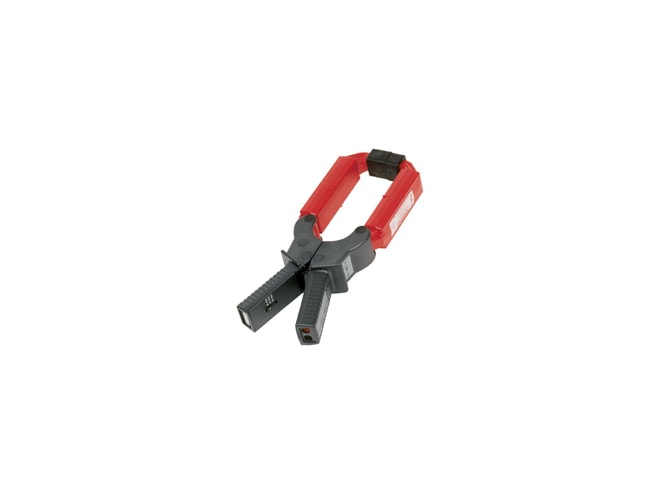

AEMC JM865A AC Current Probe
Nominal range: 1000A, 2000A, 3000A, Transformation ratio: 1000:5, 2000:5, 3000:5.
Overview
Features
- Nominal range: 1000A, 2000A, 3000A
- Transformation ratio: 1000:5, 2000:5, 3000:5
- Measurement range: 1 to 3600A
- Operating temp: 14 to 122°F (-10 to 50°C)
- Jaw opening: 3.54" (90mm)
- Output: 5mAAC/AAC, 2.5mAAC/AAC, 1.666mAAC/AAC
- Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
This product is an accessory for the following products:
Description
The Model JM865A is a high performance AC current probe for higher currents. Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current and power. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000AAC/2000AAC/3600AAC. The "squared" jaw permits multiple conductor or bus bar positioning. The Model JM865A provides excellent True RMS capabilities and reliable signal reproduction.
The Model JM865A first works as a traditional current transformer providing current outputs (mA) over a broad range of transformation ratios. The Model JM865A is designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges.
Applications include:
- Field testing
- Electrical utility
- HVAC
- Industrial maintenance
- Laboratory
- Plant maintenance
