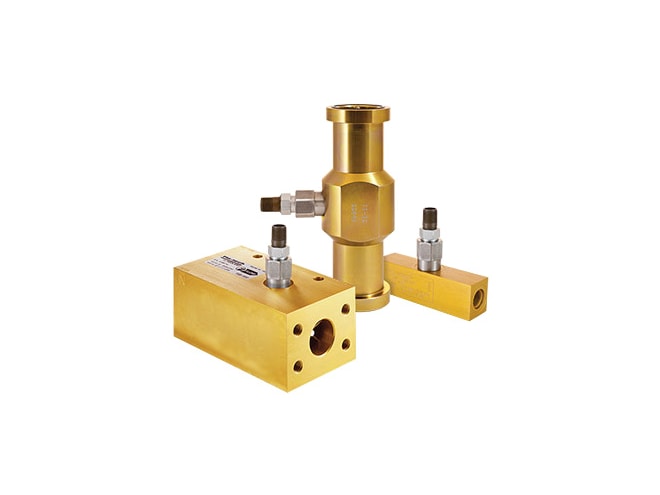

Flo-tech Classic Turbine Flow Sensor

Measures flow rate providing frequency or analog output, choice of high strength aluminum or Stressproof® steel bodies. Learn more...

Starting at $716.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • ±1% of full scale flow accuracy
  • ±0.2% repeatability
  • Pressures up to 6000 psi (414 bar)
  • Temperatures up to 300°F (150°C)
  • Optional IFC converter provides analog output

The Flo-tech classic turbine flow sensors measure the flow rate of hydraulic fluids and other compatible liquids. Offered in a choice of high strength anodized aluminum or Stressproof® steel bodies, these durable flow sensors are capable of withstanding pressures up to 6000 psi (414 bar).

The Classic series has standard magnetic pick-up, providing a frequency signal that is proportional to the flow rate and can be transmitted to Flo-tech's F6600/F6650 series digital displays. If an analog output is preferred, these sensors are also available with the IFC (Intelligent Frequency Converter) which offers either a 4 to 20mA or 0 to 5VDC output signal. This allows for easy integration with Flo-tech's F6700/F6750 series digital displays, PCs, PLCs, or other data acquisition devices.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Flo-tech Cables
Flo-tech Cables

Cables for connecting Flotech IFC, Activa, Ultima, Classic & Quad to displays, choice of 6, 15, 25, 30 or 50ft lengths.

Some Models in Stock
Starting at $99.00

Calibration

Flo-tech Calibration Certificate
Flo-tech Calibration Certificate

Five or ten point calibration certificate for the USB hydraulic system analyzer.

Starting at $447.69

Accessories

Please consider these optional accessories.

Flo-tech F6600 / F6650 Series Rate Counter Digital Display
Flo-tech F6600 / F6650 Series Rate Counter Digital Display

Accepts frequency signals from Flo-tech's Ultima & Classic turbine flow sensors, powered by either an AC or DC power source.

Starting at $672.00
Flo-tech F6700 / F6750 Series Digital Displays
Flo-tech F6700 / F6750 Series Digital Displays

Digital displays for Activa and Classic flow sensors with analog output & 4-20mA or 0-10VDC inputs.

Starting at $672.00
Flo-tech F5140 K Factor Scale
Flo-tech F5140 K Factor Scale

Pre-amplifier for low level turbine meters converts low level frequency outputs into square wave output signals.

$269.00
Flo-tech F5141 Programming Software Kit
Flo-tech F5141 Programming Software Kit

Makes the Flo-tech F5140 K Factor Scale field adjustable converting frequency output of a turbine meter to a different frequency.

$214.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Skydrol Dispensing Skid

The Background: Our customer is an engineering company that is designing a skid to be used for dispensing Skydrol, an aviation specific hydraulic fluid. They seek a simple mechanical flow sensor to measure the amount of Skydrol dispensed.

The Problem: Skydrol requires specialized equipment for metering. Meters must be calibrated specifically for Skydrol’s viscosity and the meter must have EPR seals as other seals are not compatible with the fluid.

The Solution: We recommended the Flo-tech classic turbine flow sensor which is designed specifically for hydraulic fluids. The Flo-tech Classic turbine is factory calibrated for the correct fluid density and viscosity so no additional customer field calibration is required. The factory was also able to accommodate a special request for EPR seals despite them not being offered as an option for this meter. Paired with a Flo-tech F6600 series display, this flow system is an out-of-the-box solution for anyone looking to measure hydraulic oils.
