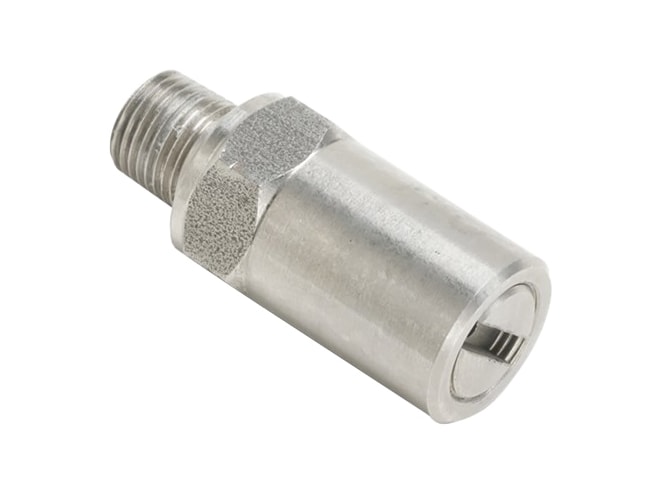

Fluke 700PRV-1 Pressure Relief Valve Kit
Relief valve, settable from 725 to 5800 PSI (50 to 200 bar) for use with the Fluke 700HTP-1 hydraulic test pump
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- 725 to 5800 PSI (50 to 200 bar)
- 1.52 in. x 0.62 in. diameter (38 mm x 16 mm)
- 303 stainless steel
This product is an accessory for the following products:
The Fluke 700PRV-1 pressure relief valve kit consists of a relief valve settable from 725 to 5800 PSI (50 to 200 bar) to be used with the 700HTP-1 Hydraulic Test Pump. The 1/8" NPT male thread to fits directly into the Fluke 700HTP-1 pressure pump.
The Fluke 700PRV-1 pressure relief valve kit uses a multi-turn adjustment screw to set preload on internal disc springs. This relief valve will protect the most commonly used Fluke pressure modules and pressure instruments from damage due to accidental over-pressurization.
With a repeatability of 10% of the nominal setting, the Fluke 700PRV-1 pressure relief valve kit is preset at 2,900 PSI (200 bar) and is adjustable from 725 to 5800 PSI (50 to 200 bar). One adjustable relief valve and an instruction sheet are included with this Fluke kit.
