$1,409.00 $1,338.55
  • PIE 211
  • 1 in stock

Overview

Features

  • Accuracy: ±(0.025% of Reading + 0.05 Ohms)
  • Temperature Drift: ±0.01% of span outside of 23°C ±10°C (73°C ±18°F)
  • Operating Temperature Range: -25 to 60°C (-10 to 140°F)
  • Relative Humidity Range:
    • 10% ≤ RH ≤ 90% (0 to 35°C), Non-condensing
    • 10% ≤ RH≤ 70% (35 to 60°C), Non-condensing
  • Size: L=5.63 x W=3.00 x H=1.60 inches
  • Batteries included

This is the recommended replacement for the following Altek Calibrators:

  • Altek 111 RTD Calibrator/Simulator
  • Altek 211 RTD Calibrator

What's in the Box

  • Rubber Boot
  • Four “AA” Alkaline batteries
  • Certificate of NIST Calibration (No data points)
  • Small Carrying Case with PIE Logo
  • Evolution RTD Wire Kit Part
  • 2 Red & 2 Black Leads with Retractable Shield Banana Plugs & Spade Lugs

Description

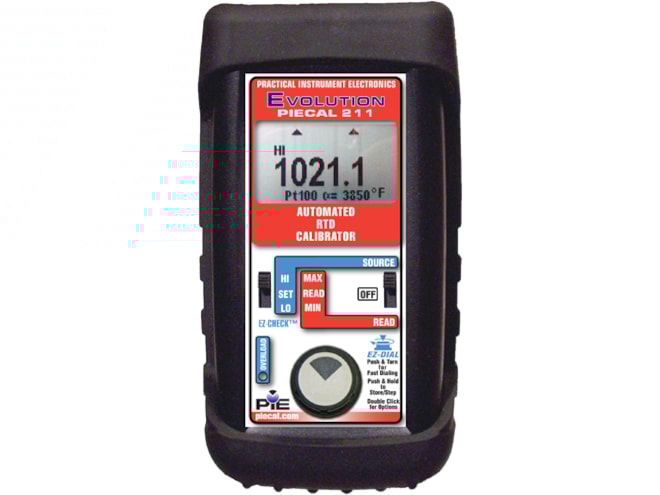

The Practical Instrument Electronics (PIE) 211 automated RTD calibrator can be used to check and calibrate all RTD instruments and measure RTD sensors with automatic indication of connections on the display for simple hookups. The PIE 211 comes with a rubber boot and a rugged, low-profile switch for protection and its backlit display makes it easy to use in poorly lit areas.

With the PIE 211 automated RTD calibrator, there's no need for a decade box and RTD resistance tables. PIE 211 calibrators work with many RTDs, including Platinum 100 (alpha = 3850, 3902, 3926) & 1000 (alpha = 3850, 3750), Copper 10 & 50Ω, Nickel 100 & 120Ω. You can quickly set any value to within 0.1° with the adjustable digital potentiometer dial, plus store any three temperatures for instant recall.

Another feature of the PIE 211 automated RTD calibrator is the automatic output stepping. Choose between 2, 3, 5, 11 and 21 steps to automatically increment the output in 100%, 50%, 25%, 10% or 5% of span. Select the step time to match your system from 5, 6, 7, 8, 10, 15, 20, 25, 30 and 60 seconds. Lastly, you can troubleshoot sensor connections by connecting two, three or four wire RTDs and the PIE 211 will automatically detect the connection and measure the RTD.

The PIE 211 is manufactured in the USA and ships complete with rubber boot, four "AA" alkaline batteries, certificate of calibration, small carrying case, and evolution wire kit.

Applications

This product can be used in the following applications:

Here's how some of our customers use this product...

Testing RTD and Temperature Controllers in Brewery Application

The Background: Our customer is a microbrewery that uses a range of RTDs with temperature controllers and chart recorders to control and monitor their process. They seek a simple and reliable means of calibrating their RTDs, recorders and controllers.

The Problem: Brewing us an exact science that relies on precision temperature control. Even small variations from the desired temperature can ruin a production run.

The Solution: We recommended the PIE 211 RTD Calibrator which is designed to replace the not-so-intuitive decade resistor boxes typically used for this application. The Pie 211 can be used to check and calibrate all RTD instruments and measure RTD sensors with automatic indication of connections on the display for simple hookups.
