Honeywell 301C Gas Controller
Starting at $1,419.50

Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call a Temperature Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Manage up to 180 events
    • With programmable latching alarms
  • Automatic quick self-test and warm-up
  • 24V AC/DC power input
  • All models include 4 DPDT mechanical relays
  • Data logging optional

This product is an accessory for the following products:

Honeywell E3Point Gas Monitor
Versatile toxic and combustible gas detector with flexible configuration options and multiple communications protocols
$360.00
In Stock
Honeywell Sensepoint XCD Gas Detector
Monitors flammable, toxic and oxygen gas hazards in potentially explosive atmospheres
$909.00
Honeywell Sensepoint XCL Gas Detector
Fixed point gas leak detector that is designed to meet the needs of commercial and light industrial applications
$433.50
Honeywell XNX Universal Gas Transmitter
Universal gas transmitter supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs
$728.00

The Honeywell 301C digital gas detection controller acts as the nerve center of a modular gas detection network and provides continuous monitoring of up to 96 inputs/outputs, on 3 distinct channels, at distances of up to 2,000 feet. Once installed, this highly customizable and powerful tool provides around the clock protection identifying hazards and triggering appropriate actions such as ventilation activation.

The 301C controller offers two output options; Modbus and BACnet/IP providing flexibility and easy installation. The ModBus RS-485 output allows a daisy-chain connection of detectors, using only two-pair wiring.

Honeywell 301-R8 Relay Module
Relay module with 8 relays for your 301C gas controller, failsafe optional
$431.00
Honeywell 301-ADI Input Converter
Analog digital input converter (4-20mA to Modbus RS-485) for your 301C gas controller
$1,286.50
Honeywell 301AP Annunciator Panel
Annunciator panel for your 301C gas controller
$751.50

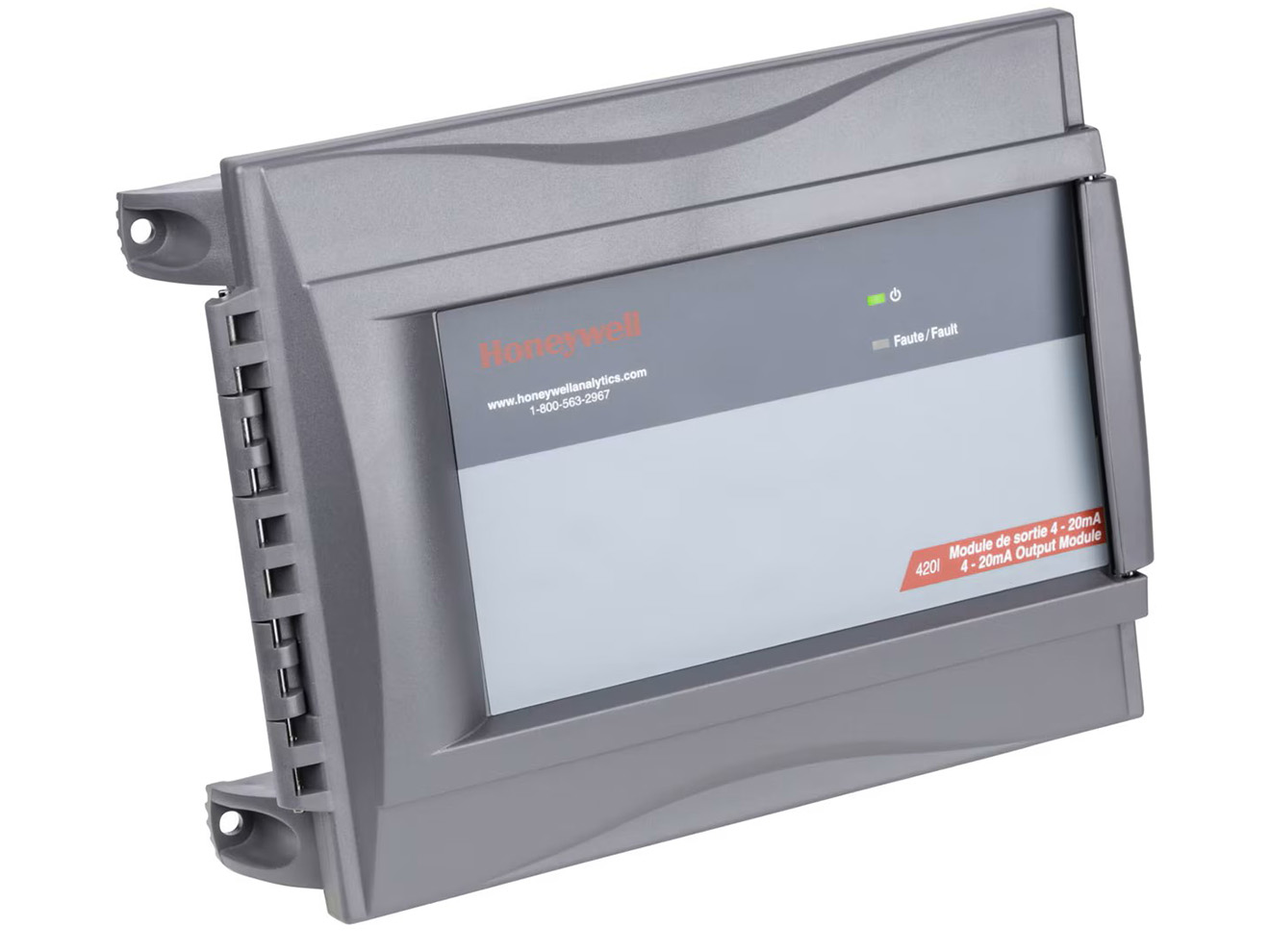

Honeywell 420I Output Converter
Digital analog output converter, Modbus RS-485 to 4-20mA for your 301C gas controller
$716.50

Application Notes

Here's how some of our customers used this product.

Monitoring Carbon Monoxide in a Parking Garage

The Background: Our customer is a golf course that utilizes a parking garage for their customers. The seek a reliable means of monitoring carbon monoxide inside the garage which can trigger ventilation fans or alarms, if levels reach a certain threshold.

The Problem: Parking garages can trap high levels of carbon monoxide that is produced from running car engines. Failure to control these levels is a health and safety concern. Our customer wants a monitoring system that is redundant. When CO levels reach a certain threshold the system will activate ventilation fans. If the fans can’t adequately remove the CO and levels creep higher to another threshold, an alarm will notify the local fire department who can take action before the situation become dangerous.

The Solution: We recommended the Honeywell E3Point gas detector with a Honeywell 301C gas controller due to ease of use and local and consolidated alarm capabilities this system would have. The local relay output at each E3Point monitor is used to trigger the local ventilation system and the 301C is used to alert the fire department if any of the CO monitors in the network go above the threshold.
