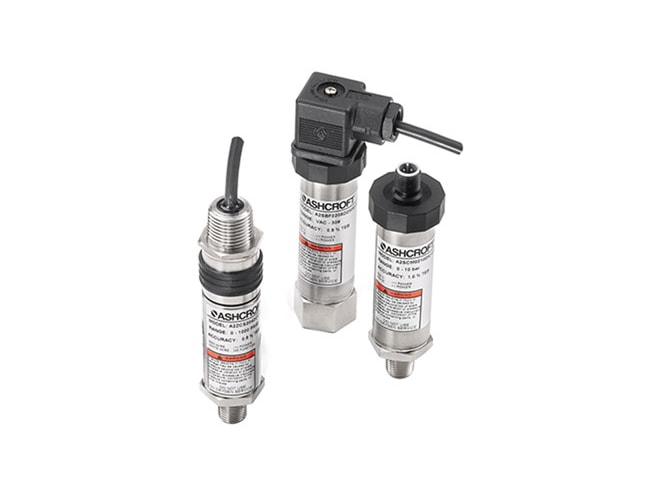

Ashcroft A2 Heavy Industrial Pressure Transmitter
Starting at $431.96

Some models in stock. View available part numbers.

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Choice of 0.25, 0.50 or 1.0% accuracy
  • Pressure ranges from -15 psi through 10,000 psi
  • Temperature range: -20 to 85°C
  • CE mark is standard
  • 17-4 pH and 316L SS diaphragm materials available
  • 304 SS case in standard or welded construction
  • Six output signals to choose from
  • Optional absolute pressure ranges available
  • Available externally adjustable zero and span access

The Ashcroft A2 heavy industrial pressure transmitter is a durable instrument that provides considerable specification flexibility in terms of performance, construction, and optional features. Specify a base unit from a broad choice of standard ranges, process connections, output signals and electrical terminations, or customize the transmitter from a long list of optional features and construction variables.

The Ashcroft A2 is designed and manufactured to provide the user with accurate, reliable, and stable output data. This is accomplished through the use of an on board microprocessor, that is programmed during a unique digital compensation process, to provide extremely linear and precise performance over the entire specified pressure and temperature range.

Specific features of the Ashcroft A2 heavy industrial pressure transmitter include pressure ranges from 5 psi through 10,000 psi, a 304 stainless steel case, and six standard output signals.

Ashcroft Type 330 Diaphragm Seal
All welded flush mini diaphragm seal, metal construction prevents process media leakage, 1in process connection, 316L SS material
$173.98
Ashcroft Type 320 Diaphragm Seal
Quick connect 316L stainless steel diaphragm welded to a 316L stainless steel top housing, fill/bleed connection
$227.68
Ashcroft Type 100 Series Diaphragm Seals
Threaded capsule diaphragm seal, the top housing & diaphragm capsule are interchangeable with all Ashcroft bottom housings
$296.40
Ashcroft Type 310/315 Diaphragm Seals
All-welded mini diaphragm seals for protecting transducers 3.5in or smaller from corrosion, plugging & freeze-up
$92.12
In Stock
Ashcroft Type 200 Series Diaphragm Seals
Process connection ranging from 1/4 to 8in, fill/bleed connection is standard, includes removable top housing
$216.83
Ashcroft Type 700 Series Diaphragm Seals
For pressure instruments ranging from 30 inches H2O to 750 psi with large displacement actuators
$527.06
Ashcroft Type 510 / 511 Diaphragm Seals
All welded compact design with 316L SS housing material, adds 1/2 accuracy to the instrument it's attached to
$314.78
Ashcroft Type 300 Series Diaphragm Seal
Clamped diaphragm seals with an elastomeric or Teflon diaphragm between top & bottom housing with clamp rings
$305.60
Ashcroft Pulsation Dampener
Brass, steel, or stainless steel material options & 1/4 or 1/2 NPT connection options
$67.06
Ashcroft Pressure Snubber
Brass, stainless steel, or monel material options with 1/4 or 1/2 NPT connection options
$55.84
Ashcroft Siphons
Pig tail or coil pipe styles, iron, brass, or stainless steel materials
$23.76
Ashcroft V01 Gauge Valve
Isolates process from instrument assembly, 316L stainless steel construction, 6,000 psi max pressure
$101.76
Ashcroft V01 Block and Bleed 2-Valve Manifold
Isolates and bleeds the process from instrument assembly, 316L stainless steel construction
$133.90
Ashcroft V02 Block and Bleed 2-Valve Manifold
Isolates and bleeds the process from instrument assembly, 316L stainless steel construction
$189.26
Ashcroft V01 3 Valve Manifold
Isolates each port and equalize pressure for instrument maintenance, 316L stainless steel construction
$187.46
Ashcroft V01 5 Valve Manifold
Isolate and bleed the process for each port as well as equalize pressure for instrument maintenance
$267.80
Ashcroft V02 Direct & Remote Mount Three-Valve Manifolds
Isolates each port and equalizes pressure for instrument maintenance, 316L stainless steel construction
$278.51
Ashcroft V03 3 Valve Manifold
3-valve manifolds isolate each port and equalize pressure for instrument maintenance
$187.46
Ashcroft V02 Direct & Remote Mount 5 Valve Manifold
5-valve manifolds isolate and bleed the process for each port as well as equalize pressure for instrument maintenance
$519.48
Ashcroft 2198 MicroTube Siphon
Protection for pressure instruments from elevated temperatures, 800°F max temperature, 5000 psi max pressure
$258.29
Ashcroft 1198 Finned Siphon
Protection for pressure instruments from elevated temperatures, 700°F max temperature, 3000 psi max pressure
$258.29
Ashcroft V02 Low Pressure Ball Valve
Floating ball design provides bi-directional isolation, anti-blowout stem design, 1000 psi max pressure rating
$48.20
Ashcroft V02 High Pressure Ball Valve
Floating ball design provides bi-directional isolation, anti-blowout stem design, 6092 psi max pressure
$332.07
Ashcroft V02 Multiport Valve
Isolates process from instrument assembly, 316L stainless steel construction
$252.80
Ashcroft 1092 / 1094 / 1095 Gauge Cock
Ideal where process protection is essential
$16.46
Part Number Price Available
A2SAM0242D0100#G
Show Configuration
Base Price
$431.96
Pressure Type
psig
Pressure Range
0 psig to 100 psig
Pressure Fitting
1/4" NPT Male
Enclosure Requirement
Basic Enclosure
Electrical Connector
Hirschmann DIN 43 650A
Mating Connector / Cable Length
With Mating Connector (No Cable) (+$22.56)
Accuracy
0.25% Accuracy (+$60.62)
Output
4-20mA Output
Pressure Sensor
Gauge Pressure Sensor
Options
None
Reconfigure
$515.14 3

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6 weeks". Click here to select options
