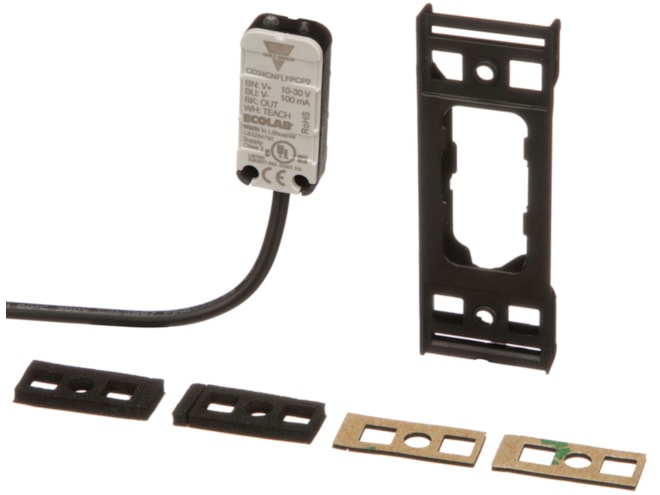

Carlo Gavazzi CD34 Capacitive Sensor

Detects level of water-based fluids inside a container or tube without direct contact.

Starting at $130.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 16-18 weeks
Product Manual Product Specs

Features

  • 10 to 30VDC Supply voltage
  • 100mA, NPN or PNP preset outputs
  • Make or break switching function
  • LED indication for output and power ON
  • Reverse polarity, short circuit and transients protection
  • Cable and pigtail M8 plug versions
  • IP65, IP66, IP67, IP68 and IP69K ratings
  • Ecolab approval

The Carlo Gavazzi CD34 capacitive sensor is designed for detecting water-based (conductive) liquids through a non-metallic container wall with automatic thickness adaption of plastic or glass. The sensor will compensate for residue film, moisture or foam build-up. The universal mounting brackets allow the sensor to be fixed on various types tubes or containers. The compact housing features durable construction, IP69K rating and ECOLAB approval for wash-down applications.

The CD34 will function out of the box for most applications, and additional capabilities are available for adapting the sensor to more specific and challenging applications.

Carlo Gavazzi CD34 Mounting Bracket
Carlo Gavazzi CD34 Mounting Bracket

Replacement mounting bracket for the CD34 capacitive level sensor.

$8.00
