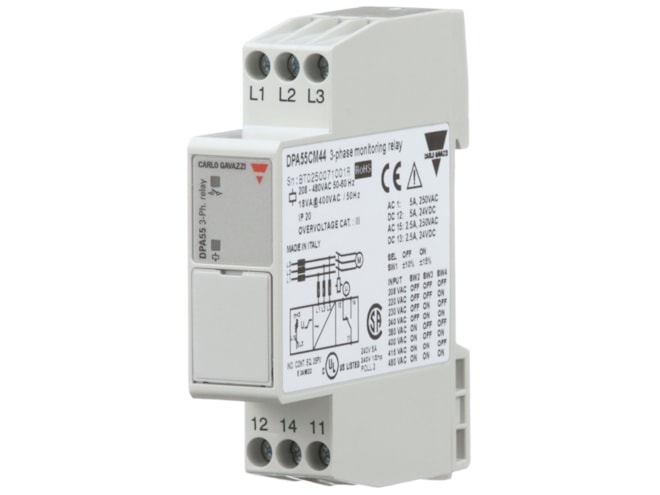

Carlo Gavazzi DPA55 Monitoring Relay

3-phase monitoring relays for phase sequence and phase loss with nominal voltage selection.

$185.00

View Company Reviews
Part Number
  • DPA55CM44
Manufactured
Includes
Availability
  • Usually ships in 10-12 weeks
Product Specs

Features

  • Detects when all three phases are present and in proper sequence
  • Detects if voltage is at the desired level (± 10% or ±15%)
  • Measures its own power supply
  • 208 to 240VAC power supply range
  • 5A SPDT relay output normally energized
  • 17.5mm DIN-rail housing (DIN 43880)
  • LED indication for power supply, output relay and ON

The Carlo Gavazzi DPA55 monitoring relay is a three-phase monitoring relay used for detection of incorrect phase sequence, and total or partial phase loss while also detecting if the voltage is at a desired level (±10% or ±15%) as set by the user. The monitoring range of 380 to 480 VAC is covered by two multi-voltage relays. The relay operates when all the phases are present, the phase sequence is correct and each phase-phase voltage is within the desired tolerance. The relay releases when one phase-phase voltage drops below the setpoint or when the phase sequence is incorrect. The DPA55 is DIN-rail mountable, and the 17.5mm housing is suitable for either back or front panel mounting.

Carlo Gavazzi DPA55 Monitoring Relay Applications

  • Elevators and escalators
  • HVAC and refrigeration
  • Water and wastewater
  • Plastics and rubber
  • Food and beverage
  • Packaging and wrapping
  • Material handling and conveyors
